Ozone Solutions HVAC-2200 Operation, Installation And Maintenance Instructions

Operation, Installation, and Maintenance Instructions
CAUTION, THIS OZONE GENERATOR PRODUCES DANGEROUS ULTRAVIOLET LIGHT,
SPECIFICATIONS FOR HVAC-2200 SERIES ozone generator
Maximum output
Cabinet material
Generation method
Weight
Size
INTRODUCTION
This line is designed to be installed into an HVAC duct system. The ideal mounting location is into a main supply
plenum, meaning that the produced ozone is being moved away from the HVAC system and going into the space(s)
that this network of ducting is feeding.
WARRANTY
This ozone generator is warranted against defects in materials and workmanship for a period of four years from date
of purchase. Liability is limited to parts and labor only. Shipping is the sole responsibility the customer. OZSL is not
liable for damage caused by shipping, misuse, neglect or lack of regular maintenance.
LIABILITY
OZSL assumes no responsibility for any damage done to items from the use or miss use of any product sold or
manufactured by Ozone Solutions. It is the customer's responsibility to test materials prior to use and to ensure that
the procedure and installation technique they are using is correct for the application.
HEALTH AND SAFETY
Ozone can be an irritant and a powerful oxidizing agent. As with most all products, ozone is dangerous only when
used improperly, as such it is important to follow safe usage guide lines.
*When doing a shock treatment, no people, pets or plants should be in the room while the machine is running.
The room should not be re-entered until all ozone has been depleted unless proper breathing respirators are used.
MAINTENANCE FREQUENCY
Under heavy duty use f your HVAC filters are kept clean (replaced when needed) the maintenance to clean the UV
bulbs will be minimal. To know when to clean the bulb(s), refer to the instructions below.
DESCRIPTION OF OZONE GENERATOR
These ozone generators produce ozone by UV light, converting normal oxygen to ozone gas which is a very strong
oxidizing agent used to destroy odors and other organic contaminants.
PLACEMENT OF UNIT
This ozone generator is designed to be installed in the return or output side of an air handling system. It is however
recommended to install it in the return side before the filter if possible, placement before the filter will increase the
efficiency of the filter. It uses 100VAC - 240VAC desktop power adapter for North America and for European coun-
tries. European customers will have to supply the proper IEC power cord (this can be acquired at any computer
shop).
Please note the following points when placing the unit.
-Place in a spot in the duct that allows the removal of the UV tube without removing the entire tube mount.
-If you wish to treat the entire area heated or cooled it is important to place the tube in the return duct, if treatment of
only one duct is required/preferred then install the tube mount in that duct.
-Ensure that the unit gets proper fresh air flow and is not blocked by anything inside the duct.
Ozone Solutions

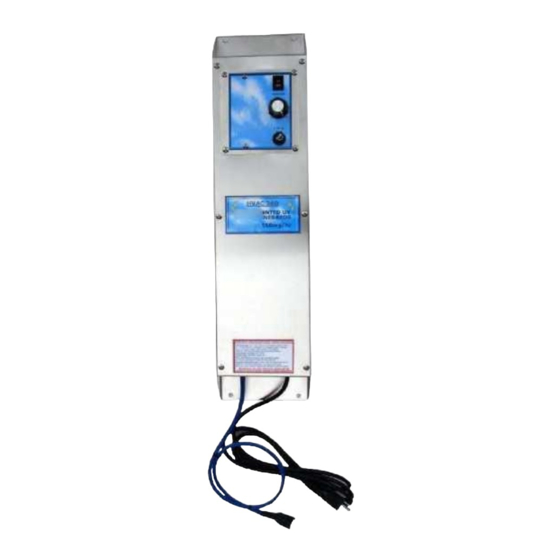

HVAC-2200
IMPORTANT!!!!!
1. Read instructions thoroughly before operating!!
DISCONNECT POWER BEFORE OPENING TO SERVICE
HVAC-2200 = 2200 mg/hr
Stainless steel
Ultra Violet Light
4lb
Control Box: 6.75" W x 5.5" H x 4.25 D tube mount (w/ 4 tubes 5.5"x5.5"x15.75" long)
HVAC-2200
712-439-6880 www.ozonesolutions.com
