01SHPCHEST
Please retain product label (Attached to your label) for reference with all future contact.
PLEASE READ INSTRUCTIONS CAREFULLY.
For Assistance Please Contact Customer Care on
Retain Instructions for future reference
x2
This building should be
erected by two people.
Drill
2mm bit
For ease of assembly, it is
advisable to pilot drill all
screw holes and ensure all
screw heads are countersunk.
WINTER = HIGH MOISTURE = EXPANSION
SUMMER = LOW MOISTURE = CONTRACTION
Before you start...
All buildings including the underside of the floor must be treated with a good quality waterproof
preservative or treatment prior to or during assembly, and retreated annually.
Preservative/treatments are available in a choice of colours and is left to the customers preference.
NATURAL MOVEMENT OF TIMBER THROUGHOUT THE SEASON
Timber is a natural material and will, during the year pick up moisture in damp periods and dry out during hot spells. There will be constant expansion
and contraction of the timbers which will be particularly noticeable during the dry periods as the boards will shrink, this is why all buildings have
slight tolerances built into them.
BUILDING A BASE
When thinking about where the building and base is going to be constructed: Ensure that there will be access to all sides for maintenance work and
annual treatment.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured at Walton Garden Buildings Limited are made to the highest standards of Safety and in the case of
childrens products independently tested to EN71 level, Walton Garden Buildings Limited cannot accept responsibility for your safety whilst
erecting or using this product.
01636880514
Dimensions
Depth = 773mm
Width = 1224mm
Height = 950mm

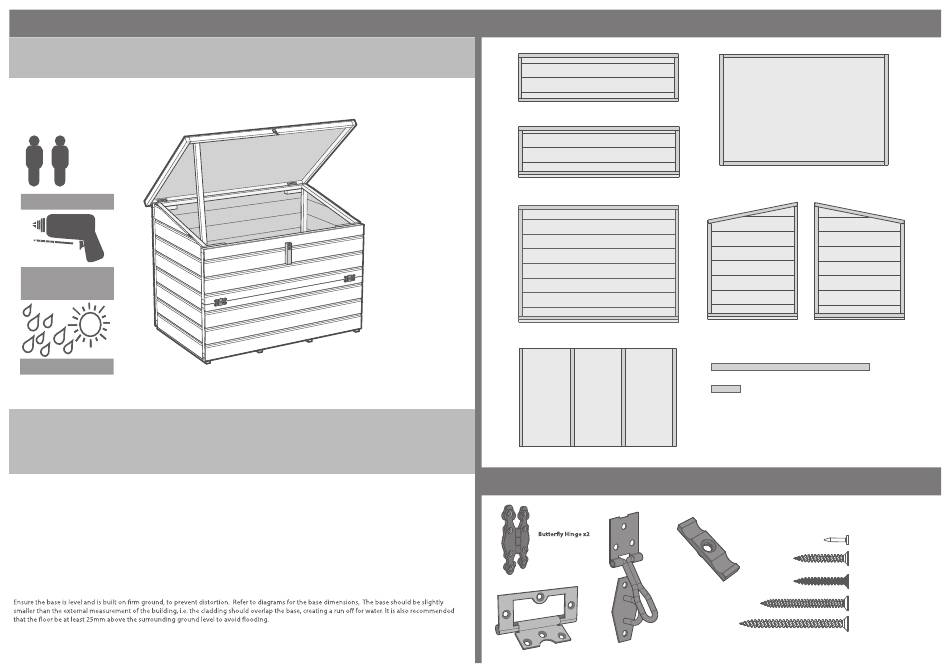

CONTENTS
Front Top Panel
Front Panel
Back Panel
Floor Panel
Nail Bag & Ironmongery
Hasp & Staple
Flush Hinge x2
Lid
Left Side Panel
Right Side Panel
Lid Support - 660mm
5x Fixing Block -140mm
10mm Felt Tacks x20
Turn Key x2
30mm Screw x15
30mm Black Screws x25
40mm Screw x15
50mm Screw x25
Advertisement
Related Manuals for Mercia Garden Products 01SHPCHEST
Summary of Contents for Mercia Garden Products 01SHPCHEST
- Page 1 01SHPCHEST CONTENTS Please retain product label (Attached to your label) for reference with all future contact. PLEASE READ INSTRUCTIONS CAREFULLY. 01636880514 For Assistance Please Contact Customer Care on Retain Instructions for future reference Front Top Panel Front Panel This building should be erected by two people.
- Page 2 Assembly Fix the Front panel to 6 x 50mm screws Remove transportation side panels using 2x 4 x 40mm screws blocks from the bottom of 50mm screws per side. each panel before beginning assembly. Each Panel should Then Secure to oor have two blocks.
- Page 3 Fix 2x Flush hinge to inside Attach Hasp to the center 3 x 30mm black screws framing of lid using 3x front of the lid using 3x 1 x 50mm screw 30mm screws. 30mm black screws. Ensure hinge is Fix the Lid Support frame facing the correct to either side panel using 1 way (see illustration).
