Pattern And Matte/Wash Generators; Ultrachrome - Ross Graphite Operation Manual

There are 2 broadcast-quality integrated MultiViewer
generators in the switcher subsystem. The MultiViewer
outputs are only available on out BNCs 5 and 6, and the
HDMI outputs.

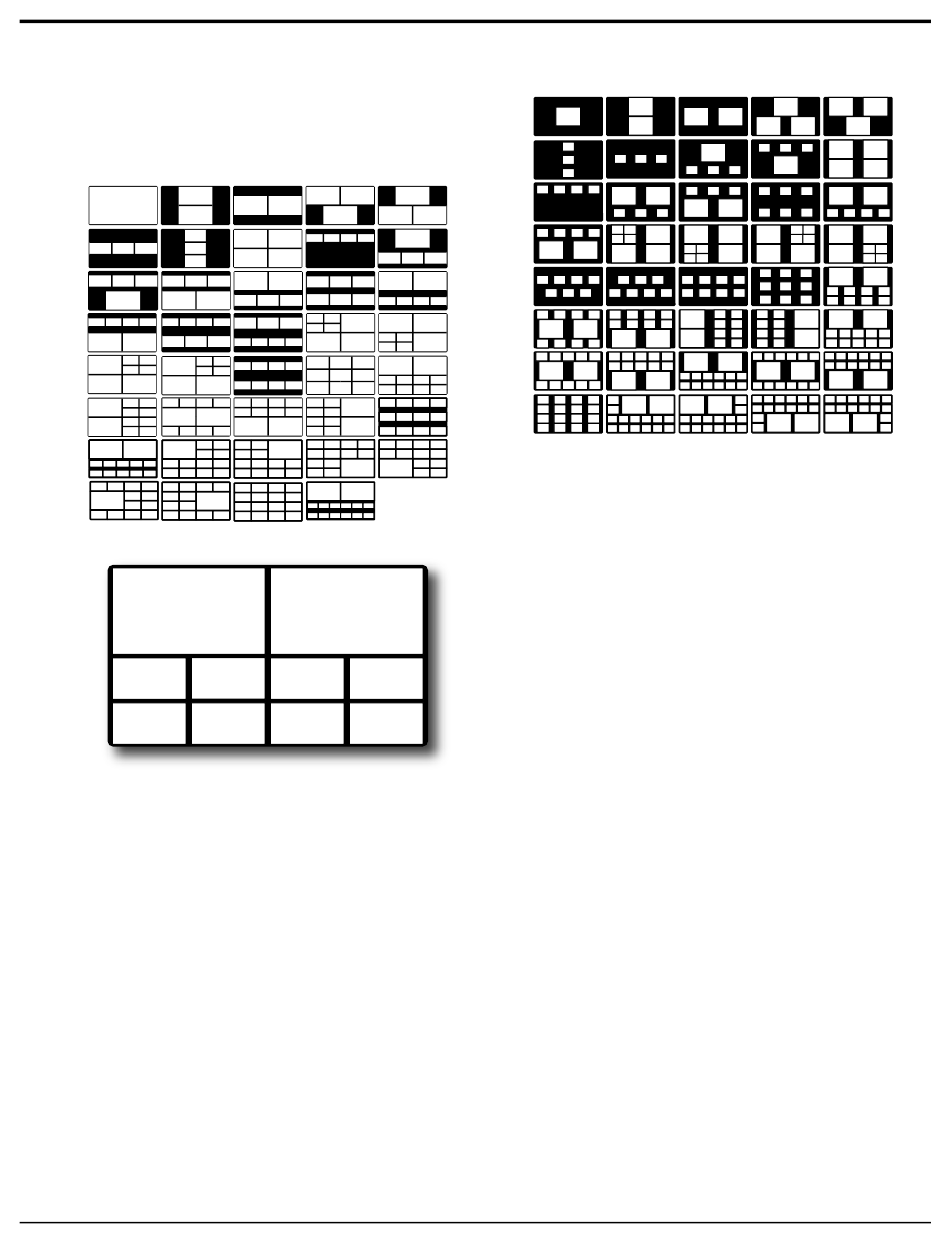

Figure 1: HD Layouts (not including ViewControl layouts)
Figure 2: MultiViewer Grid
If the switcher is operating in a standard-definition video
format, the MultiViewer can be set to output
high-definition.
Figure 3: HD in SD Layouts (480i 4:3)

Pattern and Matte/Wash Generators

A single pattern generator dedicated to wipes comes
standard, and is equipped with 10 classic wipes. Most
wipes can be rotated, bordered, multiplied, aspectized,
and repositioned.

UltraChrome

The UltraChrome chroma keyers uses advanced video
processing technology to provide exceptional blue spill
reduction and clean edges, even with difficult source
material. Glass, smoke, translucent materials, and natural
shadows are handled superbly.
There are 2 floating Chroma Keys that are available
across all MEs.
Graphite Operation Manual (v1.1) — Features • 9
