Ross MC1-MK Quick Start Manual

The Digital Alert Systems Dasdec-2 connects to the MC1-MK via serial RS-232 or the Comtrol®
DeviceMaster® over Ethernet. For information on configuring a Comtrol DeviceMaster, refer to the
openGear DeviceMaster Setup Sheet (Ross Part Number: MC1MKDR-100).
The Digital Alert Systems Dasdec-2 requires the following connections to the MC1-MK:
1. Communications connection (Serial or TCP/IP via Comtrol DeviceMaster) to provide EAS crawl text.
2. EAS Voice Over connection using an GPI to the MC1-MK.
3. Analog or AES audio connection to provide alert tones and/or TTS.
Overview
Figure 1 outlines the required physical connections.
1. Connect the Comtrol DeviceMaster to your facility network.
2. Connect the Serial port on the Comtrol DeviceMaster to the Serial port on the Digital Alert Systems
Dasdec-2.
3. Connect the audio output from the Digital Alert Systems Dasdec-2 to an audio port on the
MUX-8258. Note that Figure 1 shows an MUX-8258-C.
4. Connect a GPIO port on the MC1-MK to the Digital Alert Systems Dasdec-2.
5. Connect the key alpha video source to the SDI IN BNC on the MUX-8258.
6. Connect the SDI OUT BNC on the MUX-8258 to the KEY ALPHA IN BNC on the MC1-MK.
8922DR-211-01
© 2022 Ross Video Limited. Ross® and any related marks are trademarks or registered trademarks of Ross Video Ltd. All other trademarks are the property of their re-
spective companies. PATENTS ISSUED and PENDING. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, mechanical, photocopying, recording or otherwise, without the prior written permission of Ross Video. While every precaution has been taken
in the preparation of this document, Ross Video assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use
of the information contained herein.
10/100 NETWORK
SERIAL SERIAL
2
DOWN UP
2
1
AES
AUDIO
SERIAL
3
PS2
ETHERNET

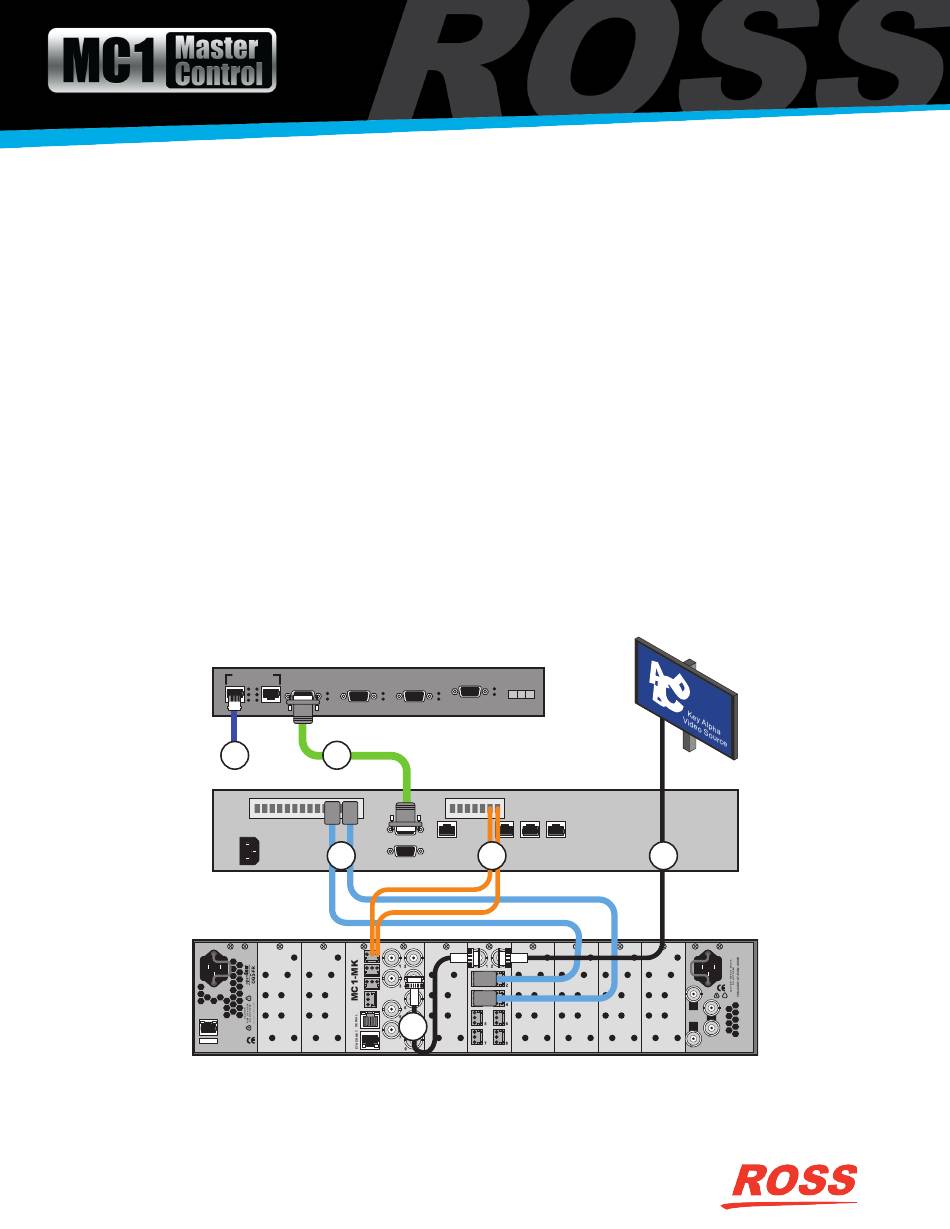

Figure 1 MC1-MK to Digital Alert Systems Dasdec-2 Example Cabling Setup
For Setting up with a Digital Alert Systems Dasdec-2
Comtrol DeviceMaster
SERIAL
SERIAL
1 4 2
PWR
3
4
Comtrol DeviceMaster
6
MUX-8258-B
MC1-MK Application Note
Digital Alert Systems Dasdec-2
5
OG3-FR Series Frame
PS1
!
REF 1
LOOP
REF 2
LOOP
