tempmate S1 Manual

Manual –
Single-Use USB Data Logger
Waterproof Cover
Serial Number Label
LED Indicators
Start/Stop Instructions
Status Request

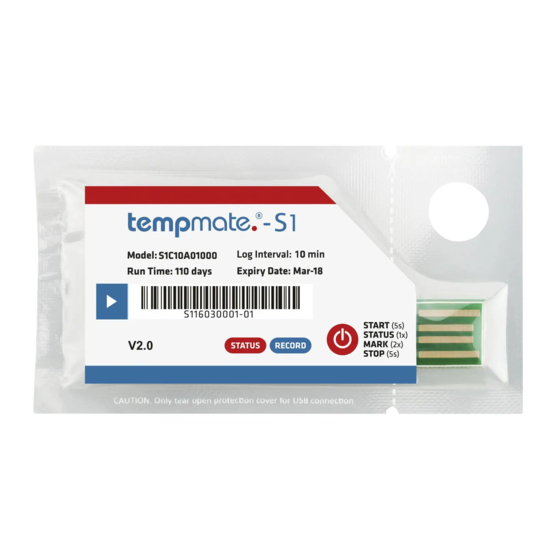

Product Overview
This document describes the correct handling process for tempmate.®-S1 data loggers, for the purpose to ensure the
proper operation and provide a reliable temperature and time record during transportation and storage.
• Technical Specifications
Recording Options
Temperature Range
Temperature Accuracy
Temperature Resolution
Data Storage Capacity
Shelf Life / Battery
Recording Interval
Recording Duration
Startup Mode
Stop Mode
Protection Class
• tempmate.com
Single-Use
–30 °C to 70 °C
±0.2°C (0°C/+60°C); ±0.5°C (others)
0.1 °C
31.200 readings
2 years / CR2450 button cell
1
10 minutes (standard)
200 days
Button or preprogrammed scheduled start
Button or preprogrammed scheduled start
IP67 / NEMA 6
-S1
Weight
15.2 g
Dimensions
88 mm × 47 mm × 8 mm (L × W × H)
According to EN 12830,according to FCC and
Certifications
CE, RoHS
Validation Certificate
PDF file in memory and online database
PDF or CSV program
Software
Optional: Cloud Ready with the
tempmate.®-Cloud
Report Generation
Automatic PDF & CSV report
Connection Interface
USB 2.0, A-Type
Alarm Configuration
Optional, up to 6 points
1 Depending on optimal storage conditions (+15°C to +23°C / 45% to 75% rH)
Product Configuration
Information
Expiry Date
USB Interface
Start/Stop + Status/Mark Button
Front
Mark Instructions
Glue Spot
Back
V1.0
