6. Using the black woven poly strapping, support the acoustic
i
attic fram ng as shown. Fold each end over a large washer 2-3 times and fasten to the framing by driving the
supplied 1" drywall screws or other appropriate fasteners through the washer and into the framing.
The strapping may be cut to length with ordinary scissors if
7. Replace the insulation around and over the damper assembly. Additional insulation may be added to further
reduce heat transfer and fan noised from the attic to the living space.

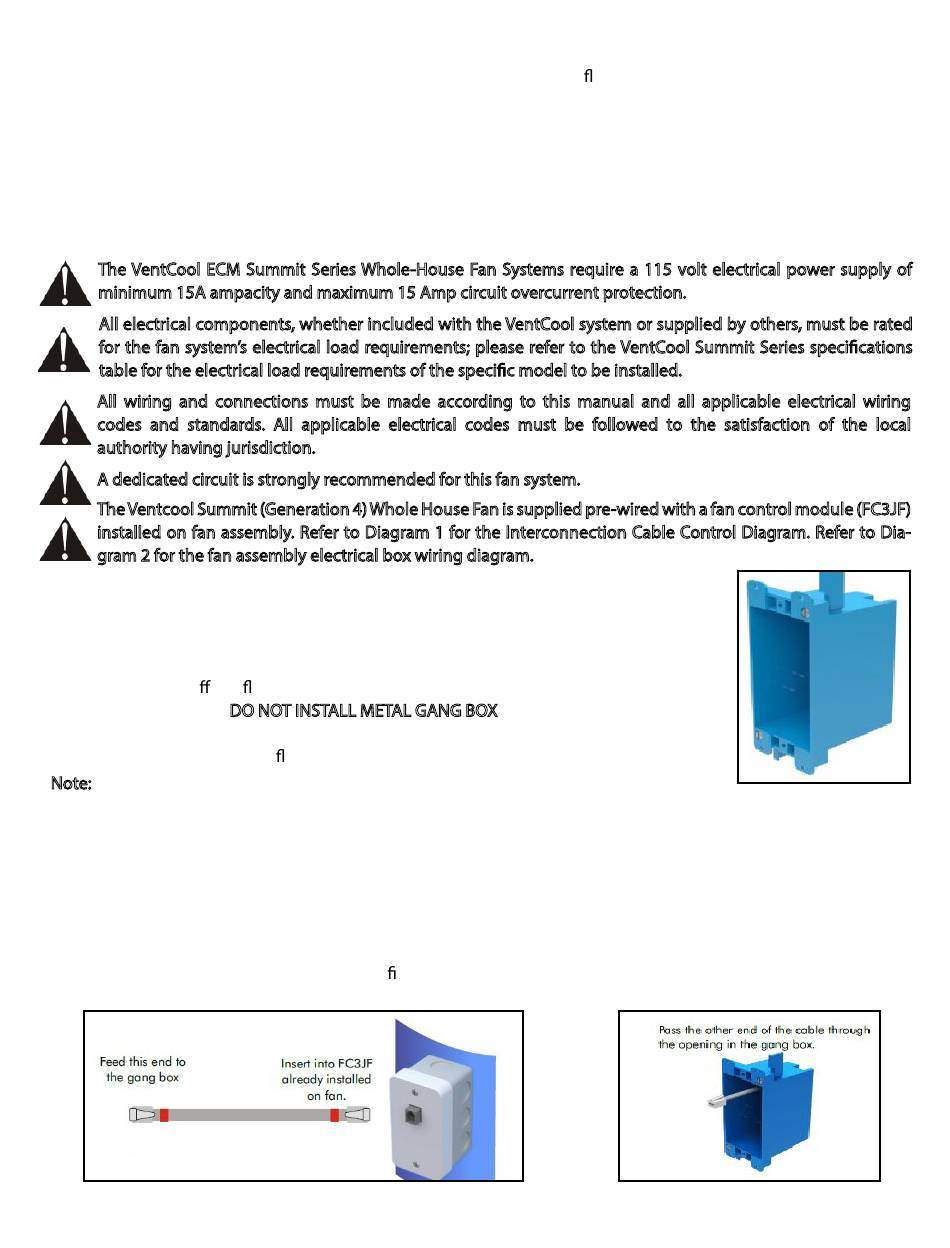

INSTALLATION: WIRING & CONTROLS
The VentCool ECM Summit Series Whole-House Fan Systems require a 115 volt electrical power supply of
minimum 15A ampacity and maximum 15 Amp circuit overcurrent protection.
All electrical components, whether included with the VentCool system or supplied by others, must be rated
for the fan system's electrical load requirements; please refer to the VentCool Summit Series speci cations
table for the electrical load requirements of the speci c model to be installed.
All wiring and connections must be made according to this manual and all applicable electrical wiring
codes and standards. All applicable electrical codes must be followed to the satisfaction of the local
authority having jurisdiction.
A dedicated circuit is strongly recommended for this fan system.
The Ventcool Summit (Generation 4) Whole House Fan is supplied pre-wired with a fan control module (FC3JF)
installed on fan assembly. Refer to Diagram 1 for the Interconnection Cable Control Diagram. Refer to Dia-
gram 2 for the fan assembly electrical box wiring diagram.
STANDARD WHF WALL CONTROLL INSTALLATION USING WTT PRODUCT
1. Install a dedicated 115VAC, 15 amp power outlet with in 15 foot of fan assembly
location. Verify power voltage and terminal orientation.
2. In living area (upstairs living space), install a PLASTIC RETROFIT SINGLE GANG BOX
roughly 5 feet o the oor for the whole house fan wall controller to be mounted in
(Refer to FIGURE 4). DO NOT INSTALL METAL GANG BOX. Select a location that will
best sense the temperature for the living space. Do not install box in a location where
the temperature will be in uenced such as in direct sunlight, on an exterior wall, etc...
Note: The wall controller kit comes standard with 50 feet of cable to connect between
plastic box and the fan assembly. The maximum allowable cable length is 100
feet using a connector and two 50 foot cables. Contact Field Cotrols to purchase
additional 50 foot cable and connector, if necessary.
3. Route the 50 foot plug & play cable between the plastic box and one of the fan assemblies. Refer to DIAGRAM
1 for cable connections. Plug the splitter connector into one fan assembly at the fan control module (FC3JF
refer to Figure 5). Connect the two fan assemblies together using the one of the 50 foot plug & play cables.
Plug second 50 foot plug & play cable going to wall control (WTT) into splitter connector on fan assembly.
Extend the cable out of the plastic retro t box (refer to FIGURE 6). This control assembly uses two (2) 50 foot
cables – one between fan assemblies, one between fan assembly with splitter and wall control plastic box.
FIGURE 5 - PLUG CABLE TO FAN CONTROL MODULE
P/N 780104700 03/20 Rev A
ex duct by attaching the strapping to
desired.
page 10 of 20
FIGURE 4 -
PLASTIC RETROFIT
GANG BOX
FIGURE 6 - EXTEND CABLE
