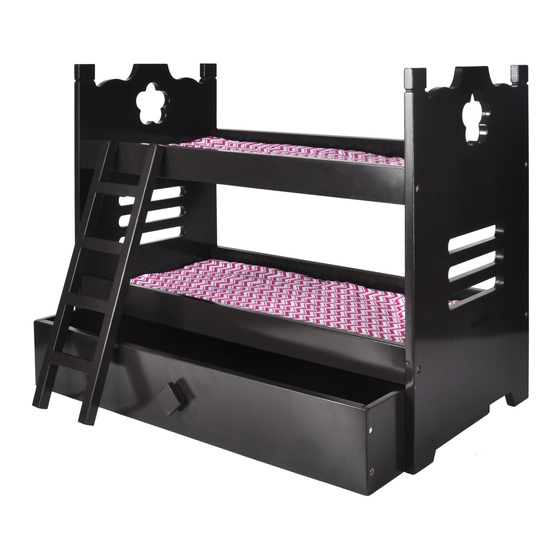

Doll Bunk Bed with Trundle
Please take a moment to read through the entire instruction booklet before assembly to
familiarize yourself with this product. Once you feel ready to start, follow the instructions
step by step and this should make this process as easy as we could make it for you.
If you need help or have damaged or missing parts, contact customer service at
N A O M I
K I D S
Product Dimensions:
23.25" L x 11.75" D x 18" H
www.NaomiHome.com.
© 2016 Naomi Home Inc. - All Rights Reserved.
Page 1 of 8
Advertisement
Table of Contents
Related Manuals for Naomi Kids Doll Bunk Bed with Trundle
Summary of Contents for Naomi Kids Doll Bunk Bed with Trundle
- Page 1 N A O M I K I D S Doll Bunk Bed with Trundle Assembly Instructions Product Dimensions: 23.25” L x 11.75” D x 18” H Please take a moment to read through the entire instruction booklet before assembly to familiarize yourself with this product.
- Page 2 PARENTAL SUPERVISION IS REQUIRED • This Naomi Kids product is intended for child use age 3+. • Parents or Guardians should supervise use under the intended age specifically regarding children that may have access to it and might climb on the unit.
- Page 3 COMPONENT PARTS Please check that you have all the parts listed below Trundle Side Trundle Fronts Trundle Support Head & Foot Boards Bunk Bed Rails Bed Support Panels Ladder Bedding ASSEMBLY HARDWARE Large Bolt Small Bolt Wood Dowel Pin Felt Slider Page 3 of 8...
- Page 4 ASSEMBLY INSTRUCTIONS Place Trundle Fronts – part 2 (x2) with the groove side down. Insert B bolt into the Trundle Side board part 1 and with screwdriver a x to trundle fronts. Select Trundle Support - Part 3, with the painted side up.
- Page 5 ASSEMBLY INSTRUCTIONS Select additional Trundle Side board part 1. Insert B Bolt into Trundle Side and a x to other end of Trundle Fronts part 2 (x2). Remove paper backing from D Felt Slider. Adhere D Felt Sliders to each underside corner of trundle.
- Page 6 ASSEMBLY INSTRUCTIONS Select Head- board - 4 and Bed rails - 5. Place 5 with groove side downward. Insert C wood pin into top holes on each end of 5. Insert A bolt into 4 and a x 4 to 5. Repeat for 3 rails.
- Page 7 ASSEMBLY INSTRUCTIONS Select Footboard - Part 4. Insert bolt A into footboard bottom holes x4 and a x to bed rails. Select Bedding – Part 8 (x3) and place on Bunks and Trundle. Slide Trundle under Bunk As- sembly. Lean Ladder –...
- Page 8 ASSEMBLY COMPLETE CONGRATULATIONS, YOUR NAOMI KIDS DOLL BUNK BED WITH TRUNDLE IS COMPLETE! Product Packaging Information Model #: ________________________________ N A O M I Color: __________________________________ K I D S Shipment Ref. #: _________________________ www.NaomiHome.com Date: __________________________________ MADE IN CHINA...
