N A O M I
K I D S

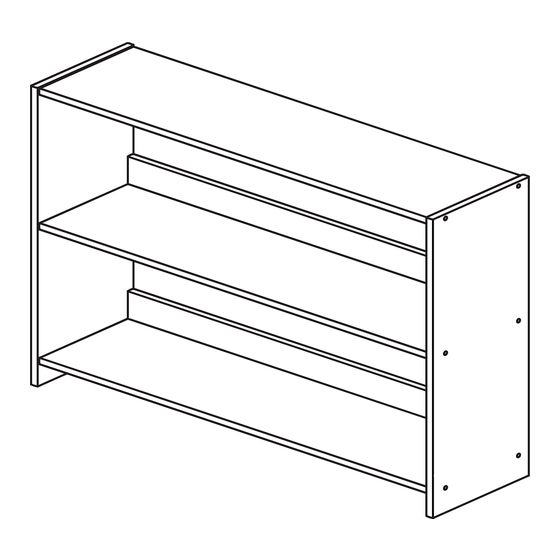

Low Loft Bed - Bookcase
Assembly Instructions
Product Dimensions:
36" L x 10" D x 26" H
Please take a moment to read through the entire instruction booklet before assembly to
familiarize yourself with this product. Once you feel ready to start, follow the instructions
step by step and this should make this process as easy as we could make it for you.
If you need help or have damaged or missing parts, contact customer service at
www.NaomiHome.com.
© 2018 Naomi Home Inc. - All Rights Reserved.
Page 1 of 7
Advertisement
Related Manuals for Naomi Kids Low Loft Bed Bookcase
Summary of Contents for Naomi Kids Low Loft Bed Bookcase
-
Page 1: Product Dimensions
N A O M I K I D S Low Loft Bed - Bookcase Assembly Instructions Product Dimensions: 36” L x 10” D x 26” H Please take a moment to read through the entire instruction booklet before assembly to familiarize yourself with this product. - Page 2 WARNING CAUTION ADULT ASSEMBLY REQUIRED CHOKING HAZARD This product includes small parts, sharp points and sharp edges in its unassembled state. • Keep unassembled parts away from children under 3 years of age, and animals. STRANGULATION HAZARD • Never attach or hang items to any part of the bookcase that is not designed for use with the bookcase;...
- Page 3 ASSEMBLY AT A GLANCE Please take a moment to read through the whole instruction booklet before assembly to familiarize yourself with this product . Once you feel ready to start, follow the instructions step by step and this should mak e this process as easy as we could make it for you. Due to the number of parts involved assembly can take a few hours so set aside between 30 minutes and...
-
Page 4: Component Parts
COMPONENT PARTS Please check that you have all the parts listed below 1. Left Panel x1 2. Right Panel x1 3. Shelf x2 4. Back Support x2 5. Top Shelf x1 ASSEMBLY HARDWARE Wood Dowel Pin Hex Screw Screw Hex Screwdriver x 20 7.0x50mm x 12 4.0x30mm x 4... - Page 5 ASSEMBLY INSTRUCTIONS Select 4 x2, 3 x2, 5, B x20. Insert B x4 into ends of 4. Repeat for 2nd 4. Insert B x4 into inner larger holes on ends 3. Repeat for 2nd 3, and 5. BACK Select 1, 3 x2, 4 x2, 5, A x6.
- Page 6 ASSEMBLY INSTRUCTIONS Select 2, A x6. Note the top of board 2 has the holes close to the end. Position 2 with the top holes upward towards 5 and bottom holes toward 3 and 4. Align 4 Bs into holes in 2. Insert A into bottom hole in 2 and into 3.
- Page 7 ASSEMBLY COMPLETE CONGRATULATIONS, YOUR NAOMI HOME KIDS LOW LOFT BED - BOOKCASE IS COMPLETE! IF YOU HAVE ORDERED THE SET, PLACE THE BOOKCASE AT THE END NEAR THE LADDER. Product Packaging Information Model #: ________________________________ N A O M I Color: __________________________________ K I D S...
