N A O M I
K I D S

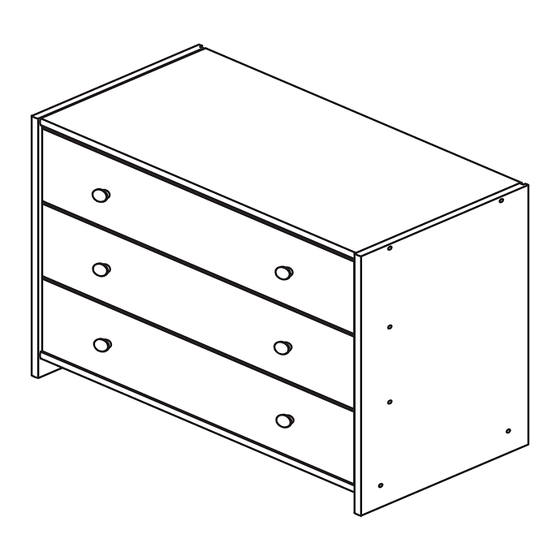

Low Loft Bed - 3 Drawer Chest
Assembly Instructions
Product Dimensions:
28" L x 15" D x 26" H
Please take a moment to read through the entire instruction booklet before assembly to
familiarize yourself with this product. Once you feel ready to start, follow the instructions
step by step and this should make this process as easy as we could make it for you.
If you need help or have damaged or missing parts, contact customer service at
www.NaomiHome.com.
© 2018 Naomi Home Inc. - All Rights Reserved.
Page 1 of 9
Advertisement
Related Manuals for Naomi Kids Low Loft Bed - 3 Drawer Chest
Summary of Contents for Naomi Kids Low Loft Bed - 3 Drawer Chest
- Page 1 N A O M I K I D S Low Loft Bed - 3 Drawer Chest Assembly Instructions Product Dimensions: 28” L x 15” D x 26” H Please take a moment to read through the entire instruction booklet before assembly to familiarize yourself with this product.
- Page 2 WARNING CAUTION ADULT ASSEMBLY REQUIRED CHOKING HAZARD This product includes small parts, sharp points and sharp edges in its unassembled state. • Keep unassembled parts away from children under 3 years of age, and animals. STRANGULATION HAZARD Never attach or hang items to any part of the chest that is not designed for use with •...
- Page 3 ASSEMBLY AT A GLANCE Please take a moment to read through the whole instruction booklet before assembly to familiarize yourself with this product . Once you feel ready to start, follow the instructions step by step and this should mak e this process as easy as we could make it for you. Due to the number of parts involved assembly can take a few hours so set aside between 1 and...
-
Page 4: Component Parts
COMPONENT PARTS Please check that you have all the parts listed below 1. Left Panel x1 2. Right Panel x1 3. Top x1 4. Shelf Support x4 5. Drawer Front x3 6. Drawer Left Side x3 7. Drawer Right Side x3 8. - Page 5 ASSEMBLY INSTRUCTIONS Select 3, 4 x4, 6 x3, 7 x3, B x26. Insert Bx3 into large holes on end of 3. Repeat other end of 3. Insert B into (4x) large holes at ends of 4, and repeat x3 other 4s.
- Page 6 ASSEMBLY INSTRUCTIONS Select 2, A x6. Align Bs in 3 with holes in top of 2. Insert A into top hole in 2 and into 3. Repeat A into other top hole in 2 and into 3. Align Bs in 4s to holes in 2. Insert A through 2 into 4 and nger tighten.
- Page 7 ASSEMBLY INSTRUCTIONS Select 5, 6, 7, E x2, C x2, D x4. Place 5 with inner groove down and toward center. Facing 5, place 6 on the left with glider facing outward and down. Insert D into top hole of 6 and using a screw- (3x) driver a x to top hole in 5.
- Page 8 ASSEMBLY INSTRUCTIONS Align Drawer glides on left and right to glides in chest assembly. Insert drawer in bottom posi- tion. Repeat for other 2 drawers. See inset for more infor- mation to adjust gliders if necessary. Please remove screw "A" and affix on "B" if necessary to adjust the slide, moving up or down Page 8 of 13...
- Page 9 ASSEMBLY COMPLETE CONGRATULATIONS, YOUR NAOMI HOME KIDS LOW LOFT BED - 3 DRAWER CHEST IS COMPLETE! IF YOU HAVE ORDERED THE SET, PLACE THE CHEST NEAR THE LADDER. Product Packaging Information Model #: ________________________________ N A O M I Color:...
