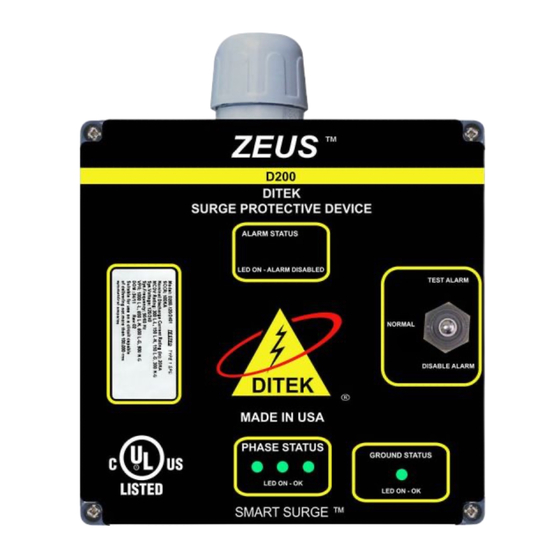

Ditek D200-2403D Install Instructions

This Surge Protective Device (SPD) is a high performance device, designed to provide protection
for sensitive electronic loads connected to service panels, fire panels, or where the SPD is
directly connected to the electronic device. Maximum protection will only be achieved if the SPD
DITEK Corporation
ONE DITEK CENTER
1720 Starkey Road
is properly installed. Please read and follow the installation instructions carefully.
Largo, FL 33771
NOTICE: This SPD should be installed by a licensed contractor in accordance with the National and
Local Electrical Codes and the following instructions.

APPLICATION:

240 VAC 3 phase Delta circuits.

INSTRUCTIONS:

Caution: Measure all voltages to insure applied voltage does not exceed the voltage rating of
the unit. Improper installation voids the warranty.
NOTE: Suitable for use on a circuit capable of delivering not more than 100,000 rms symmetrical
Amperes.
This SPD Contains no serviceable parts.
1. Turn off the power at the circuit breaker or main disconnect before beginning installation.
2. Remove front cover from the panel.
3. Remove 3/4" knockout on side of panel box
4. Make sure the leads are as short as possible with the ground wire being the shortest of all.
5. Unscrew locknut "A" from the Push-On Connector. The flexible conduit between the connectors can be
cut down to size as necessary. See the Illustrations Page on the back side of this document for more
information.
6. Feed all wires and the nipple through knockout hole then through nut, tighten nut securing the unit.
7. Connect the Ground wire (Green) to the ground bus making sure the ground wire is as short as
possible.
Ground Resistance Rule: Max ground resistance is 25 ohms, 5 ohms or less is optimum.
This cannot be an assumed value and must be measured to assure proper grounding.
8. Connect the Phase wires (Black) to the line side or load side of the Phase A, Phase B and
Phase C, 3 pole breaker.
9. Securely mount the enclosure using the mounting feet located at each corner.
10. After all connections have been made and no hazards exist, replace panel cover and restore power.
11.This device features an internal protection that will disconnect the surge protective component
but will maintain power to the load - now unprotected. If this situation is undesirable for the
application, follow the manufacturer's instructions for replacing the device.
Dry Contact Connection: This is a Form C Dry Contact Circuit, 0.9A, 240VAC maximum input.
Normally Open (NO)=Black Wire, Common (COM)= Red Wire, Normally Closed (NC)=White Wire.
Note: Remote Alarm Wires To Be Connected To Class 1 Circuits Only.

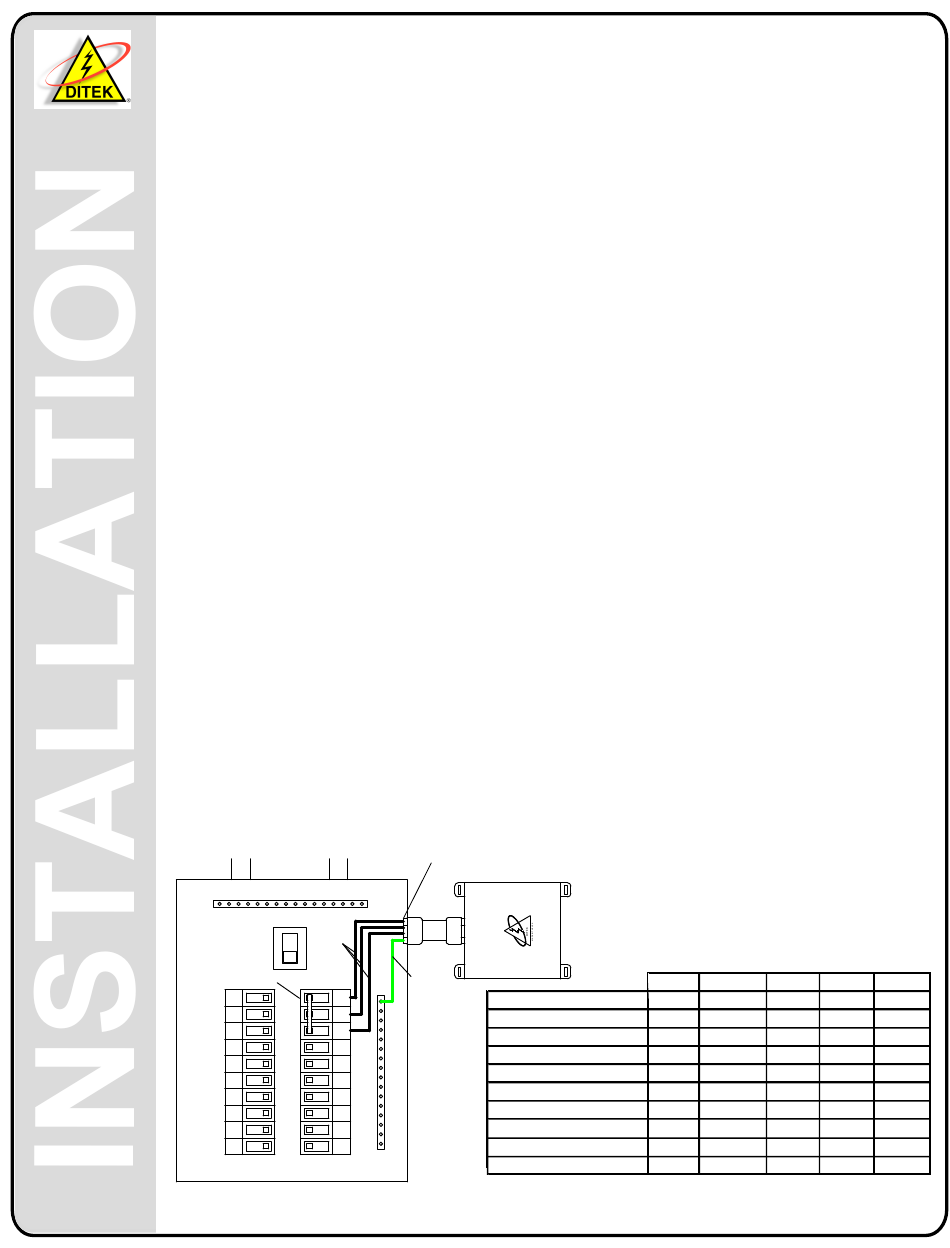

3 POLE BREAKER
Drawn By: B. Aycock 5-18-16
Approved By: R. Mitchell 4-15-2020
INSTALL INSTRUCTIONS
Type 1 SPD, Type 2 SPD for hardwired parallel installations on
BREAKER PANEL
LOCKNUT "A"
NEUTRAL BUS
BLACK WIRE
GREEN WIRE
GROUND BUS
DITEK Technical Support Available 24/7
1-888-472-6100 www.diteksurgeprotection.com
D200-2403D
D200-2403D

Expected System Voltages

120V Single Ø
240V Single Ø
120/240V Split Ø
120/240V Hi Leg Δ
120/208V 3 Ø Wye
277/480V 3 Ø Wye
347/600V 3 Ø Wye
240V 3 Ø Δ
480V 3 Ø Δ
600V 3 Ø Δ
L - L HiL-G,N L - G L - N
NA NA 120 120
NA NA 240 240
240 NA 120 120
240 240 120 120
208 NA 120 120
480 NA 277 277
600 NA 347 347
NA 240 NA
240
Max
NA 480 NA
480
Max
NA 600 NA
600
Max
Doc # INT-100141-001
Part No. 191563 Rev.4
N - G
0
0
0
0
0
0
0
0
0
0
