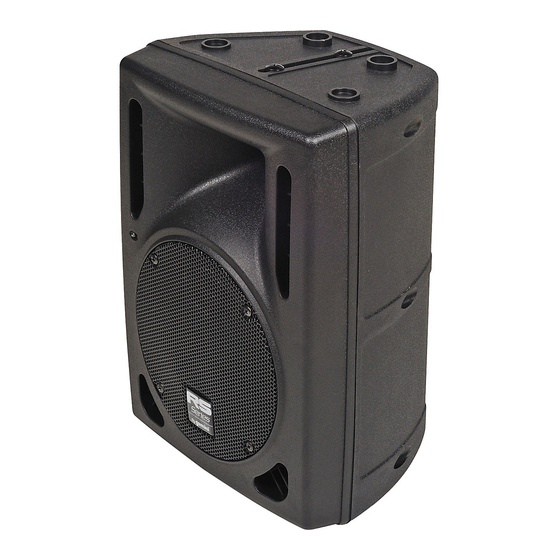

RS-SERIES LOUDSPEAKERS
RS-408 • RS-410 • RS-412 • RS-415
SPECIFICATIONS
Frequency Response
Respuesta Frecuencia | Bande passante | Frequenzgang
Dimensions
Dimensiones | Dimensions | Abmessungen
Net Weight
Peso Neto | Poids net | Gewicht
High Frequency Driver
Driver de agudos | Moteur à seul pavillon | Hochtontreiber
Low Frequency Driver
Altavoz de graves | Haut-parleur Basses | Bass-Chassis
Input
Entrada | Entrée | Eingang
RMS
RMS | RMS | RMS
Peak Power
Potencia de pico | Peak | Peak
Note: 408, 410, 412, and 415 have similiar back panels.
Nota: 408, 410, 412 y 415 tienen paneles traseros similares.
Note: 408, 410, 412 et 415 disposent d'une face arrière identique.
Wichtig: 408, 410, 412 und 415 haben identische Rückseiten.
RS-408
RS-410
70Hz ~ 18kHz
60Hz ~ 18kHz
11.4" x 8.7" x 16.1"
14" x 10.6" x 19.7"
(290mm x 220mm x 410mm)
(355mm x 270mm x 500mm)
17.9 lbs (8.1 kg)
27.1 lbs (12.3 kg)
1"
Titanium 1,35"
8"
10"
Mic: XLR & 1/4"
Mic: XLR & 1/4"
Line: RCA & XLR
Line: RCA & XLR
120W
160W (130W + 30W)
480W
640W
ESPECIFICACIONES • CARACTÉRISTIQUES TECHNIQUES • TECHNISCHE DATEN
RS-412
RS-415
45Hz ~ 18kHz
40Hz ~ 18kHz
16.5" x 12.2" x 22.8"
17.9" x 15.8" x 27"
(420mm x 310mm x
(455mm x 400mm x 685mm)
580mm)
37.5 lbs (17 kg)
51.6 lbs (23.4 kg)
Titanium 1,35"
Titanium 1,75"
12"
15"
Mic: XLR & 1/4"
Mic: XLR & 1/4"
Line: RCA & XLR
Line: RCA & XLR
200W (165W + 35W)
300W (245W + 55W)
800W
1200W
SPECIFICATIONS
1
Advertisement
Table of Contents
Related Manuals for Gemini RS Series
Summary of Contents for Gemini RS Series
- Page 1 RS-SERIES LOUDSPEAKERS RS-408 • RS-410 • RS-412 • RS-415 Note: 408, 410, 412, and 415 have similiar back panels. Nota: 408, 410, 412 y 415 tienen paneles traseros similares. Note: 408, 410, 412 et 415 disposent d’une face arrière identique. Wichtig: 408, 410, 412 und 415 haben identische Rückseiten.
- Page 2 Diagrams Diagramas | Diagrammes | Darstellungen RS-415 Bi-Amp RS-412 Bi-Amp RS-410 Bi-Amp RS-408 Diagrams Diagramas • Diagrammes • Darstellungen...
- Page 3 Sound Products. This state of the art speaker is backed up by a one-year warranty. 7. NE PAS PULVERISER DE LUBRIFIANT SUR L’APPAREIL Felicidades por su compra de un altavoz de la Series RS, diseñado y fabricado por Gemini Sound 1. Lesen Sie alle Bedienhinweise sorgfältig durch, bevor Sie das Produkt in Betrieb nehmen.
- Page 4 Symmetrische Verwendung mit XLR Anschluss Eingang Ausgang that your local voltage matches the voltage indicated on the unit, before you attempt to con- nect and operate your RS SERIES loudspeaker. Blown fuses may only be replaced by fuses 1 = Ground/ Shield • Masa/Tierra of the same type and rating.
- Page 5 El LED DE CLIP se enciende cuando el sistema está en sobrecarga, CORRECTIONSPARAMETRIQUES (GRAVE/AIGU). Sur les modèles, le potentiomètre TREBLE llevar las cajas RS SERIES a nivel de CLIP no está recomendado ya que podría dañar el (AIGU) permet d’augmenter les aigus & le potentiomètre GRAVE (BASS) permet d’augmenter amplificador interno o quemar el FUSIBLE DE ALIMENTACION.
- Page 6 A. Gemini guarantees its products to be free from de- to Gemini UK, and Gemini UK will pay to return the fects in materials and workmanship for One (1) year unit to you if it is considered under warranty.
- Page 7 UK • GCI Technologies 44 The Brambles Enterprise Centre, Waterlooville PO7 7TH, UK Tel: 087 087 00880 • Fax: 087 087 00990 Spain • Gemini Sound Products S.A. Caspe, 172 - 1º A 08013 Barcelona, Spain Tel: 34 93 436 37 00 Fa: 34 93 347 69 61 France •...
Need help?
Do you have a question about the RS Series and is the answer not in the manual?
Questions and answers
what is the impedance of this speaker
The impedance of the Gemini RS Series speaker is 8 ohms.
This answer is automatically generated
How do I fix my rs 415 has no volume but powers up
If your Gemini RS Series RS 415 powers up but has no volume, follow these steps to troubleshoot:
1. Check Volume Controls – Ensure the MASTER VOLUME and MIC LEVEL or LINE LEVEL knobs are turned up.
2. Verify Input Connections – Make sure the audio source is properly connected to the LINE IN or AUX INPUT using the correct cables.
3. Test Different Inputs – Try using both XLR and RCA inputs to see if either works.
4. Inspect Fuse – If the fuse is blown, replace it with one of the same type and value.
5. Check Signal Source – Ensure the external audio device (mixer, microphone, or player) is working and outputting sound.
6. Try Another Speaker – Connect another speaker to the same audio source to confirm the issue is with the RS 415.
7. Examine Output Connections – If using LINE OUTPUT, ensure it is properly routed and not causing a signal loop issue.
If the issue persists, the speaker may require professional servicing.
This answer is automatically generated
