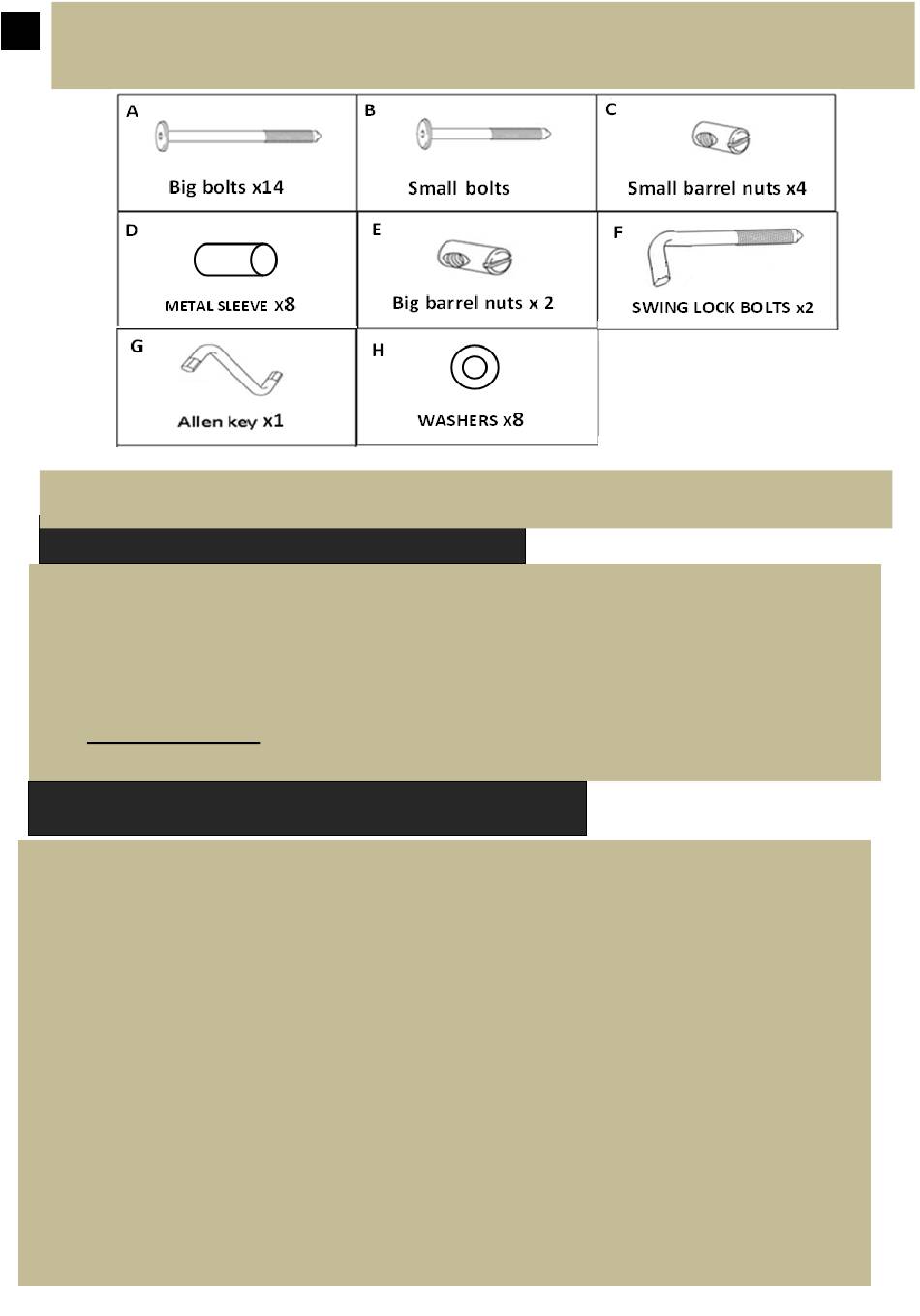

Components–fittings
2
PRESENT BEFORE ASSEM
Assembly instructions

Stage 1 assembly of the feet

Push metal sleeves (part D) x8 onto mechanisms on bottom of crib
end part 2 and top of crib feet part 1 Attach the crib feet ends (part 1)
to the cross bar (part 3) by placing the large barrel nuts (E) into the
large holes provided and attach with 2 x large bolts (A). Ensuring that
the METAL SLEEVE on the feet ends is facing on the outside of the
crib.

Stage 2 assembly of the glider arms

Attach 1 x swinging arm with locking bolt hole (part 4a) to 1 x
swinging arm side bar (part 6) by placing 1 x small barrel nut (part C)
into the hole provided and attach using 1 x large bolt (part A). Then
attach 1 x swinging arm (part 4b) to the other end of the swinging arm
side bar (part 6) by placing 1 x small barrel nut (part C) into the hole
provided and attach using 1 x large bolt (part A). Repeat procedure for
the other swinging arm side bar. Attach the swinging arms and side
bars (part 4a, part 4b and part 6) to the crib feet ends (part 1) using 4
small bolts (part B) and inserting 1 washer (part H) between the
swinging arms and metal sleeve (figure 1).ensure locking arm (part
4a) are on diagonal corners of crib feet so locking peg holes line up
with holes on crib ends at (stage 4).
please check all fittings are present
