LED control board installation
*
LED控制板安裝
*
Installation du tableau de commande LED
*
Installation der LED-steuerplatine
*
*
Instalación del tablero de control LED
LED コントロールボードの設置
*
EC1
EC2
EC3
ADDRESS LED HEADER
+5V
D
GND
Already connected to the
ARGB LED strip on the front
Putting the header of M|C button into this header
- 10 -

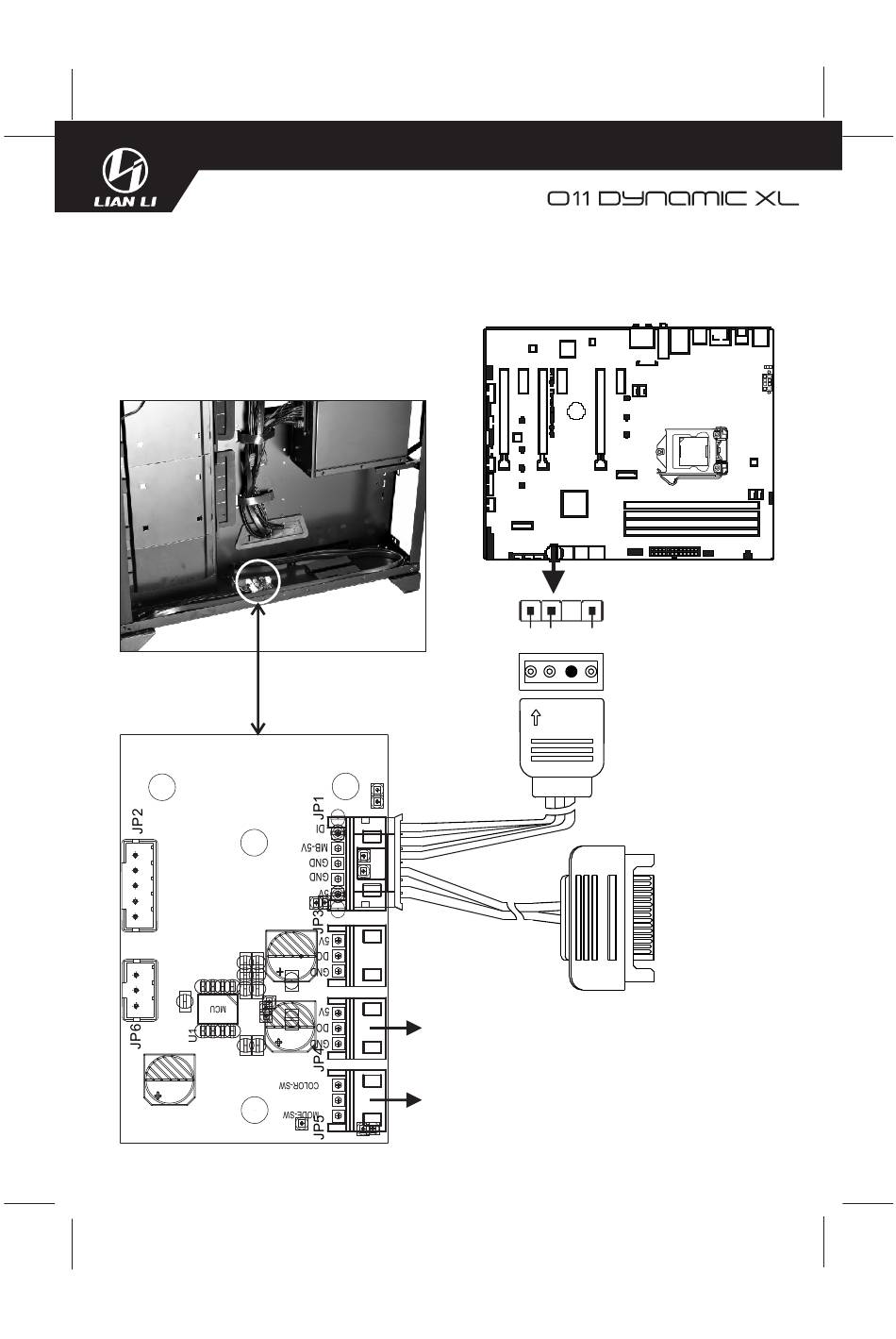

Connecting to MB
Connecting to PSU
