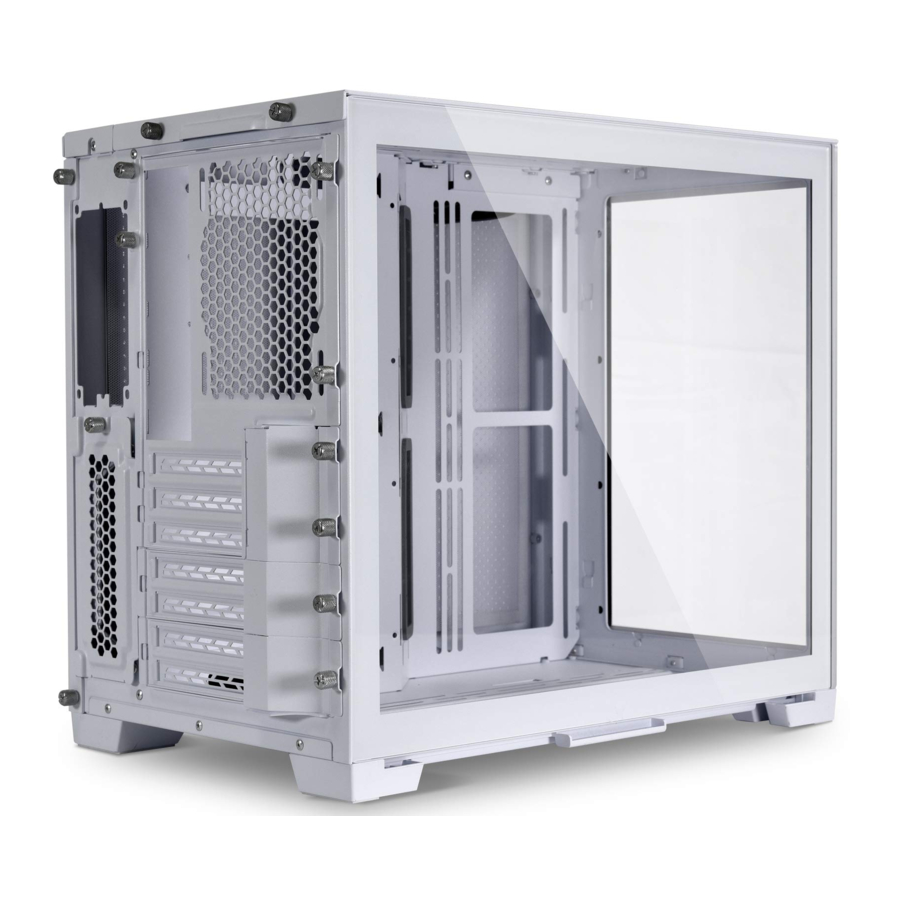

Lian Li O11 DYNAMIC MINI Manual

Case components

1. IO ports: 1 x AUDIO/Microphone Combo Jack, 2 x USB 3.0, 1 x USB 3.1 Type C, Power Button
2. Supporting 120 mm fan x 3 or 140 mm fan x 2 or 360 mm radiatorx 1 or 280 mm radiator x 1
3. Supporting 120 mm fan x 3 or 140 mm fan x 2 or 360 mm radiator x 1 or 280 mm radiator x 1
4. Supporting 120 mm fan x 2 or 140 mm fan x 2 or 240 mm radiator x 1 or 280 mm radiator x 1
5. Removable SSD tray: Supporting 2.5" SSD x 2 (E)
6. Supporting 120 mm fan x 1
7. Removable HDD tray: Supporting 3.5" HDD x 2 or 2.5" SSD x 2
8. SFX tray: Supporting SFX or SFX-L PSU x 1
9. Redefine modularity: 7.5.3 PCI slots mode
10. Water pump bracket mounting holes

Hardware list

* Exceeded quantity are spare parts.

Installation

Remove top & side panel

Remove side glass & front glass

Attention:
Peel off the protective film on both sides

PSU installation

2.5" SSD installation

2.5" SSD/3.5" HDD installation

The HDD is placed in the HDD TRAY in the specified direction (outward)

Redefine modularity: 5/3 PCI slot mode

Note! This screw must be locked first to avoid hole positioning problems caused by tolerances.

Motherboard installation

7 SLOT MODE (ATX / Micro-ATX/Mini-ITX)
5 SLOT MODE (Micro-ATX/Mini-ITX)
3 SLOT MODE (Mini-ITX)
Micro-ATX ONLY

Remove the magnetic dust filters

I/O ports function

Water pump bracket installation

Radiator & cooling support

Optional kits

Model: O11DMINI-1X
Upright Display Card Kits
200 mm PCI-e Express 16X Riser Card Adapter Extender Cable Kit.

Hardware clearance
