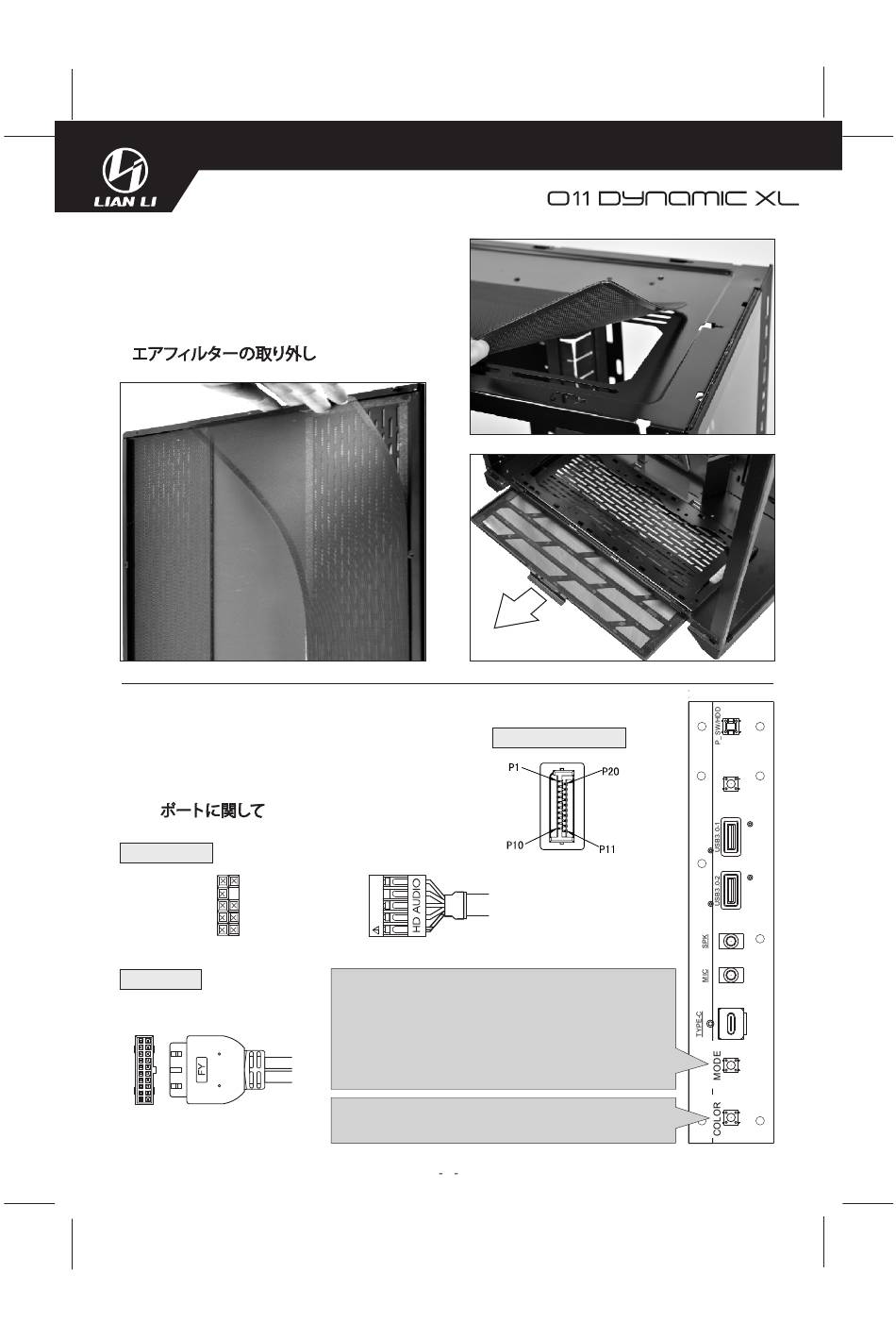

Remove the magnetic dust filters

灰塵濾網拆卸
*
* Retirez les filtres à air
* Entfernen Sie Luftfilter
*
Retire los filtros de aire
*
Side

I/O ports function

*
功能說明
* I/O port
* Installation du port E/S
* I/O-Port installieren
* Instalación de los puertos de E/S
*
I/O
HD AUDIO
Blue Green
10 9
Black purple Key
8 7
Yellow Orange
6 5
Gray N.C.
4 3
Red GND+H.S. TUBE
2 1
USB 3.0
Supports motherboard
USB 3.0 20 Pin header
11 10
20 1
Bottom
USB 3.1 GEN.2
— Mode
8 Lighting Effects:
1. 1st-7th: MCU Built-in Lighting Mode
2. 8th: Sync Up the ARGB Lighting With The Motherboard
(1) Connecting The Header To The Motherboard
(2) To Turn Off The Lighting, Press The Button For
3 Sec. To Turn It On, Press Again For 3 Sec
C- Color
Press C To Control The 7 Built-in Static Colors
9
Top
M
C
