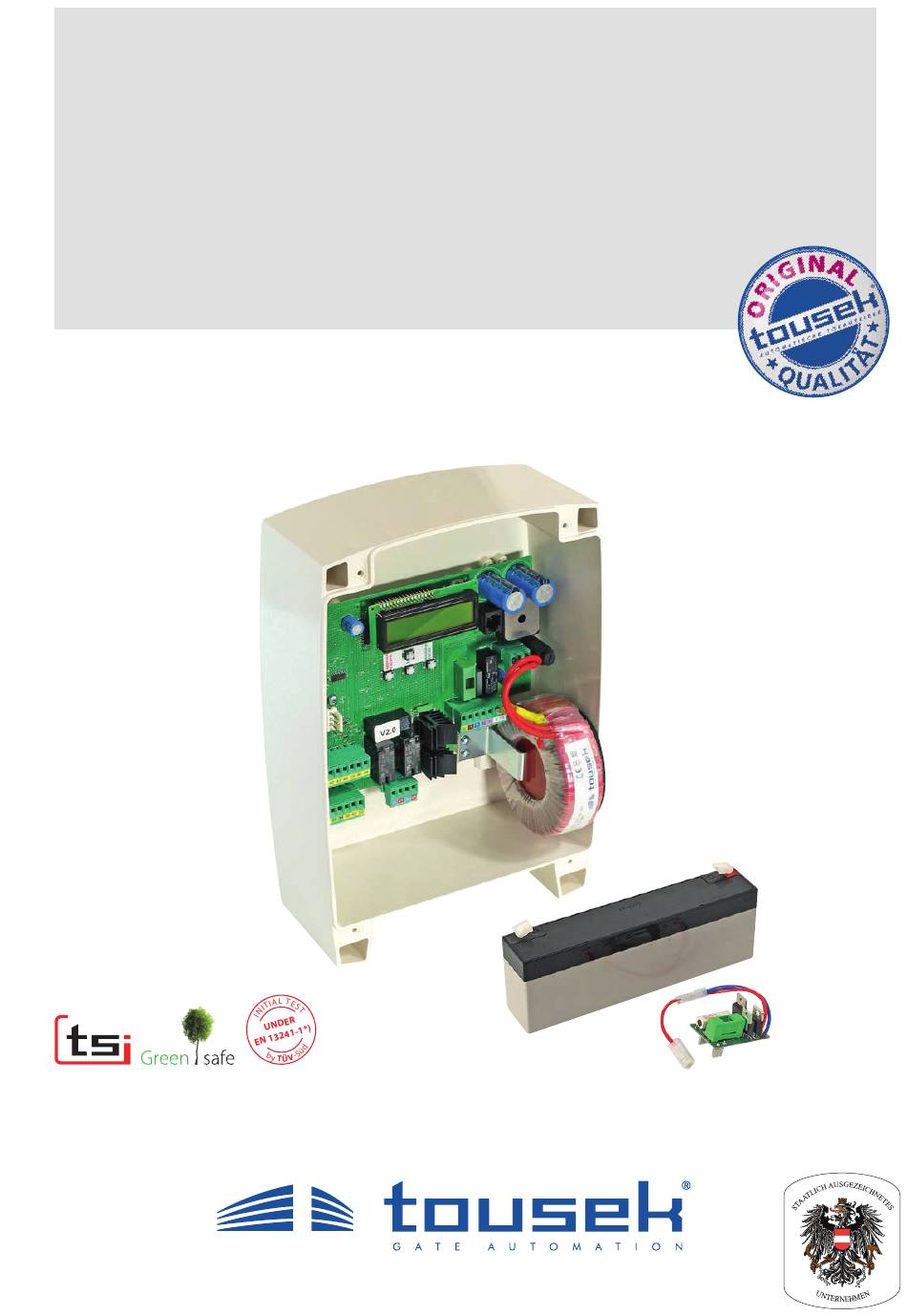

- Page 1 Connection and installation manual Swing gate control unit ST 12/5 optional: emergency battery and load board...
-
Page 2: Table Of Contents
Steuerung ST 12/4 auf ST12/5 umrüsten ....................30 This manual is the sole property of the TOUSEK Ges.m.b.H. and may not be made available to competitors. All rights reserved. No part of it may be reproduced without our prior written permission. We will not accept liability for any claims resulting from misprints or errors. This edition of the manual replaces all earlier publications of the same. -
Page 3: General Warning And Safety Notes
EU and in the individual countries have to be strictly followed. • The TOUSEK Ges.m.b.H. can not be held liable for any claims resulting from disregards of the laws and standards in force during the installation and operation. -
Page 4: General Features, Control Board Overview, Technical Data
General features Swing gate control unit ST 12/5 Control board features • suitable for 1/2 leafed swing gates with gate automation • partial opening for pedestrians (pedestrian function) SLIM-SLR and SLIM-CLR (with integrated limit switches) • direct connection for 8,2 kOhm safety edges (2-channel) •... -
Page 5: Terminal Assignment, Connection Notes
Terminal assignment Swing gate control unit ST 12/5 Warning • Before taking off the control cover, • The product is not suitable for installation in explosion- the main switch must be turned off ! hazardous/explosive areas. • If an emergency battery is connected, also discon- •... -
Page 6: Adjustments - Overview
Adjustments - overview Swing gate control unit ST 12/5 Programming keys Adjustments - Overview • The adjustment (programming) of the operating parameters is carried out via four programming buttons and the text display. • Before you can start programming, select the language of the display. You can do this by pressing the + or - and choose the language for the menuas and press ENTER. -
Page 7: Menu Structure
the menu items courtyard lamp and control lamp will only appear on display, if under additional module courtyard/control lamp is selected. ENTER Swing gate control ST12/5 - 7 - tousek / EN_ST-12-5_05 / 25. 03. 2020... -
Page 8: Connections And Adjustments
Connections and adjustments Swing gate control unit ST 12/5 Warning • Before taking off the control cover, • The product is not suitable for installation in explosion- the main switch must be turned off ! hazardous/explosive areas. • If an emergency battery is connected, also discon- •... -
Page 9: Pedestrian Button (Terminals 30/34)
The stop input has no emergency stop function! - In order to ensure the emergency stop function, provide the supply line with an all-pole disconnecting emergency stop switch, that locks after actuation! - 9 - tousek / EN_ST-12-5_05 / 25. 03. 2020... -
Page 10: Safety
Outer photocell (contact: terminals 45/48) Safety active: to be selected, if outer photocell should be triggered. not active: to be selected, if outer photocell should not be triggered. - 10 - tousek / EN_ST-12-5_05 / 25. 03. 2020... -
Page 11: Photocells - Connection Examples
12/24V 12/24V NC C NO 12V DC – – – Important • Jumper J of transmitter and receiver has to be adjusted in the same way. - 11 - tousek / EN_ST-12-5_05 / 25. 03. 2020... -
Page 12: Safety Contact Edges
• IMPORTANT: during programming of motor the contact safety edges should not be triggered as this leads to an error message - the limit stops have to be placed correspondingly. - 12 - tousek / EN_ST-12-5_05 / 25. 03. 2020... -
Page 13: Photocell Function Inside
• The photocell self-test can only be deactivated by selecting „not active“. • The deactivation of the self-test function is only permitted if the safety installations correspond to the category 3 ! - 13 - tousek / EN_ST-12-5_05 / 25. 03. 2020... - Page 14 CONNECTION OF MOTORS Important: notes for connection and adjustment of operators • It is possible to connect 2 motors 12V DC, max. 60 W to the control board ST 12/5. Motor left: terminals 20/21 / Motor right: terminals 24/25 • Attention: Before carrying out any installation and connection works, the power supply of the gate facility has to be turned off! •...
-
Page 15: Motor Connection
70% (factory setting) 30–100% adjustable: determines the motor force soft stop time Right leaf 5s (factory setting) 0–25s adjustable: defines the duration of soft stop phase. - 15 - tousek / EN_ST-12-5_05 / 25. 03. 2020... -
Page 16: Operating Mode
If the gate is in partial open position and „permanent open in automatic mode“ is selected, so it is possible to adjust permanent partial open for this cycle by giving an impulse via pedestrian button. Permanent partial open can be finished analogous to the above described method. - 16 - tousek / EN_ST-12-5_05 / 25. 03. 2020... -
Page 17: Closing Edges
(HSK 2 - Kl.50/53) left HSK 1 active active mode left/right HSK 2 right active active outside (HSK 2-Kl.50/53) HSK 1 inside active inside (HSK 1-Kl.50/52) Modus HSK 2 inside/outside outside active - 17 - tousek / EN_ST-12-5_05 / 25. 03. 2020... -
Page 18: Lights / Lamps
DC, max. 15W can be connected. 72 73 • Only electric locks that are depending on the gate situation designed for 12V DC, can be – connected. - 18 - tousek / EN_ST-12-5_05 / 25. 03. 2020... -
Page 19: Additional Module (Courtyard-/Control Lamp Or Gate Status Display)
0 = Signal contact open, 1= Signal contact closed Requirement for the realization of one of the selected options (courtyard-/control lamp or door status 1 or 2, is the presence of the corresponding supplementary module. - 19 - tousek / EN_ST-12-5_05 / 25. 03. 2020... -
Page 20: Diagnosis
+ and - the single events can be seen: With the protocole beginning Time since the last event: hence the end is shown DAYS HOURS : MINUTES : SECONDS $$$$$$$$$$$$$$$$ T -00 00:00:00.0 $$$$$$$$$$$$$$$$ Event Type of event - 20 - tousek / EN_ST-12-5_05 / 25. 03. 2020... -
Page 21: Connection Of Radio Receiver
(FE) as shown in the picture. entry mode switch. • For range extension an external antenna FK433 or FK868 • For programming of receiver please see manual for can be connected. radio receiver. - 21 - tousek / EN_ST-12-5_05 / 25. 03. 2020... -
Page 22: Putting Into Operation
Putting into operation Swing gate control unit ST 12/5 Important: preparation works • Connect control panels, safety devices to the motor under the safety regulations in . Attention: if no stop switch is connected then the terminals 30/31 have to be bridged. - Page 23 ? YES right (term. 50/53) $$$$$$$$$$$$$$$$ m. safety edge 2 $$$$$$$$$$$$$$$$ m. safety edge 2 $$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$ active confirm right (term. 50/53) $$$$$$$$$$$$$$$$ m. safety edge 2 $$$$$$$$$$$$$$$$ not active - 23 - tousek / EN_ST-12-5_05 / 25. 03. 2020...
- Page 24 $$$$$$$$$$$$$$$$ delay right leaf $$$$$$$$$$$$$$$$ opening delay change ? YES $$$$$$$$$$$$$$$$ delay time right $$$$$$$$$$$$$$$$ delay time right $$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$ time: 0–25s confirm $$$$$$$$$$$$$$$$ delay time right $$$$$$$$$$$$$$$$ e.g.10s - 24 - tousek / EN_ST-12-5_05 / 25. 03. 2020...
- Page 25 ES-A CLOSED OPEN ES-B OPEN CLOSED • After adjusting the limit switches, the next steps are with ESC-button the detection of end positions with ENTER-button the return of basic settings - 25 - tousek / EN_ST-12-5_05 / 25. 03. 2020...
- Page 26 • Note If the end positions are detected improperly, the values have to be deleted before repro- gramming in menu point “MENU/RESET/DIAGNOSIS/POSITIONS NEW (=YES). • Note: After each power failure only the open positions are newly detected. - 26 - tousek / EN_ST-12-5_05 / 25. 03. 2020...
-
Page 27: Connection Of The Backup Battery (Optional)
ST 12/5 • The optional back-up battery can be housed in the control Technical data housing of the ST 12/5, and enables the opening and closing Backup battery of the gate in case of power failure. Amount of cycles approx. -
Page 28: Erroy Analysis
Troubleshooting guide Swing gate control unit ST 12/5 Error possible reason solution mains voltage missing control of mains voltage as well as of or fuse F1 defective fuse F1 No reaction after emitting a command check if stop button is properly con-... -
Page 29: Dimensioned Drawing Of Housing Ip54
Dimensioned drawing housing IP54 Swing gate control unit ST 12/5 • dimensions in mm • Mounting dimensions (back side) We reserve the right to change dimensions and technical specifications without prior notice ! -
Page 30: Steuerung St 12/4 Auf St12/5 Umrüsten
Conversion ST 12/4 to ST 12/5 Swing gate operator control unit ST 12/5 • The conversion of the old control unit ST 12/4 to the new model ST 12/5 is possible by simply replacing the control board while maintaining the existing control box and transformer. - Page 31 - The 3-pin terminal block (K1), where the red wires are clamped, insert it into the slot as shown below. - The primary line (yellow wire) must be connected to terminals 5/6 (PRIM) of the control board ST 12/5. yellow...
