Parts list Check and sort out parts
Qty. Part
1 Circuit board
12 LED 5 mm (LED1 - LED12)
2 Resistor (R1/R2)
2 Resistor (R8/R9)
1 Resistor (R10)
2 Capacitor (C3/C4)
2 Transistor (T3/T4)
1 Switch (SW1)
1 USB connector

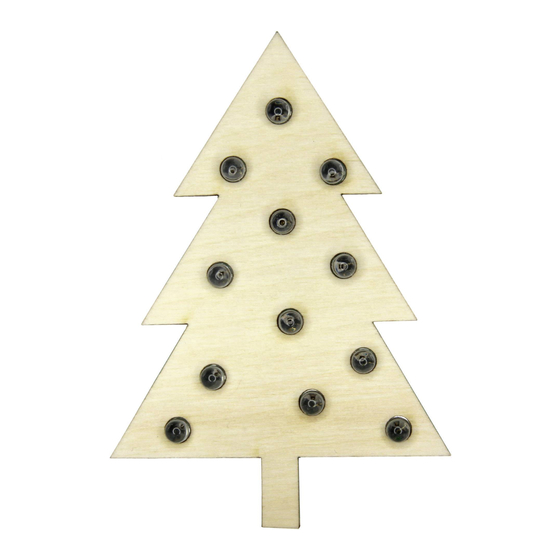

1 Front panel
You will also need:
Soldering iron, solder, wire cutters, tweezers, power bank or
USB port
The Christmas tree with flickering candle LEDs soldering kit
The Christmas tree soldering kit usees real flickering LEDs.
These flickering orange LEDs simulating candlelight add a
great touch to this kit and add a Christmas ambiance.
The lights can be set to steady or blinking. A great electronics
building kit to use for decoration or anybody wishing to learn how to
solder. The included plywood front panel can be decorated for Christmas before attaching it.
Dimensions: 100 x 70 mm.
The 'Christmas Tree' electronics building kit is powered via power bank or via USB port. This eliminates costly batteries.
The kit with over 25 parts is an excellent introduction to soldering.

IMPORTANT SAFETY NOTES

Keep this manual for future reference! It contains important information.
This kit is intended for USB power only.
Acute danger to life!
The soldering iron, solder and the parts being soldered become very hot. Be very careful!
Always use a mat when soldering! This prevents parts and the circuit board from slipping.
We recommend using a soldering iron holder to set the soldering iron down safely during use.
