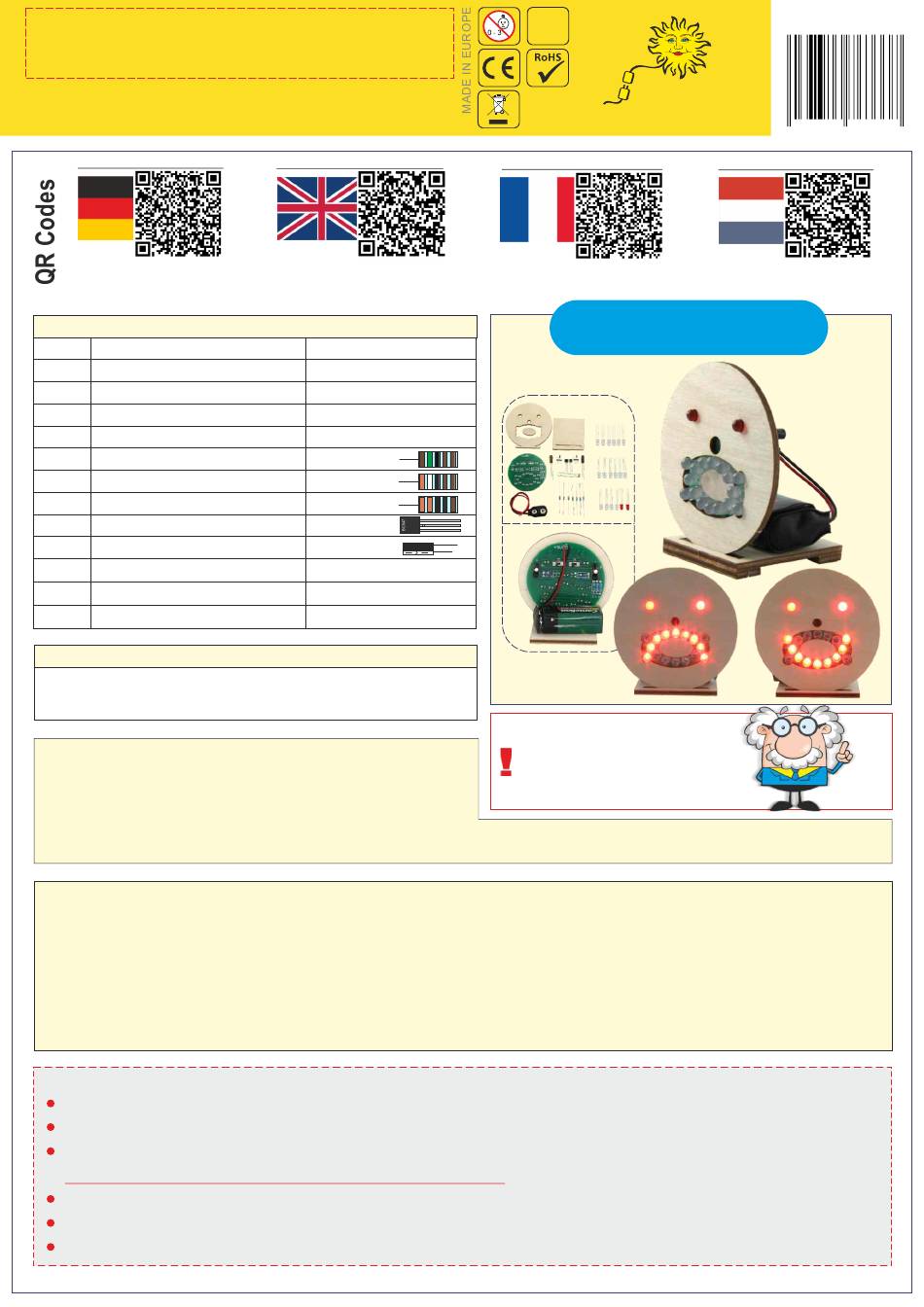

Sol-Expert group 76333 Manual

Firmenanschrift aufbewahren - Nicht geeignet für Kinder unter 3 Jahren! - Verschluckbare
Kleinteile! Keep the address of the company -
Contains small parts! Veuillez conserver l'adresse -
de trois ans! - Contient de petites pièces pouvant être absorbées!
geschikt voor kinderen beneden 3 jaar! - Kleine onderdelen Kunnen worden ingeslikt!
SOL-EXPERT group, C.Repky - Mehlisstrasse 19 - D-88255 Baindt
Tel.: +49 (0)7502 - 94115-0 - Fax: +49 (0)7502 - 94115-99
info@sol-expert-group.de - www.sol-expert-group.de
Hier geht es zur Anleitung:
https://www.sol-expert-group.de/Rund-ums-
Loeten/Pfiffige-Loetbausaetze/Smiley-das-
Stimmungsbarometer-
Loetbausatz::1262.html?language=de
Parts list: Check and sort out parts!
Qty. Part
1 Circuit board
2 LED 5 mm (LED17/LED18)
16 LED 5 mm (LED1 - LED16)
2 Sliding switch (SW1/SW2)
3 Resistor (R3/R4/R7)
2 Resistor (R5/R6)
2 Resistor (R1/R2)
2 Transistor (T1/T2)
2 Capacitors (C1/C2)
1 Photoresistor (R8)
1 Battery clip (J3)
1 Wooden parts kit
You will also need:
Soldering iron, solder, 9 V block battery, wire cutters,
wire strippers
The 'Smiley' soldering kit
Generally: This soldering kit is intended to introduce to the
basics of soldering. It is excellent for instructor-led courses at
schools and workshops.
The soldering kit can also be used at holiday programmes, school camps and other events related to soldering.

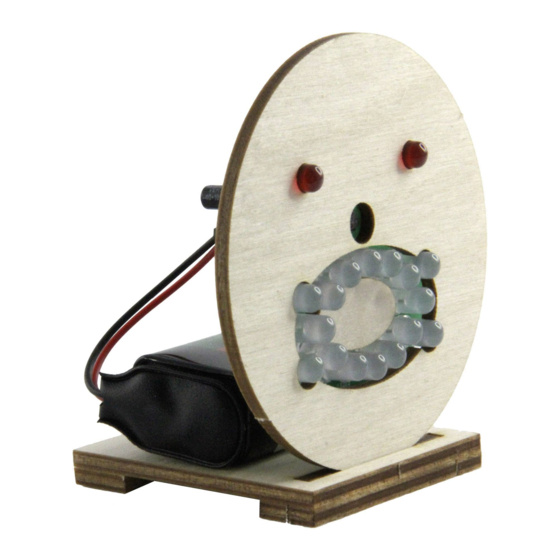

How 'Smiley' the mood barometer works
Good or bad mood? Smiley the mood barometer soldering kit shows everybody. The circuit board kit allows you to set the switch
to show your mood. Smiley will either smile or frown depending on the setting.
And the eyes will wink, with the photoresistor changing the frequency based on the incidence of light. The kit with over 30 parts is
excellent to introduce to soldering. Smiley is battery powered with a 9 Volt battery, which is not included.
Decorate the included plywood face however you'd like. Dimensions: 80 x 80 x 50 mm, over 30 parts
Safety notes
Keep this manual for future reference! It contains important information.
When the battery is drained, always replace it with a new battery with the same rating. (9 V block)
This kit is intended for battery operation only.
Never connect the kit to 230 V mains voltage! Acute danger to life!
The soldering iron, solder and the parts being soldered become very hot. Be very careful!
Always use a mat when soldering! This prevents parts and the circuit board from slipping.
We recommend using a soldering iron holder to set the soldering iron down safely during use.
Not suitable for children under 3 years! -
Ne convient pas pour les enfants de moins
Adres bewaren - Niet
Click here for the instructions:
https://www.sol-expert-group.de/All-about-
soldering/Smart-kits-for-
soldering/::1262.html?language=en
Value/Description
Round 60 mm, 96620
Red colour, red lens
Red colour, white lens
Selector switch, 2-pin
1K5 Ohm
3K9 Ohm
330 Ohm
BC547B
47uF/10V 47 uF
NSL-19M51
for 9 V block
5-piece
10+
SOL-EXPERT
Return the device
to a certified provider at the
end of its useful life!
Cliquez ici pour les instructions:
https://www.sol-expert-group.de/Autour-de-la-
soudure/Kits-astucieux-pour-la-
soudure/::1262.html?language=fr
Smiley, the mood barometer
battery operated soldering kit
Recommendation for children
and teenagers: Assembly
and soldering should be
supervised by an adult.
No. 76333
group
group
4 037 373 76 333 7
Klik hier voor de instructies:
https://www.sol-expert-group.de/Rond-
solderen/Clever-kits-voor-het-
solderen/::1262.html?language=nl
Conrad No.
1818580
!
