Sol-Expert group 76336 Manual

Firmenanschrift aufbewahren - Nicht geeignet für Kinder unter 3 Jahren! - Verschluckbare
Kleinteile! Keep the address of the company -
Contains small parts! Veuillez conserver l'adresse -
de trois ans! - Contient de petites pièces pouvant être absorbées!
geschikt voor kinderen beneden 3 jaar! - Kleine onderdelen Kunnen worden ingeslikt!
SOL-EXPERT group, C.Repky - Mehlisstrasse 19 - D-88255 Baindt
Tel.: +49 (0)7502 - 94115-0 - Fax: +49 (0)7502 - 94115-99
info@sol-expert-group.de - www.sol-expert-group.de
Hier geht es zur Anleitung:
https://www.sol
-expert-
group.de/Rund-ums-Loeten/Pfiffige-
Loetbausaetze/Loetbausatz-Herz-mit-
Blinkfunktion-und-
Dauerleuchten::1263.html?language=de
Parts list Check and sort out parts
Qty. Part
1 Circuit board
20 LED 5 mm
2 Resistor (R5/R6)
2 Resistor (R1/R4)
1 Resistor (R7)
2 Capacitor (C1/(C2)
2 Transistor (T1/T2)
1 Switch (SW1)
1 Pot (R2)
1 USB connector
1 Front panel
You will also need:
Soldering iron, solder, wire cutters, tweezers, power bank
or USB port

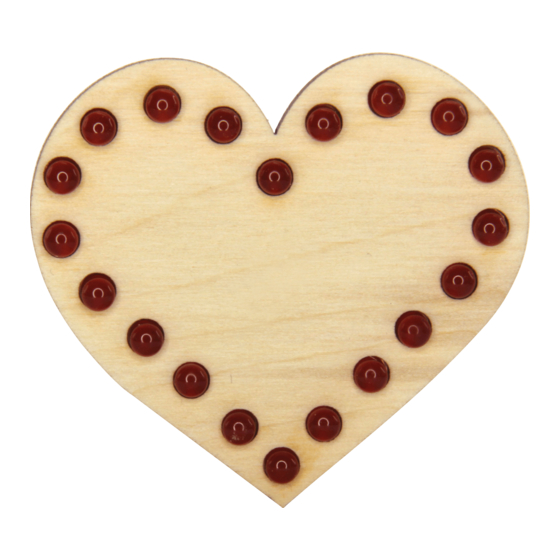

The 'Blinking Heart' soldering kit
The 'Blinking Heart' soldering kit is excellent to practice soldering on a
circuit board. Over 30 parts are soldered onto the circuit board step by
step according to the instructions. Once the kit is assembled the heart
can be operated in steady or blinking mode.
In blinking mode you can then also adjust the blink speed via the
potentiometer. So you can send messages, e.g. slow blinking: I love you - rapid blinking: I really love you!
Decorate the included plywood front any way you'd like and install if desired. Dimensions: 70 x 70 mm, over 30 parts.
The 'Blinking Heart' electronics building kit is powered via power bank or via USB port. This eliminates costly batteries.
IMPORTANT SAFETY NOTES
Keep this manual for future reference! It contains important information.
This kit is intended for USB power only.
Acute danger to life!
The soldering iron, solder and the parts being soldered become very hot. Be very careful!
Always use a mat when soldering! This prevents parts and the circuit board from slipping.
We recommend using a soldering iron holder to set the soldering iron down safely during use.
ENVIRONMENTAL NOTES
Generally: Please return the circuit board to a certified provider at the end of its useful life. These will then ensure it is disposed of in
compliance with directives. This is good for the environment and an important part of actively protecting the environment.
Not suitable for children under 3 years! -
Ne convient pas pour les enfants de moins
Adres bewaren - Niet
Click here for the instructions:
https://www.sol-
expert-group.de/All-
about-soldering/Smart-kits-for-
soldering/Solder-kit-heart-with-flashing-
function-and-permanent-
light::1263.html?language=en
Value/Description
76320
Colour red
3K9 Ohm
56 Ohm
620 Ohm
47 uF/10V
47 uF
BC547B
SS12D01
100K ohm
installed
1-pc.
Never connect the kit to 230 V mains voltage!
10+
SOL-EXPERT
Return the device
to a certified provider at
the end of its useful life!
Cliquez ici pour les instructions:
https://www.sol-
expert-
group.de/Autour-de-la-soudure/Kits-
astucieux-pour-la-soudure/Coeur-de-kit-de-
soudure-avec-fonction-clignotante-et-
lumiere-permanente::1263.html?language=fr
Heart with blinking or steady lights
soldering kit, powered via power bank
or USB port
Recommendation for children
and teenagers: Assembly and
soldering should be supervised
by an adult.
No. 76336
group group
4 037373 763368
Klik hier voor de instructies:
https://www.sol-
expert-
group.de/Rond-solderen/Clever-kits-voor-het-
solderen/Soldeerkit-hart-met-knipperende-functie-
en-permanent-licht::1263.html?language=nl
Conrad No.
1818582
