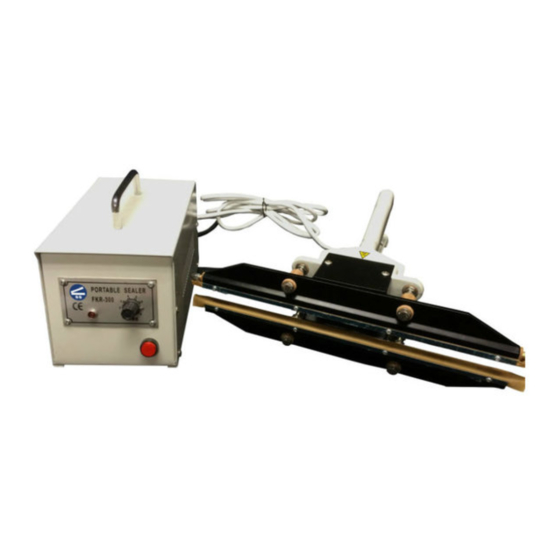

- Page 1 Double Impulse Portable Sealers Model: FKR-200A, FKR-300A, FKR-400A Distributed By: Version 1.0 Last Updated: 2/15/19...
- Page 2 For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below. Sealer Sales, Inc. 8820 Baird Avenue Northridge, Ca 91324 www.sealersales.com...
-
Page 3: General Information
No part of this manual may be duplicated, reproduced, stored in a retrieval system, translated, transcribed, or transmitted in any form without the express prior written permission of Sealer Sales. E Q U I P M E N T I N F O R M A T I O N ... -
Page 4: Safety Instructions
F K R - A I N S T R U C T I O N M A N U A L Safety Instructions WARNING! Below are general safety precautions and warnings that should be understood prior to setting up or operating your equipment. Read and fully understand all instructions and warnings prior to using this unit. - Page 5 F K R - A I N S T R U C T I O N M A N U A L Never touch the heating element(s) with bare hand while the sealer is plugged into a power source, in operation or just finished operation.
- Page 6 Our FKR-A Series double impulse sealers utilize twin heating element wires, one on the upper sealing jaw and one on the bottom sealing jaw providing greater heat penetration for sealing through thicker materials (up to 20mil total thickness). Specifications FKR-200A FKR-300A FKR-400A Power...
- Page 7 F K R - A I N S T R U C T I O N M A N U A L Getting to Know your Portable Sealer FKR-A Series Double Impulse Portable Sealers are simple and efficient sealing machines. Timer Handle Seal at the lowest timer...
- Page 8 F K R - A I N S T R U C T I O N M A N U A L Operating your Sealer Important Read this manual carefully, and make it available to everyone connected with the supervision, maintenance, or operation of this machine.
- Page 9 F K R - A I N S T R U C T I O N M A N U A L Operation Before operating, check the heating element, PTFE cover, PTFE adhesive and the silicone rubber. 2. Insert the power cord into the correct receptacle (120V). 3.
-
Page 10: Maintenance
Replacement kits are available from your distributor. Kits include (2) heating elements, (2) PTFE Covers, and (2) PTFE adhesives. For replacement kit part #s, refer to your model #. FKR-200A FKR-300A FKR-400A... - Page 11 F K R - A I N S T R U C T I O N M A N U A L To install your replacement kit on your sealer, turn off power and unplug sealer. Removing Worn Parts. 1. Loosen the four screws on the PTFE cover plate on both sides of the sealer body. Remove the PTFE cover.
- Page 12 F K R - A I N S T R U C T I O N M A N U A L 2. Apply the adhesive to the sealer’s sealing platform. Tuck the adhesive close to the mounting screw as possible. Note: The PTFE adhesive serves as a barrier between the sealer body and element. Never allow the element to come in direct contact with the sealer body.
-
Page 13: Parts Diagram
F K R - A I N S T R U C T I O N M A N U A L Parts Diagram Figure 6. Electric Circuit Diagram Overview... - Page 14 F K R - A I N S T R U C T I O N M A N U A L Figure 7. Spare Parts Diagram Overview...
- Page 15 F K R - A I N S T R U C T I O N M A N U A L Figure 8. Spare Parts Diagram Overview Item Part # Description Comments REPLACEMENT KITS RK-Model# Incldues (2) elements, (2) PTFE cover, (2) PTFE specify model # when ordering adhesive Handle...
-
Page 16: Troubleshooting
F K R - A I N S T R U C T I O N M A N U A L Troubleshooting Problem Possible Causes Solution 1. Disconnected power cord 1. Check or change plug No sealing 2. Power cord is broken 2.
