Product End-of-Life Disassembly Instructions
Product Category: Networking Equipment
Marketing Name / Model
[List multiple models if applicable.]

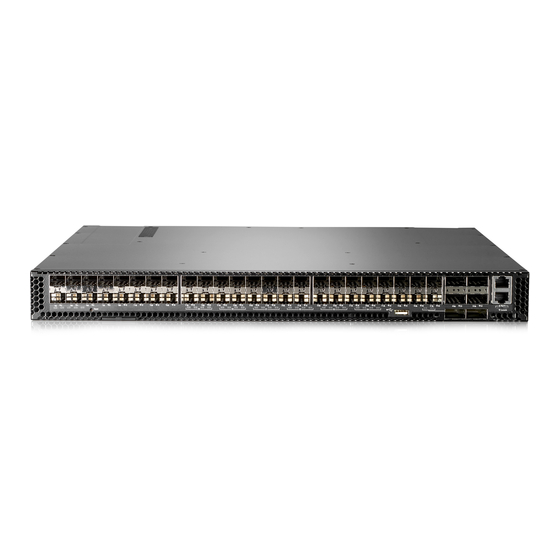

HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Front-to-Back Switch (JL315A)
HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Back-to-Front Switch (JL316A)
Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions
for the disassembly of HPE products to remove components and materials requiring selective treatment, as defined by EU
directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
1.0 Items Requiring Selective Treatment
1.1 Items listed below are classified as requiring selective treatment.
1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as
applicable.
Item Description
Printed Circuit Boards (PCB) or Printed Circuit
Assemblies (PCA)
Batteries
Mercury-containing components
Liquid Crystal Displays (LCD) with a surface
greater than 100 sq cm
Cathode Ray Tubes (CRT)
Capacitors / condensers (Containing PCB/PCT)
Electrolytic Capacitors / Condensers measuring
greater than 2.5 cm in diameter or height
External electrical cables and cords
Gas Discharge Lamps
Plastics containing Brominated Flame Retardants
weighing > 25 grams (not including PCBs or PCAs
already listed as a separate item above)
Components and parts containing toner and ink,
including liquids, semi-liquids (gel/paste) and toner
Components and waste containing asbestos
Components, parts and materials containing
refractory ceramic fibers
MF877-00
Template Revision A
Notes
With a surface greater than 10 sq cm
All types including standard alkaline and lithium
coin or button style batteries
For example, mercury in lamps, display backlights,
scanner lamps, switches, batteries
Includes background illuminated displays with gas
discharge lamps
Include the cartridges, print heads, tubes, vent
chambers, and service stations.
HPE instructions for this template are available at
MF877-01
Quantity
of items
included
in product
5
0
0
0
0
0
0
0
0
0
0
0
0
Page 1
Advertisement
Table of Contents
Related Manuals for Hewlett Packard Enterprise Altoline 6921
Summary of Contents for Hewlett Packard Enterprise Altoline 6921
- Page 1 Marketing Name / Model [List multiple models if applicable.] HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Front-to-Back Switch (JL315A) HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Back-to-Front Switch (JL316A) Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions for the disassembly of HPE products to remove components and materials requiring selective treatment, as defined by EU directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
- Page 2 Quantity of items Item Description Notes included in product Components, parts and materials containing radioactive substances 2.0 Tools Required List the type and size of the tools that would typically be used to disassemble the product to a point where components and materials requiring selective treatment can be removed.
- Page 3 3. Remove the small sheet metal air flow diverter 4. Using a Phillips screwdriver, remove the two screws securing the double bend sheet metal air flow diverter to the left side of the main PCA 5. Remove the double bend sheet metal air flow diverter 6.
