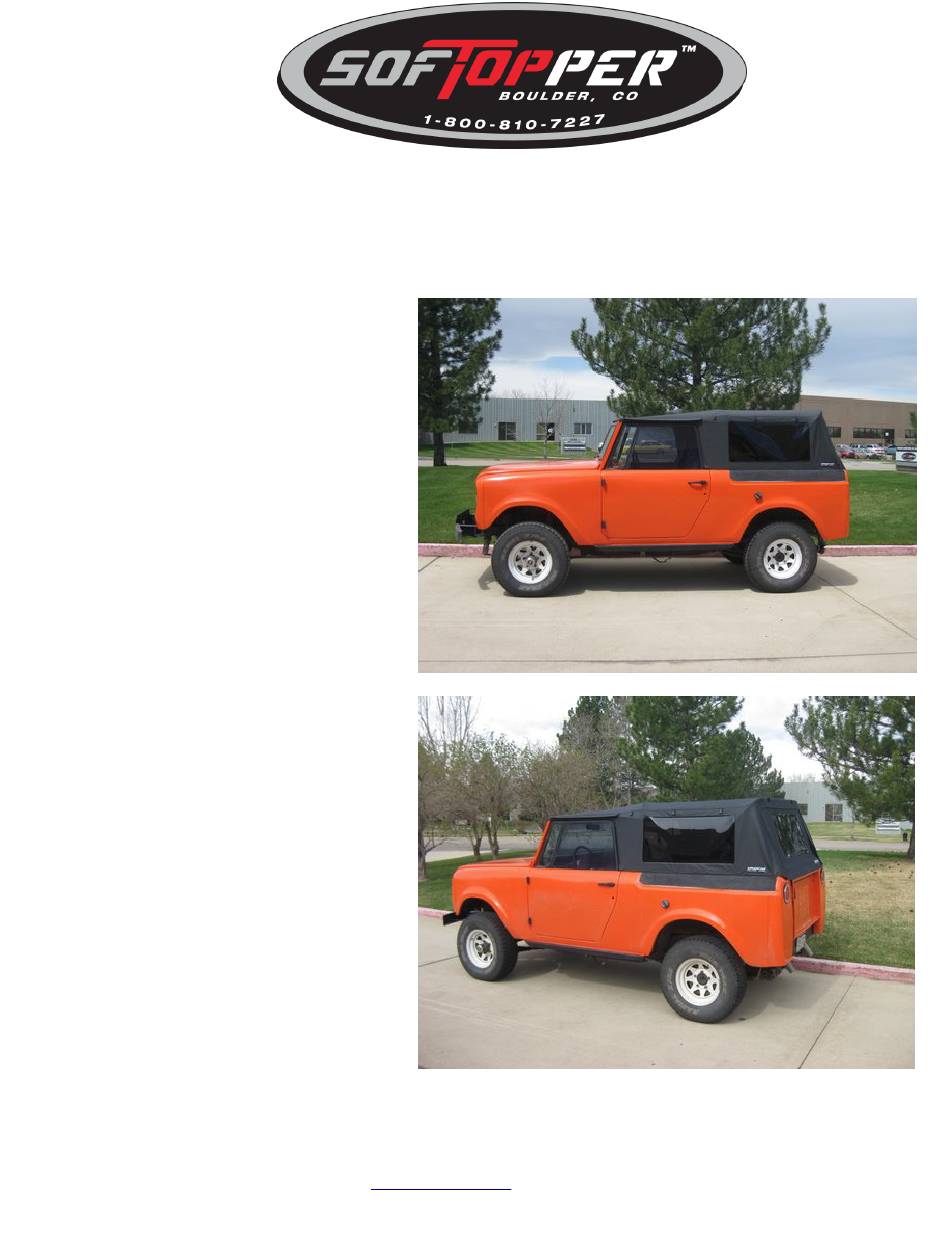

International Scout 80/800
Tools needed:
sockets wrenches
powered drill
#2 phillips bit for drill
#3 phillips bit for drill or screwdriver
tape measure
Contents:
2- bedrails, (2 pieces each)
4- bedrail clamps
2- folding frame uprights
2- crossbars (color coded to mate up
with
uprights)
2- sets horizontal door surround
components
( right and left)
2- set vertical door surround
components
2- 1/4" x 3/4" bolts with washers and
wingnuts
1- header bar
2- black plastic parts for retaining rear
window
panel bar
4- #12 x 3/4" phillips pan head screws
1- 44 inch long 7/8"aluminum bar
2- 12 inch long 3/4" bars
2- self drilling 1/'2" screws
2- pins with circlips
5- strips of self adhesive Velcro
2- adjustible retaining straps.
1- bottle of Seam Sure
1-800-810-7227
www.softopper.com
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Softopper International Scout 80/800
Summary of Contents for Softopper International Scout 80/800
- Page 1 International Scout 80/800 Tools needed: sockets wrenches powered drill #2 phillips bit for drill #3 phillips bit for drill or screwdriver tape measure Contents: 2- bedrails, (2 pieces each) 4- bedrail clamps 2- folding frame uprights 2- crossbars (color coded to mate up...
- Page 2 Place the bedrails into position on the vehicle and align each bedrail side to side and front to rear as shown in the photos and clamp in place. The clamps will allow you move the bedrails slighty later if necessary. 1-800-810-7227 www.softopper.com Page 2...
- Page 3 Be sure to remove the white paper backing from the weather stripping. Step 6 Join the two vertical and horizontal components of the door surrounds using the 1/4" bolts and wingnuts as shown. 1-800-810-7227 www.softopper.com Page 3...
- Page 4 flap. You may need to cut the self adhesive velcro to fit or you can center it vertically and wrap around top and bottom. 1-800-810-7227 www.softopper.com Page 4...
- Page 5 If you decide to use the supplied Seam sure, be sure to apply it to the inside of the canopy. Do not allow the liquid to come in contact with the outer vinyl coating of the canopy. 1-800-810-7227 www.softopper.com Page 5...
- Page 6 It is not intended to be used during cold temperatures or winter months. Returns must be pre-approved and have Softoppers issued RGA number attached. Any defective items must be returned with proof of purchase to Softopper 4750 Nautilus Court South, Unit B, Boulder CO 80301, freight pre-paid. Items returned must be carefully packed, in clean condition, with plastic windows protected from scratching and creasing.
- Page 7 Softopper in cold temperatures is not recommended. When opening the rear of the Softopper in cold weather, be sure to raise the zippers as high as possible so that any folding will occur to the topper fabric and not to the clear vinyl window.
- Page 8 This top will not protect the occupants from falling or flying objects. Never operate vehicle in excess of manufacturers recommendations or specifications. Please call us at 1-800-810-7227 if you have any questions. Or email us at info@softopper.com 1-800-810-7227 www.softopper.com Page 8...
