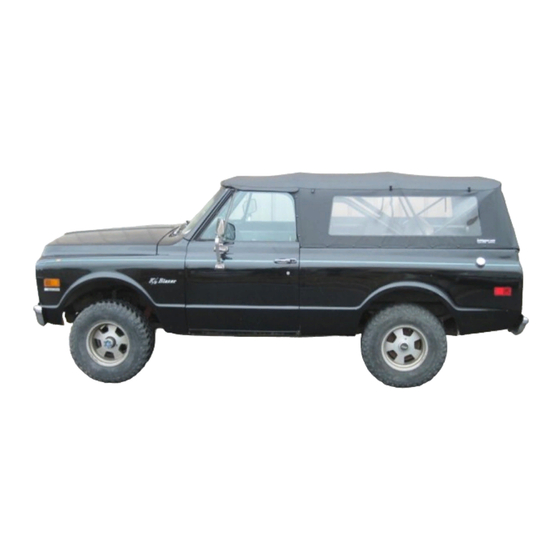

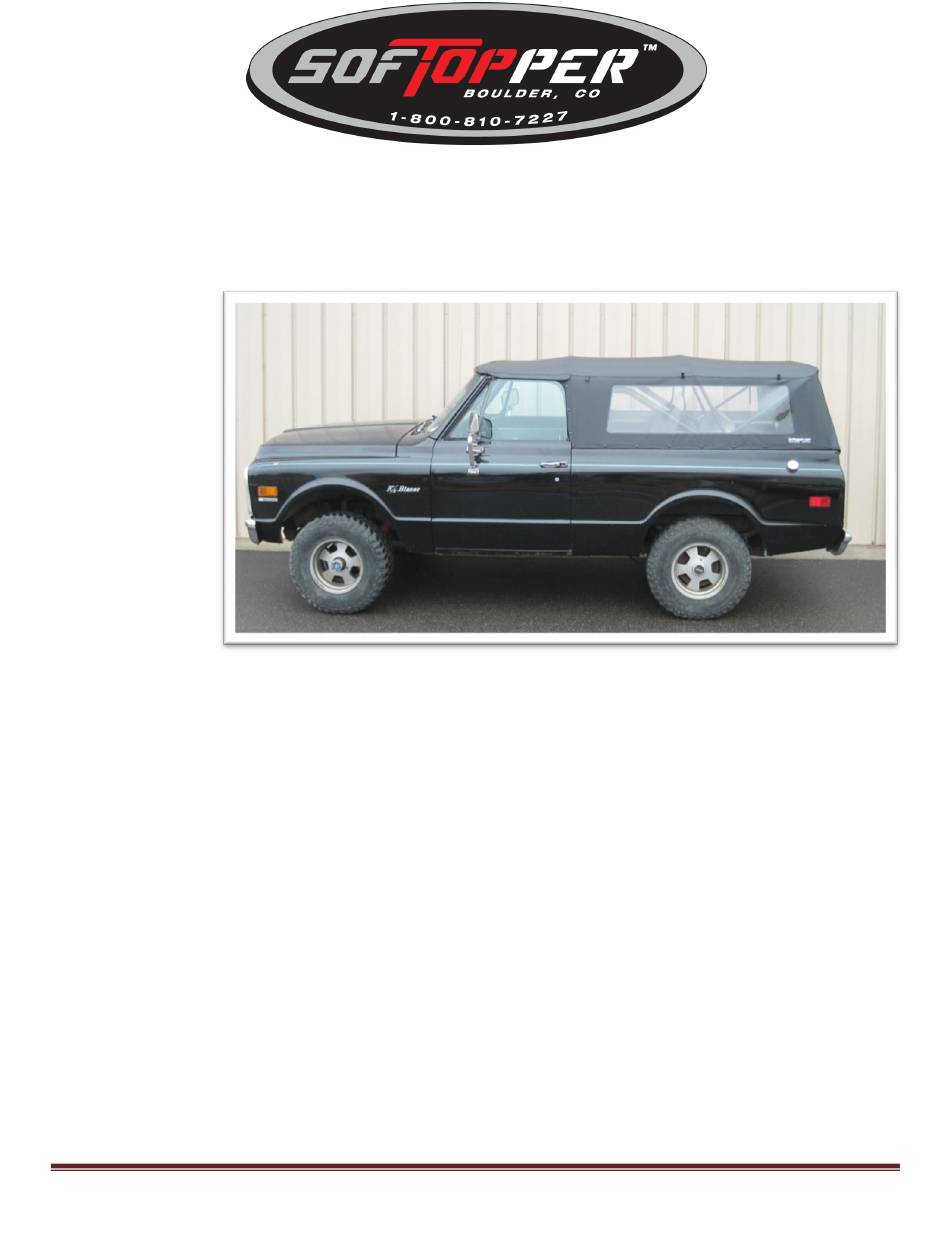

1st. Generation K5 Blazer (1969 to 1972)
Tools needed:
# 30 drill bit.
Tape measure
Pencil
Drill
Wrenches
Screwdrivers
Contents:
2 - Bedrails (2 pieces each)
2 - Folding frame uprights
1 – Header Bar
3 - Cross-bows. (color-coded to mate up with uprights) 2 are crowned and 1 (rear) is straight
2 sets - front door surround components (color-coded)
6 - Screw in snap studs, Only 5 are used
72" sticky back weather bulb seal
2- Angled windshield header brackets with mounting bolts, wing-bolts, washers and wing-nuts
2 - Black plastic parts and screws for rear window panel crossbar
1 - 53" long 7/8" crossbar
2 - 12" long 3/4" bars
2 - adjustable webbing straps to tension center crossbar
3 - pieces of velcro
1- Softopper canopy
1 - Bottle of seam sealer
1-800-810-7227
www.softopper.com
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Softopper Chevy Blazer Gen1
Summary of Contents for Softopper Chevy Blazer Gen1
- Page 1 2 - Black plastic parts and screws for rear window panel crossbar 1 - 53" long 7/8" crossbar 2 - 12" long 3/4" bars 2 - adjustable webbing straps to tension center crossbar 3 - pieces of velcro 1- Softopper canopy 1 - Bottle of seam sealer 1-800-810-7227 www.softopper.com Page 1...
- Page 2 Re-install circlips. Lay the frame rearward and loosely attach the 3/4" webbing strap hooks to the black plastic parts that were installed on the ends of the bedrails. 1-800-810-7227 www.softopper.com Page 2...
- Page 3 1/8” distance from the rubber windshield seal. Now install the two outer-most snapstuds. A slight bit of force and bending may be required to get the last two studs into the proper location. 1-800-810-7227 www.softopper.com Page 3...
- Page 4 If necessary pull the corners forward and outward slightly and mark location under the snaps with a pencil. They should be very similar to the diagram locations. Please call us at 1-800-810-7227 if you have any questions. Or email us at info@softopper.com www.softopper.com 1-800-810-7227 www.softopper.com...
- Page 5 Returns must be pre-approved and have Softoppers issued RGA number attached. Any defective items must be returned with proof of purchase to Softopper 4843 Pearl St. Unit B Boulder CO 80301, freight pre-paid. Items returned must be carefully packed, in clean condition, with plastic windows protected from scratching and creasing.
- Page 6 Leakage: As with any sewn automotive top there is always a slight risk of leakage. Right out of the box the Softopper will not be waterproof. Water seeping through at the seams may be stopped by applying Seam Sure (supplied), on the inside of the affected seams. Shake Seam Sure well and apply liberally to the inside seams concentrating on areas where needle and thread penetrated the fabric.
