VONETS——WiFi Bridge/Repeater/Router
WiFi Bridge/Repeater/Router

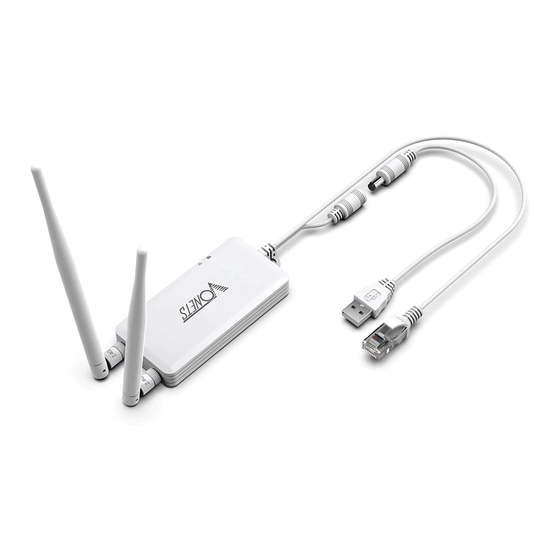

VAP11S/VAP11S-5G
Quick Setting Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VAP11S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vonets VAP11S

  • Page 1 VONETS——WiFi Bridge/Repeater/Router WiFi Bridge/Repeater/Router VAP11S/VAP11S-5G Quick Setting Guide...
  • Page 2 Please configure your product according to the actual web interface. This manual applies to both VAP11S and VAP11S-5G products. The“VONETS device” mentioned in the text can refer to these two products.
  • Page 3: Table Of Contents

    VONETS——WiFi Bridge/Repeater/Router Contents Chapter 1 Application Mode ............................1 1.1 Bridge + Repeater Mode ............................1 1.2 Router Mode ................................2 Chapter 2 Bridge+Repeater Mode Configuration Instruction ..............3 2.1 Device connect ................................. 3 2.2 Bridge+Repeater Application Configuration .................... 3 AP Application Configuration ........................
  • Page 4: Chapter 1 Application Mode

    VONETS——WiFi Bridge/Repeater/Router Chapter 1 Application Mode 1.1 Bridge + Repeater Mode There are three application modes for the bridge mode of VONETS device: WiFi repeater, WiFi bridge and WiFi AP. ⚫ WiFi Repeater: VONETS device as WiFi Repeater, it must be configured to source WiFi hostpot parameters, can be used to extend the wireless signal coverage of existing APs or wifi router .
  • Page 5: Router Mode

    Ethernet cable defaults to the LAN port. WAN and LAN ports are interchangeable. ⚫ VONETS device is used as WiFi router, WAN port can be set to connect to the WiFi hotspot for use as a secondary router, its Ethernet port and Ethernet cable both are LAN...
  • Page 6: Chapter 2 Bridge+Repeater Mode Configuration Instruction

    Chapter 2 Bridge+Repeater Mode Configuration Instruction 2.1 Device connect Power on VONETS device by 5V/2A power supply, then connect to PC, there are two connection ways as below: A. Computer is wired connected to LAN port of VONETS device; (Recommend Method)...
  • Page 7 VONETS——WiFi Bridge/Repeater/Router modes. 1. After computer is connected to VONETS device, open browser, input configured page: http://vonets.cfg (or IP: 192.168.254.254), then press Enter; 2. Input User name and Password in login page (both are “admin”), click “Login” button to enter configured page;...
  • Page 8 Blue Light Green Light Yellow Light VAP11S WiFi Connection Status Light Ethernet Cable Connection Status Light VAP11S-5G System Status Light WiFi Connection Status Light ① VONETS device is not connected to any hotspot, WiFi connection status light will flash quickly;...
  • Page 9: Ap Application Configuration

    AP Application Configuration VONETS device can be configured as an AP application, the wireless terminal device can connect to VONETS device hotspot to connect to the network; however, it is best to change its WiFi name and password for network security.
  • Page 10 At this time, when log in configured page, we suggest you enter configured domain name: http://vonets.cfg. Or in Windows command window, enter the command: ping vonets.cfg, to get the IP address of the device, then log in configuration page by this IP address.
  • Page 11: Chapter 3 Router Mode Configuration Instruction

    Chapter 3 Router Mode Configuration Instruction 3.1 Change device mode 1. Power on VONETS device by 5V/2A power supply, then connect to PC, there are two connection ways as below: A. Computer is wired connected to LAN port of VONETS device;...
  • Page 12: Wan Port Settings

    5. Reboot device: go to “System Settings”-- “Reboot device”, click “Reboot” button, VONETS device will automatically switch to router mode. 3.2 WAN port settings 3.2.1 WAN/LAN exchange In routing mode, the Ethernet port of VONETS device is divided into a WAN port and a LAN port, and WAN/LAN can be interchanged.
  • Page 13: Wan Port Connection Method

    VONETS——WiFi Bridge/Repeater/Router The Ethernet port of VONETS device defaults to WAN port, the Ethernet cable defaults to LAN port, if the interface mode is changed to “WAN/LAN exchange”, the Ethernet cable will be WAN port and the Ethernet port will be LAN port.(This option can keep unchanged);...
  • Page 14: Pppoe Wan Port Wired Connect Network--Pppoe

    In “WAN settings”, select “Basic settings”, change the connection type to “PPPoE (ADSL)”, then enter the Internet account and password provided by the ISP (Internet Service Provider), click the “Apply” button, and reboot VONETS device, then can access to network. 3.2.5 WAN port wireless connect network---- WiFi 1.
  • Page 15 ⚫ The option “The configuration parameters of WiFi repeater security is synchronized with source hotspot” is default ticked, it means the SSID of VONETS repeater is associated with the SSID of the source hotspot, and the WiFi password is the same as the password of the source hotspot;...
  • Page 16: Set Wifi Hotspot Parameters

    LED light.) Remark 3: After VONETS device sets the WAN port to access the WiFi hotspot in the routing mode, its LAN port IP is still 192.168.254.254, and the terminal device also obtains the IP address of the same network segment, can login configuration page by 192.168.254.254 or...
  • Page 17 VONETS——WiFi Bridge/Repeater/Router 2. Revise WiFi password, in “WiFi Repeater”----“WiFi Security”, enter new WiFi password in “Pass Phrase”, click “Apply”; 3. Reboot device, jump to “System Settings”---- “Reboot Device”, click “Reboot”, when it is finished, all revised options will take effort.
  • Page 18: Chapter 4 Other Components And Installation Method

    VONETS——WiFi Bridge/Repeater/Router Chapter 4 Other components and installation method 4.1 Other components 1. Industrial power supply DC connector 2. Industrial chassis track hook kit (VAP11S standard accessories) (VAP11S standard accessories) 3. Antenna extension cable (optional 4. Ethernet port expander (optional accessories) accessories) 4.2 Industrial chassis rail hook kit installation...
  • Page 19: Ethernet Port Expander Installation

    3. Fixed VONETS device on the hook kit; 4.3 Ethernet port expander installation 1. In VONETS device configured page, enable Extended LAN function, go to “LAN Settings”--->“Ethernet Port”--> “Extended LAN”--> “Enable”, then click “Apply” button; 2. Connect the VONETS dedicated Ethernet extender to the Ethernet port of VONETS...
  • Page 20: Appendix Frequently Asked Questions

    Do VONETS device support firmware upgrade, how to upgrade? VONETS devices support firmware upgrade, and support online upgrade, please visit website: www.vonets.com to refer to the related documents The device WiFi hot spot can be found, but the smart phone or PC can’t connect to this device hotspot? ⚫...
  • Page 21 The smart phone or PC has been connected the device by WiFi or Ethernet cable, but user can’t log in the device WEB page, or after log in the WEB it shows error? ⚫ Reason 1. The users don’t use the browser recommended by VONETS(IE,Google Chrome, Safari, the mobile phone browser);...
