Summary of Contents for Trotec TFV 900

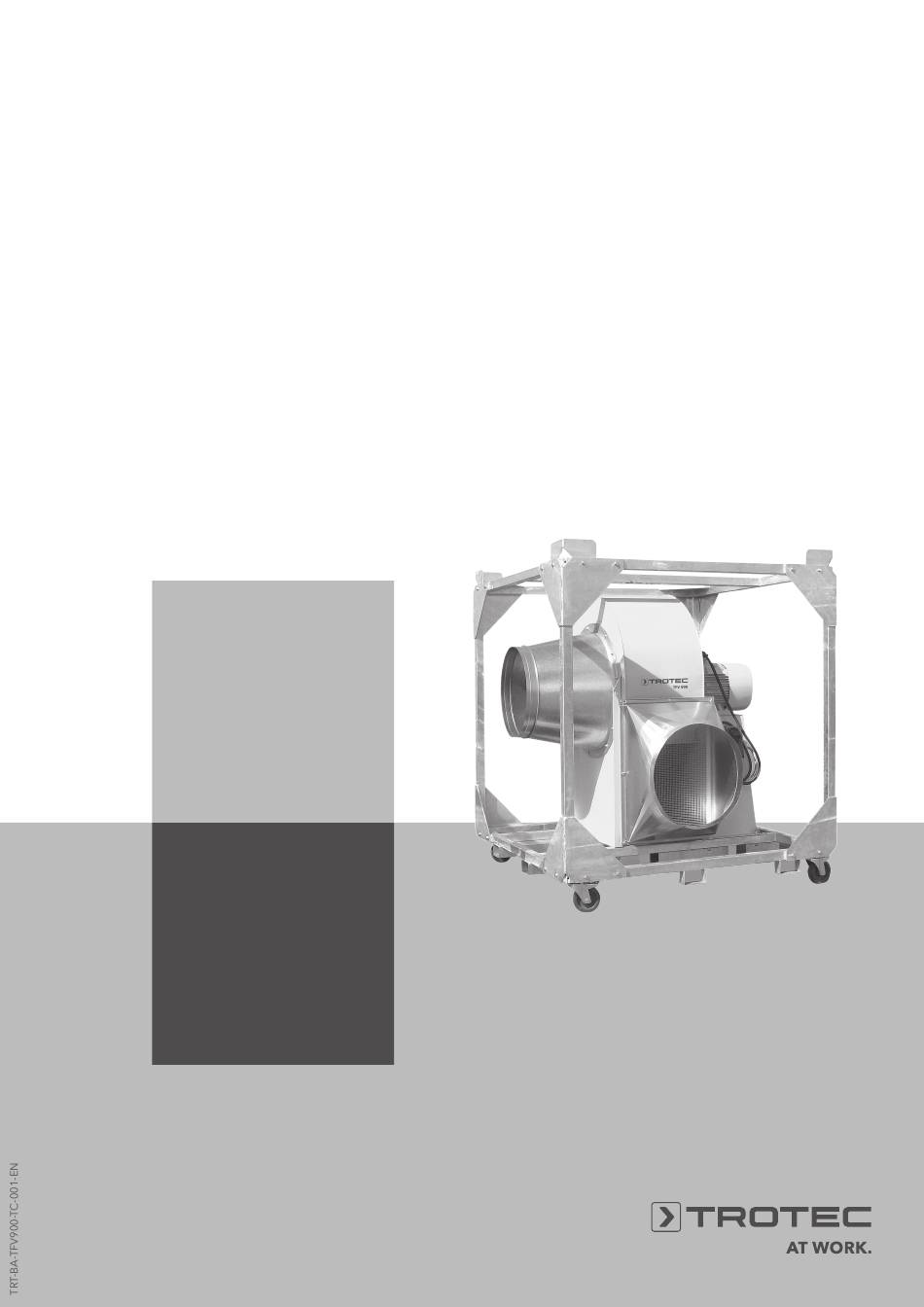

- Page 1 TFV 900 OPERATING MANUAL RADIAL FAN...
-
Page 3: Table Of Contents
Technical annex..............7 The scope of delivery may vary from product images. This document was created with all due care. Trotec accepts no Notes regarding the operating manual liability whatsoever for possible mistakes or omissions. © Trotec... -
Page 4: Safety
Improper use Observe the personnel qualifications! The radial fan TFV 900 is not suited for installation in fluids or on Behaviour in the event of an emergency flooded or boggy grounds. The device must not be used for 1. -
Page 5: Information About The Device

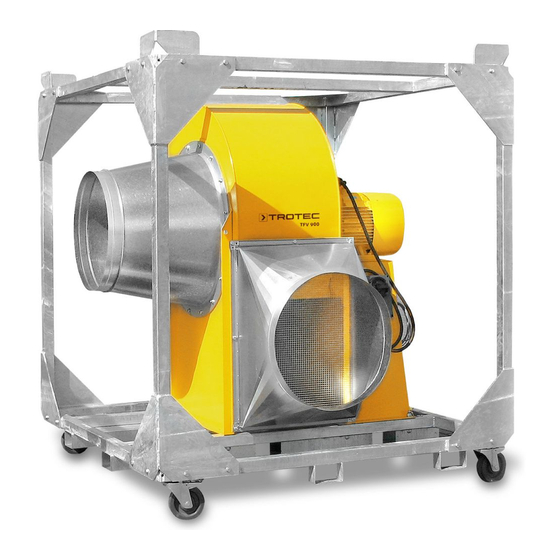

Information about the device Description of the device The high-pressure radial fan TFV 900 conveys up to 25,000 m³/h of air even over long hose distances with high counter-pressure. Freely blowing the devices reaches values of up to 33,600 m³/h. -
Page 6: Transport And Storage
• Compare the values of the power connection to the technical data of the TFV 900. Observe the starting current of the The following should be observed before transporting the device device, the upstream fuse must be dimensioned accordingly. -
Page 7: Operation
Main switch Q1 while switches over to delta. Hence it supplies its Star-delta changeover switch for smooth start-up K1 maximum conveying capacity for continuous operation. Terminals 1...11 Motor protection switch F2 with blue reset button Operating Manual – Radial Fan TFV 900... -
Page 8: Errors And Faults
Errors and faults Maintenance The accurate functionality of the device was tested during Trotec radial fans are designed for long hours of operation with production a number of times. If malfunctions occur nonetheless, minimum maintenance effort. Safe operation of the device... -
Page 9: Technical Annex
- option with frame 920 kg Dimensions (height x width x depth) - without frame 1650 x 1200 x 1770 (mm) - option with frame 2200 x 1950 x 1900 (mm) Wiring diagram Operating Manual – Radial Fan TFV 900... - Page 10 SP air exhaust connection d=600mm 7230000005 SP contactor control TFV 900 7140000122 SP castor TFV900 7600000245 SP changeover switch star-delta K1 TFV 900 7140000120 SP air intake connection TFV 900 d=630mm 7230000003 SP terminals TFV 900 7214000009 SP air intake connection TFV 900 d=600mm...
- Page 11 EN 50081-2 Producer and authorised representative of the technical documentation: Trotec GmbH & Co. KG · Grebbener Straße 7 · D-52525 Heinsberg Phone: +49 2452 962-400 · Fax: +49 2452 962-200 · E-mail: info@trotec.com Managing Director: Detlef von der Lieck Heinsberg, 13 August 2009 Operating Manual –...
- Page 12 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info @ trotec.com www.trotec.com...
