INTRODUCTION
Thank you for choosing Swave ESC, its novel technology provides smoothest and ultra-efficient performance.
Please, read this manual, terms and conditions carefully before installing your new Swave electronic speed controller.
If you are looking for certified motor list, warranty terms and conditions, how to dialogistic esc, all of these answer can
be found in Ensotech Shop under the download sector
If you are looking for supporting motor kv, chassis and characteristic, these can be found in each product descriptions
in https://shop.ensotech.ltd
Here to introduce how to hook up the swave esc, perform calibration and use the SWAVE apps
-Plug-in and solder connections may loose due to vibrations or collisions. Please, ensure secure connections,
otherwise you may experience a short-circuit which will damage the device.
HOOKUP INSTRUCTION

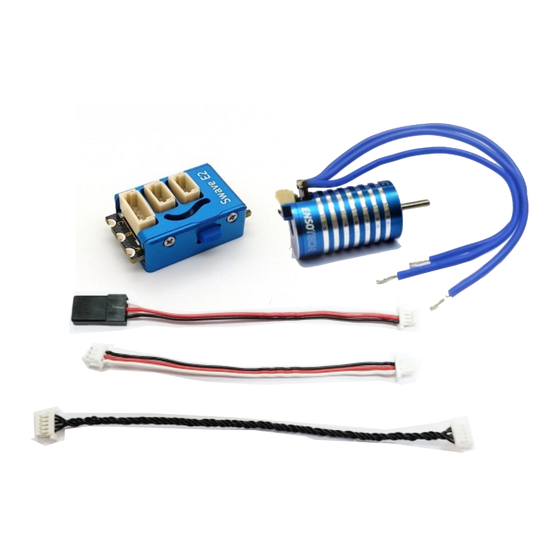

Connect "sensor cable" – a cable between ESC and Ensotech certified sensored motors.
Connect "receiver cable" – a cable between ESC and receiver. We have included two different types of cable plug
(JR & JST) for different type of receivers.
The motor should be well and properly soldered to the ESC for getting full performance from the system and reduce
heating.
Swave E/ E2/W
Connection
ENSOTECH LIMITED
www.ensotech.ltd
HOOK UP - Swave E / E2 / W
MANUAL
C
MTR
B
A
Diagram
SWAVE-E / E2/ W
https://shop.ensotech.ltd
A
B
C
Hall
Throttle
Uart
Android
Link
+
-
Battery
Receiver
Smartphone
Advertisement
Table of Contents
Related Manuals for ENSOTECH SWAVE-E
Summary of Contents for ENSOTECH SWAVE-E
- Page 1 HOOKUP INSTRUCTION Connect “sensor cable” – a cable between ESC and Ensotech certified sensored motors. Connect “receiver cable” – a cable between ESC and receiver. We have included two different types of cable plug (JR &...
- Page 2 For some earlier KO radio system, it may need to reverse the radio throttle direction to active the calibration. Without properly done calibration the ESC can be damaged. Ensotech is not responsible and warranty is not covered if because of the compatibility of radio and transmitter also using non-original factory equipment.
- Page 3 ENSO BLUETH If you are uncertain about your phone, please check with your phone manufacturer, Ensotech cannot guarantee to support every kind of phones. ** ENSO BLUETH Doesn’t support Swave-E ** We are still trying to work out this Bluetooth for IOS system, please be patient ** Always switch off the ESC before connect and disconnect programming devices.
- Page 4 USB into your Android device and wait 2 second for your android device response. If the icon still remains grey, please, recheck all your connections. Connection require the phones / tabs support the latest OTG. Ensotech try to have the most compatibility but we are not guarantee and not responsible to support every devices.
- Page 5 ENSO BLUETH device. ** The response time of telemetry real-time observing depends on your phone processing power, cache memory space, and the wireless transmission speed and signal performance. Ensotech do not guarantee and not responsible to support every devices.
- Page 6 Registration For updating device firmware, you should be a registered user of the Ensotech software management system. If you are already a user of Ensotech To create an account, enter an If you are registered user and software management system, you can...
- Page 7 Settings management Now you can start to manage the settings, press “APPLY” to accept changes After you complete managing the settings, you need to upload all new settings to the ESC, so click the icon on the top left comer. After uploading process, the ESC will perform one beep and turn on a blue LED.
- Page 8 EXPORT / IMPORT SETTINGS CONFIGURATION Swave E App allows you export to a local file and import different settings configuration. When you will save you first configuration in the root directory of the device internal memory will be created the folder “Swave ESC Settings”, all other configurations will be here.
- Page 9 ON or blinks your device works normal otherwise try to update it. If Update does not help, connect our support team: support@ensotech.ltd or contact your dealers. Turbo timing advance and Boost timing advance are BOTH zero –...
- Page 10 Floor, Cheung Hing Shing Centre, No.23 Sha Tsui Road, Tsuen Wan, Hong Kong Tel.: +852-3421 1446 @mail: support@ensotech.ltd / info@ensotech.ltd Ensotech Limited reserves rights to modify such list without notice. In case of disputes, the decision of Ensotech Limited shall be final.
