  • Page 1 PowerPDU 4PS QIG (Quick Installation Guide)

  • Page 2: Safety Notices

    PowerPDU 4PS – Quick Installation Guide (QIG) Thank you for purchasing a product of NETIO products a.s. Before using your product for the first time, please read this short guide to avoid problems with incorrect installation or use. For more information, please see the User's Manual available at http://netio-products.com.

  • Page 3: Package Contents

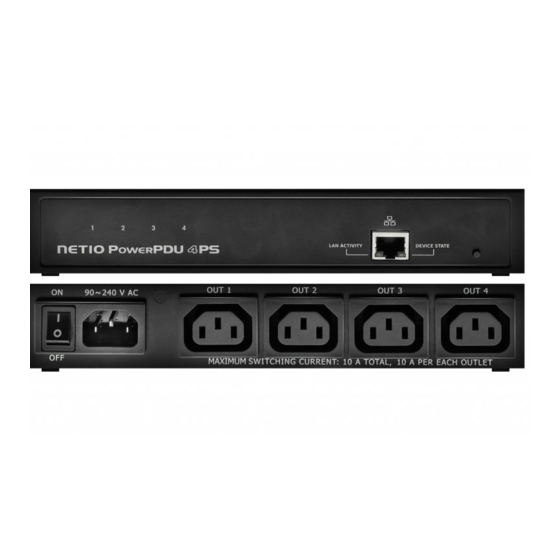

    Package contents:  NETIO PowerPDU 4PS  Quick Installation Guide (QIG)  Input power cable with a plug (cable type indicated on the box) Front view 1) 1x RJ45 LAN jack 2) Output LEDs (lit green when the corresponding output is switched on) 3) RJ45 LEDs –...

  • Page 4: Led And Button Functions

    LED and button functions OUTPUT LEDs [1] to [4] OUTPUT [1, 2, 3, 4] is lit green when Outputs 1 to 4 the output is switched on. RJ45 – green Network Link (lit) + Activity (flashes) 1x flash when the device starts RJ45 –...

  • Page 5: Before The First Use

    7) If you are not using a DHCP server, the device will be accessible at http://192.168.1.78 after 90 seconds. 8) If your network uses a DHCP server, simply click the IP address in any NETIO Discover version and open the web interface.

  • Page 6: Web Interface

    WEB interface The default username / password combination is admin / admin.

  • Page 7: Specifications

    Micro-disconnection (µ) (resistive load), SPST Output relay 1E5 switching cycles, max. 1.5 kV pulse voltage Switch heat and fire resistance class 1 NETIO 4PS interfaces 1x Ethernet RJ-45 10/100 Mbit/s IP30, protection rating = class 1 Operating temperature -20°C to +75°C Device rated for pollution degree 2.

  • Page 8: Declaration Of Conformity

    DECLARATION OF CONFORMITY Manufacturer/Importer: NETIO products a.s. U Pily 3/103 Address: 143 00 Praha 4, Czech Republic Product: PowerPDU 4PS RTTED: The product mentioned above to which this declaration relates is in conformity with the essential requirements and other relevant requirements of the R&TTE Directive (1999/5/EC).
  • Page 9 – Discover for MS Windows – Discover JAVA version Network mode Default LAN Cable DHCP client / Static IP 192.168.1.78 NETIO Configuration DHCP - If not found within 90 s, Static IP separate (default) network) is used. Default Web password Username: “admin”, password: “admin”...
