- Page 1 POWERED MIXER POWERED MIXER Owner’s Manual Owner’s Manual Quick Guide Pages 7 to 11 Making the Most of Your Mixer Pages 12 to 18...
-
Page 2: Important Safety Instructions
CAUT IO N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The above warning is located on the rear of the unit. IMPORTANT SAFETY INSTRUCTIONS Read these instructions. - Page 3 (vents, etc.) If this happens, turn off the power immediately and unplug the power cord from the AC outlet. Then have the device inspected by qualified Yamaha service personnel. • Do not use the speakers or headphones for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss.
-
Page 4: About This Manual
Specifications and descriptions in this owner’s manual are for information purposes only. Yamaha Corp. reserves the right to change or modify products or specifications at any time without prior notice. -
Page 5: Table Of Contents

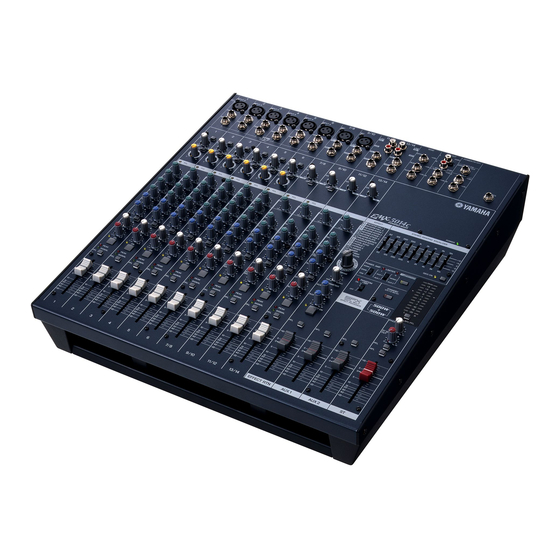

Thank you for your purchase of this Yamaha EMX5014C powered mixer. Please read through this man- ual carefully before beginning use, so that you will be able to take full advantage of your mixer’s super- lative features and enjoy trouble-free operation for years to come. After reading the manual, please store it in a safe place. -
Page 6: Features
Features Input Channels ... page 19 The EMX offers eight monaural mic/line input channels (1 to 9/10) and four stereo input channel pairs (7/8 to 13/14), allowing you to freely mix inputs from micro- phones, line-level devices, and stereo devices. For example, you can mix six micro- phones with four stereo devices, or eight microphones with two stereo synthesizers. -
Page 7: Mixer Basics
Mixer Basics Quick Guide Getting Sound to the Speakers We begin by connecting up two speakers and generating some stereo output. Note that opera- tions and procedures will vary somewhat according to the input devices you are using. Connect up the speakers and your input devices (microphones, instruments, etc.). - Page 8 Mixer Basics Quick Guide 2,10 Turn the Channel faders and the ST Master fader all the way down. Set the POWER AMP switch to its upper position (to L-R). For information about this switch, see page 25. If you have connected input devices to channels 1 to 6, set the [26dB] switch ON ( each channel accordingly.
- Page 9 Turn on the power. First turn on the power to all connected devices other than powered speakers and amp, and then turn on the EMX itself. If using powered speakers or amps, turn these on last. NOTE To prevent an unpleasant burst of noise from the speakers, you should power up the sound sources first, and then the other devices in order of their dis- tance from the source (starting with the closest).
-
Page 10: Adding Some Reverb
Mixer Basics Quick Guide Adding Some Reverb You can use the reverb effect to simulate the sound of a concert hall or jazz club. Turn the PROGRAM dial to select the desired effect type. To select a reverb effect, turn the dial to any value from 1 to 7. To turn on the effector, set the EFFECT ON switch to its ON position ( The switch lights up when turned on. -
Page 11: Using The Compressors To Enhance Vocals
Using the Compressors to Enhance Vocals The compressor evens out the input level, reducing the level of loud passages and bringing up softer passages. The result is a cleaner sound where nuances remain audible and the lyrics are easier to hear. Adjust the COMP knobs on the relevant channels. -
Page 12: Making The Most Of Your Mixer
Mixer Basics Making the Most of Your Mixer An Introduction You’ve got yourself a mixer and now you’re ready to use it. Just plug everything in, twiddle the controls, and away you go … right? Well, if you’ve done this before you won’t have any problems, but if this is the first time you’ve ever used a mixer you might want to read through this little tutorial and pick up a few basics that will help you get better performance and make better mixes. -
Page 13: Balanced, Unbalanced-What's The Difference
Balanced, Unbalanced—What’s the Difference? In a word: “noise.” The whole point of balanced lines is noise rejection, and it’s something they’re very good at. Any length of wire will act as an antenna to pick up the random electromagnetic radiation we’re constantly surrounded by: radio and TV signals as well as spurious electromagnetic noise generated by power lines, motors, electric appliances, computer monitors, and a variety of other sources. -
Page 14: A Balanced Cable Has Three Conductors
Mixer Basics Making the Most of Your Mixer A balanced cable has three conductors: 1) A ground conductor which carries no signal, just the “ground” or “0” reference against which the signal in the other conductors fluctuates. 2) A “hot” or “+” conductor which carries the normal-phase audio signal. 3) A “cold”... -
Page 15: Making Better Mixes
Mixer Basics Making the Most of Your Mixer Making Better Mixes Approaching the Mix—Where Do You Start? Mixing is easy, right? Just move the faders around until it sounds right? Well, you can do it that way, but a more systematic approach that is suited to the material you’re mixing will produce much better results, and faster. -
Page 16: To Eq Or Not To Eq
Mixer Basics Making the Most of Your Mixer To EQ or Not to EQ In general: less is better. There are many situations in which you’ll need to cut certain frequency ranges, but use boost sparingly, and with caution. Proper use of EQ can eliminate interference between instruments in a mix and give the overall sound better definition. -
Page 17: Ambience
Ambience Your mixes can be further refined by adding ambience effects such as reverb or delay. On the EMX mixers these effects are built in. The internal DSP (Digital Signal Processor) can be used to add reverb or delay to individual channels in the same way as external effects processors, with the extra connections required by, or the loss in sound quality often caused by external processing. -
Page 18: Compression
Mixer Basics Making the Most of Your Mixer Compression Have you ever wondered why professionally produced recordings sound so different from your own? There are numerous reasons, of course, but one important factor is the judicious use of compression. One form of compression known as “limiting” can, when properly used, produce a smooth, unified sound with no excessive peaks or distortion. -
Page 19: Reference
Reference Front & Rear Panels Controls on Each Channel Channels Channels 1 to 6 7/8 and 9/10 (Monaural) (Stereo) INPUT A and INPUT B jacks (Channels 1 to 6) You can connect an input source to either jack. Be sure to set the [26 dB] switch 4 to match the type of device Channels you are connecting. - Page 20 These are TRS (tip, ring, sleeve) phone jacks that support bidirectional operation. Connection to an INSERT I/O jack requires a special NOTE separately-sold insertion cable—such as the Yamaha YIC025, YIC050, or YIC070—as shown below. To the INSERT I/O jack Sleeve (Ground)
- Page 21 FCL (Feedback Channel Locating) lamp (Channels 1 to 9/10) This lamp is used during setup to identify any channel that might be howling. Check these lamps when setting up for a performance. If the lamp lights up, adjust the channel’s equalizer 9 or channel fader H to reduce the level so that the lamp goes off.
-
Page 22: Digital Effects Section
Reference Front & Rear Panels Digital Effects Section EMX5014C Owner’s Manual SEND Jack • EFF This unbalanced phone output jack outputs the signal from the EFFECT bus. You use this jack, for example, to connect to an external effector. You can then return the signal by connecting the external effector to any of the LINE jacks on channel pairs 7/8 to 13/14. - Page 23 EFFECT ON Switch/Indicator Switches use of the internal effect on or off. The inter- nal effect is applied only if this switch is turned on. To set the switch on, press it in so that it lights up. As an alternative to the ON switch, you can use a sepa- rately sold FC5 foot switch to toggle the effector on and off.
-
Page 24: Master Section
Reference Front & Rear Panels Master Section EMX5014C Owner’s Manual REC OUT Jacks These RCA pin-type unbalanced output jacks can be used to send the main stereo signal to an external DAT recorder or cassette recorder. The jacks output the ste- reo signal pre adjustment by the ST master fader g and graphic equalizer V. - Page 25 AUX2 bus. Volumes can be adjusted using the AUX1 and AUX2 faders, respectively. YS Processing Switch This switch turns Yamaha Speaker Processing on or off. The processor adjusts the speaker’s bass ranges so as to compensate, for example, for a lack of subwoof- ers.
- Page 26 Reference Front & Rear Panels EMX5014C Owner’s Manual PFL (Pre-Fader Listen) Switch Set this switch on if you want to monitor the pre-fade of the signal that is being output at the ST OUT or ST SUB OUT jacks. If the switch is on, the signal (prior to adjustment by the ST master fader and ST SUB con- trol) is fed to the PFL bus so that it can be monitored at the PHONES jack.
-
Page 27: Rear Panel
Rear Panel SPEAKERS jacks Use these jacks to connect to speakers. Note that the output directed to these jacks varies according to the setting of the POWER AMP switch Y. A1, B1: NEUTRIK NL4 Speakon outputs. Polarities are as shown below. Neutrik Plug A1 and B1 Connectors 1–... -
Page 28: Speaker Connections
Reference Speaker Connections When making 2-channel and 2-channel parallel connections to the SPEAKERS jacks, be sure that the impedance of your speakers meets the conditions indicated below. Note that actual speaker impedance varies according to the connection method and the number of speakers. When making connections, be sure that your cables have the appropriate ratings and the correct plugs. -
Page 29: Rack Mounting
Reference Rack Mounting Rack Mounting To prepare the unit for rack mounting, use the (separately sold) RK5014 rack mount kit. If rack-mounting the unit, be sure to maintain adequate ventilation so the unit does not overheat. Consider attaching a vent panel, and do not use a sealed rack. -
Page 30: Setup
ST OUT, ST SUB OUT, or AUX 1/2 jacks, and then con- necting speakers to the power amp. Recorder Foot Switch Headphones (YAMAHA FC5) Effect processor (delay) Power Amp Power Amp Subwoofer... -
Page 31: Troubleshooting
❑ Check that the speaker cables are not shorted. ❑ If the above checks do not identify the problem, call Yamaha for service. (Refer to page 36 for a list of Yamaha dealers.) ❑ Are the GAIN controls, channel faders, ST master fader, and AUX1/2 fad- ers set to appropriate levels? ❑... -
Page 32: Specifications
Reference Specifications ■ General Specifications Maximum Output Power (SPEAKERS) (ST, ST SUB, AUX, EFFECT) +14dBu output into 600 ohms Total Harmonic Distortion (THD+N) 20 Hz-20 kHz Frequency Response (ST, ST SUB, AUX, EFFECT) GAIN at minimum level, PAD=OFF, 20Hz-20kHz, EIN=Equivalent Input Noise Residual Output Noise Crosstalk @ 1kHz Maximum Voltage Gain... -
Page 33: Input Characteristics
Reference Specifications ■ Input Characteristics Input Terminals GAIN CH INPUT A –60 dB 0 dB –16 dB –34 dB 26 dB +10 dB CH INPUT B –60 dB 0 dB –16 dB –34 dB 26 dB +10 dB ST CH INPUT B –60 dB 7/8-9/10 –... -
Page 34: Dimensional Diagrams
Reference Specifications Dimensional Diagrams 444 (440 excluding screw heads) Unit: mm EMX5014C Owner’s Manual... -
Page 35: Block Diagram And Level Diagram
Reference Specifications Block Diagram and Level Diagram 10kHz 8kHz 4kHz 2kHz 1kHz 500Hz 250Hz 125Hz 63Hz R/AFL L/AFL EFFECT(NON-MUTE) 2(NON-MUTE) 1(NON-MUTE) R(NON-MUTE) L(NON-MUTE) EFFECT(MUTE) 2(MUTE) 1(MUTE) R(MUTE) L(MUTE) Gain Gain Gain EMX5014C Owner’s Manual... - Page 36 For details of products, please contact your nearest Yamaha representative or the authorized distributor listed below. Pour plus de détails sur les produits, veuillez-vous adresser à Yamaha ou au distributeur le plus proche de vous figurant dans la liste suivante.
- Page 37 Yamaha Pro Audio global web site U.R.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation http://www.yamahaproaudio.com/ © 2005 Yamaha Corporation Yamaha Manual Library WG13770 702CRAPx.x-04C0 http://www.yamaha.co.jp/manual/ Printed in China...
