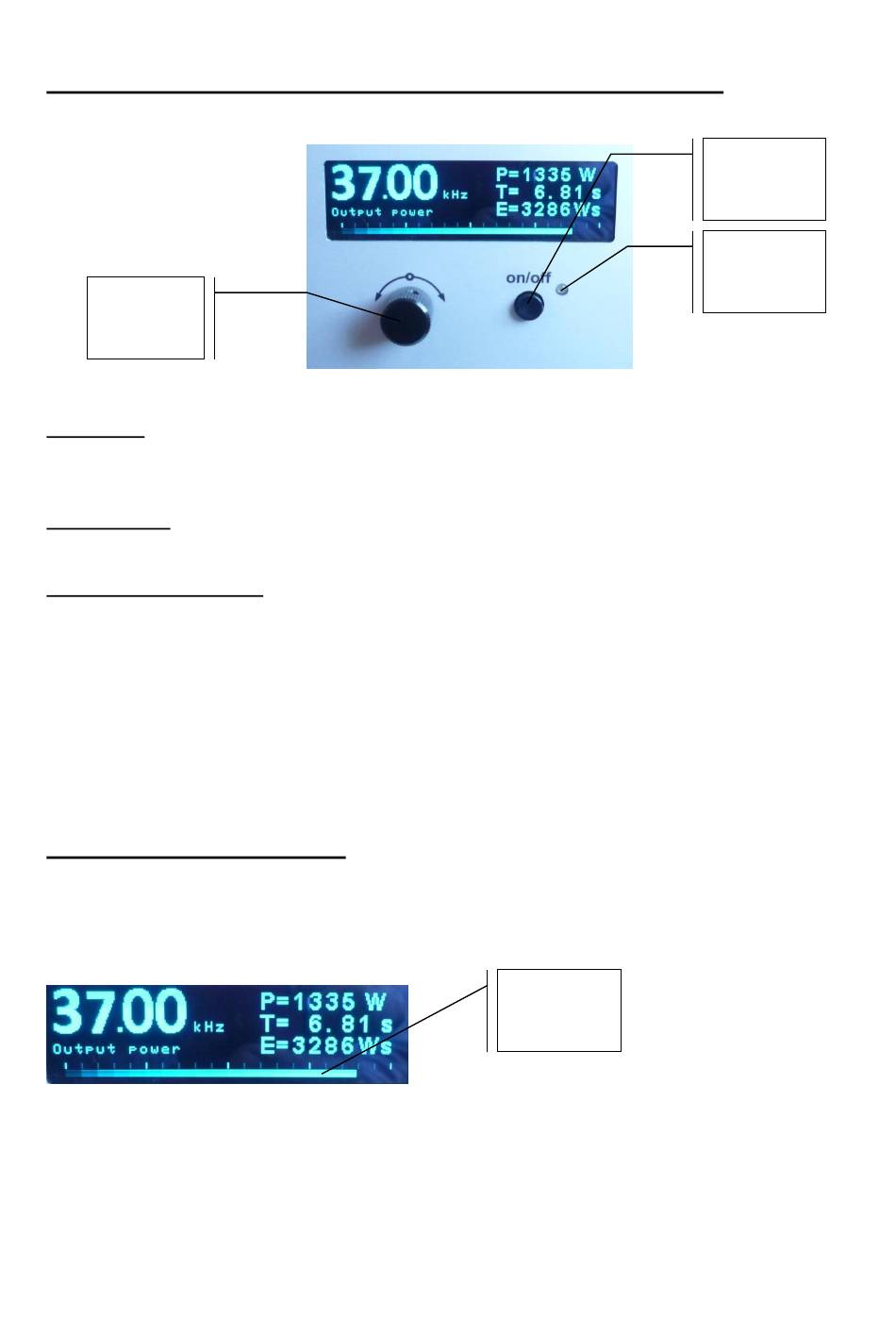

Operator elements and display on the front panel

Rotary
Encoder &
Push Button
Bicolour LED: Lights up
Lights up
ON/OFF button: The functionality of the button could be selected from System window (6) or in LabView
software PROPERTIES tab.
Rotary Encoder & Push Button
Multifunction button:

Main starting window

After the generator is powered on, the initial screen contains the following status information.
Freq – Actual frequency of the generator.
P = Power – Actual consumed power (in Watts)
T = Time – time when generator is on (s)
E = Energy – Energy consumed by the generator (Ws)
Dynamic bar shows the Output Power Value.
green when generator is switched on and works properly
red in the event of an error
1. By pressing the encoder you can move the cursor and select parameters
on the current window;
2. By rotating you can change the value of the current parameter.
3. By press + hold for 2 seconds, you will WRITE TO MEMORY all present
settings of the generator.
4. Fast double pressing returns to the main starting window.
Dynamic
bar
Button
ON/OFF
Bicolour LED
