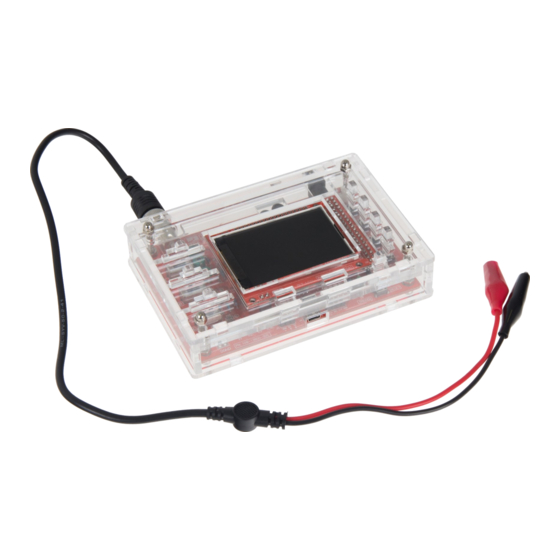

DSO-138 Oscilloscope

Ausgabe 18.01.2017

Need help?

Do you have a question about the DSO-138 and is the answer not in the manual?

Page 2 DSO-138 Oscilloscope Index Technical specification Usage Security informations Ausgabe 18.01.2017 Copyright by Joy-IT...
Page 3: Technical Specification
Dear customer, thank you for purchasing our product. Please find our instructions below. Technical specification The DSO-138 offers the fundamental functions of an oscilloscope and shall impress with its simplicity. Max. sample raze 1 MSa/s Analog bandwith 0 – 200 KHz Sensitivity range 10mV / div –...
Page 4 Usage The DSO-138 oscilloscope is ready to use and does‘t need any further configurations. Please note the connection-diagram below: [CPL]: Switch between zwischen AC, DC und GND [SEN1]: first sensitivity setting [Sen2]: second sensitivity setting [OK]: Stop current view [+] / [-]: Configure the [SEL] parameter [SEL]: choose parameter Ausgabe 18.01.2017...
Page 5 Oscilloscopes are using triggers as refference-points to display a stable wave-form. Auto-Mode: Display is refreshed automatically. The triggers are not influecing this. Normal Mode: Display is refreshed by triggers. Single Mode: Display is refreshed by a trigger and switches to HOLD. Ausgabe 18.01.2017 Copyright by Joy-IT...
Page 6 This is no toy and small parts can be swallowed and lead to death. We can not ensure a perfect function by using third-party supplies. The device can be damaged by higher voltage and could cause fire or lead to damage by an electric shock. Ausgabe 18.01.2017 Copyright by Joy-IT...
