JT-HD35
USB load resistance
1. GENERAL INFORMATION
Dear customer,
thank you for choosing our product. In the following, we will show you how
to use your product.
Should you encounter any unexpected problems during use, please do not
hesitate to contact us.

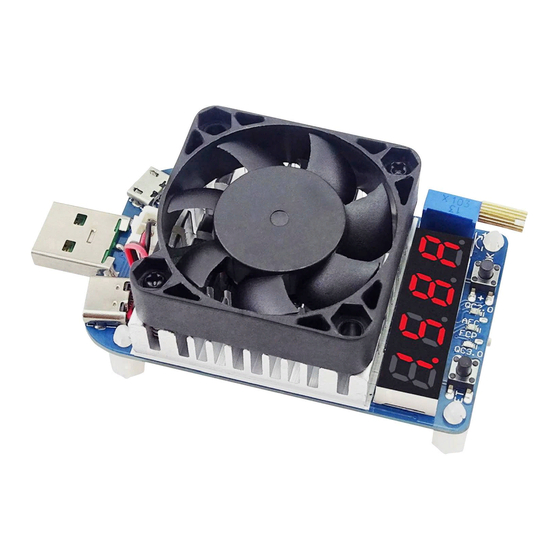

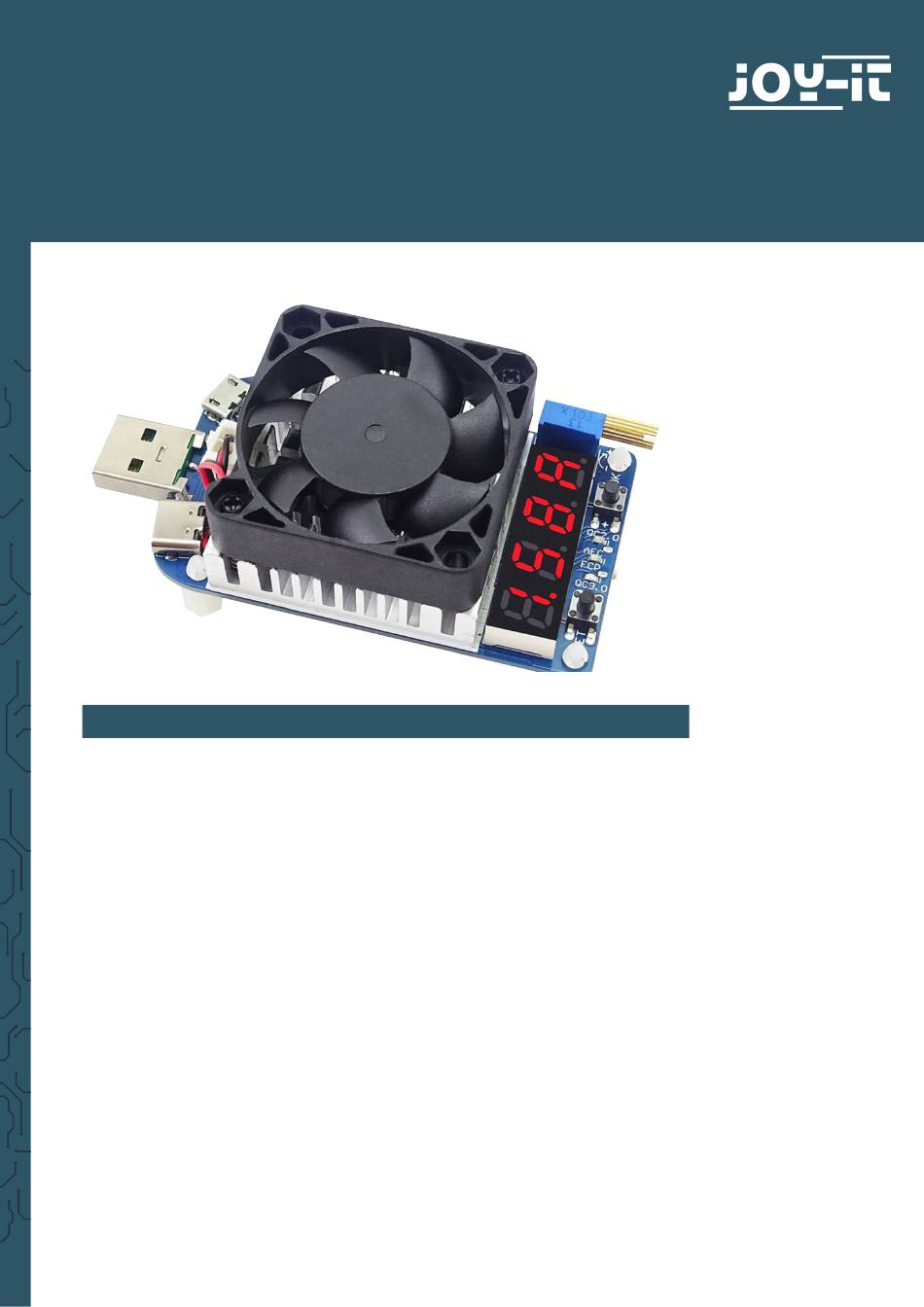

This USB load resistance suits perfectly for example to test how much power
your USB charging unit really has. The load resistance can be powered with
up to 35 W. The current can be adjusted with a built-in trimmer.
On the LCD display, the current current is shown. With the help of the
buttons, the load can be switched on and off.
Moreover, the load resistance is capable to simulate and to recognize
automatically different charging electronics (QC2.0( 5 V, 9 V, 20 V), QC3.0,
FCP, AFC 9 V).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JT-HD35 and is the answer not in the manual?

Questions and answers

Related Manuals for Joy-it JT-HD35

Summary of Contents for Joy-it JT-HD35

  • Page 1 JT-HD35 USB load resistance 1. GENERAL INFORMATION Dear customer, thank you for choosing our product. In the following, we will show you how to use your product. Should you encounter any unexpected problems during use, please do not hesitate to contact us.

  • Page 2: Technical Details

    2. TECHNICAL DETAILS operating voltage 4 - 25 V operating current 0.25 - 5 A power 35 W 4 digit display mode segment display fan speed 8000 RPM ± 10 % USB2.0, micro-USB, connections USB Typ-C dimensions 81 x 41 x 28 cm weight 52 g 3.
  • Page 3 4. FUNCTIONS 1. Functions for protection: OVP (over voltage protection): over voltage protection by 25 to 30 V, the LED display shows “OVP“ like the picture below. OTP (over temperature protection): with a temperature of over 80 °C the LED display shows “OTP“. OPP (over power protection): With a power of over 35 W the LED display shows “OPP“.

  • Page 4: Usage Of Device

    5. USAGE OF DEVICE 1. Adjusting of current Through the spinning clockwise of the regulator, the current increases and with spinning counterclockwise, the current decreases. 2. Adjust the status of the LED display Press “SET“ to adjust the status of the LED display. Press again “SET“...
  • Page 5 Samsung AFC 9V: display shows “AFC9“ (blue LED glows) Huawei FCP: display shows “FCP9“ (blue LED glows) AUTO: dispaly shows “AUTO“ (all LEDs glow) SET / - button: press: Initiate the voltage of the current quick charger mode to trigger or to switch. hold down: Record current quick charger status and closes and opens AUTO...

  • Page 6: Other Information

    Simac GmbH, Pascalstr. 8, D-47506 Neukirchen-Vluyn -Possibility of restitution nearby : We send you a parcel stamp with which you can send us your device free of charge. For this, you must contact us per email at service@joy-it.net or per telephone. Information about package: Please package your old appliance safe during transport.
  • Page 7 8 . SUPPORT If any questions remain open or problems arise after your purchase, we are available by email, telephone and ticket support system to answer these. E-Mail: service@joy-it.net Ticket-System: http://support.joy-it.net Telephone: +49 (0)2845 98469 – 66 (10 - 17 o‘clock) For more information visit our website: www.joy-it.net...
