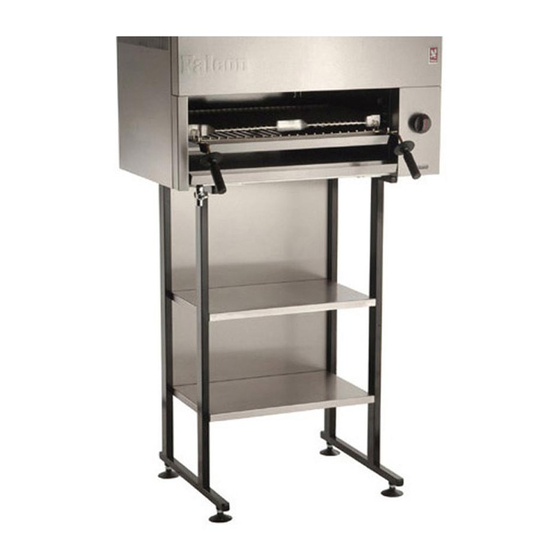

G2522 Grill
Installation and Servicing
Instructions
The appliance must be installed and serviced by a qualified person as stipulated by the Gas
Safety (Installation & Use) Regulations.
IMPORTANT
The installer must ensure that the installation of the appliance is in conformity with these instructions and
National Regulations in force at the time of installation. Particular attention MUST be paid to:
Gas Safety (Installation & Use) Regulations
Health And Safety At Work etc. Act
Local and National Building Regulations Fire
Precautions Act
The appliance has been CE-marked on the basis of compliance with the Gas Appliance Directive for the
Countries, Gas Types and Pressures as stated on the data plate.
WARNING
On completion of the installation, these instructions should be left with the Engineer-in-Charge for reference
during servicing. Further to this, The Users Instructions should be handed over to the User, having had a
demonstration of the operation and cleaning of the Appliance.
IT IS MOST IMPORTANT THAT THESE INSTRUCTIONS BE CONSULTED BEFORE INSTALLING AND
COMMISSIONING THIS APPLIANCE. FAILURE TO COMPLY WITH THE SPECIFIED PROCEDURES
MAY RESULT IN DAMAGE OR THE NEED FOR A SERVICE CALL.
PREVENTATIVE MAINTENANCE CONTRACT
In order to obtain maximum performance from this unit we would recommend that a maintenance contract
be arranged with SERVICELINE. Visits may then be made at agreed intervals to carry out adjustments and
repairs. A quotation will be given upon request to the contact numbers below.
WEEE Directive Registration No. WEE/DC0059TT/PRO At end of unit life,
dispose of appliance and any replacement parts in a safe manner, via a licensed
waste handler.
Units are designed to be dismantled easily and recycling of all material is
encouraged whenever practicable.
Falcon Foodservice Equipment
HEAD OFFICE AND WORKS
Wallace View, Hillfoots Road, Stirling. FK9 5PY. Scotland.
SERVICELINE CONTACT
Phone: 01438 363 000
TO PREVENT SHOCKS, ALL APPLIANCES WHETHER
:
GAS OR ELECTRIC, MUST BE EARTHED.
Fax: 01438 369 900
Detailed recommendations are contained in
Institute of Gas Engineers published documents:
IGE/UP1, IGE/UP/2
BS6173 and BS5440
T100576 Ref. 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G2522 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Falcon G2522

Summary of Contents for Falcon G2522

  • Page 1 G2522 Grill Installation and Servicing Instructions The appliance must be installed and serviced by a qualified person as stipulated by the Gas Safety (Installation & Use) Regulations. IMPORTANT The installer must ensure that the installation of the appliance is in conformity with these instructions and National Regulations in force at the time of installation.
  • Page 2 IMPORTANT INFORMATION Warranty Policy Shortlist Warranty does not cover :- • Correcting faults caused by incorrect installation of a product. • Where an engineer cannot gain access to a site or a product. • Repeat commission visits. • Replacement of any parts where damage has been caused by misuse. •...

  • Page 3: Section 1 - Installation

    (mm) (mm) (mm) (kg) Conn. G2522 Rp½ The grill may be mounted on any of the following options – Bench Legs, floor stand or wall bracket Siting There must be 150mm clearance all around the grill from any combustible wall or object liable to damage when overheated.
  • Page 4 Not applicable to this appliance Water Supply Not applicable to this appliance. Heat Inputs - Natural (I h) and Propane (I Natural (I Propane (I Model Btu / hr Btu / hr G2522 13.2 49,500 13.2 49,500 Full Low/ 25,500 25,500 turndown Pilot 0.25...

  • Page 5: Section 2 - Assembly And Commissioning

    Burner G2522 2.1.2 Appliance Mounting Accessories Details of various mounting options can be obtained by contacting Falcon Sales, distributor or place of purchase. Refer to the individual instructions supplied with the individual means of mounting. Adherence to positioning clearances indicated in Section 1.2 of this manual is mandatory.
  • Page 6 Connection to the Gas Supply Installation should be carried out in accordance with the various regulations listed on the cover of this document. On NATURAL gas appliances, the adjustable governor supplied, MUST be fitted to gas circuit and securely fixed in a position that enables adjustment to be carried out during commissioning. PROPANE appliances do not require a governor.

  • Page 7: Section 3 - Servicing And Conversion

    Whilst grill is lit, test all integral gas carrying joints and components for gas soundness. Use a suitable leak detection fluid. TURN OFF gas control tap. REMOVE pressure gauge and replace test point sealing screw. ENSURE THAT A GAS TIGHT JOINT IS MADE. Re-assemble all panels and components removed during installation and commissioning.
  • Page 8 g) The burners without pilot bracket may now be removed from injector seating. h) To remove burner with pilot, lift upwards from injector seating, undo the two fixings holding in the pilot bracket and lift burner clear. Removal of Injector Following removal of burner, the injector may be cleaned or replaced as desired.

  • Page 9: Section 4 - Spares

    Governor 3.7.1 General The governor will normally require little servicing. Before proceeding with any inspection or servicing, TURN OFF THE GAS AT ISOLATING COCK. 3.7.2 Procedure Check and if necessary, clear air breather hole of any blockage. Ensure valve and seating are clean and that diaphragm is in good condition.
