Complete Teardown, Cleaning, and
Reassembly of the Olympus BH‐2
All rights reserved. This document may not be reproduced or distributed, in whole or in part, for any commercial
purpose without the express written consent of the author (carlh6902@gmail.com). Permission is hereby granted to
distribute this PDF document in its entirety for personal, non‐commercial purposes only, provided that the contents are
not modified in any way, including the copyright notices contained herein. This document may be freely distributed on
WWW, FTP, or BBS sites in accordance with these restrictions. The content of this document is provided for
informational purposes only, with no expressed or implied warranties whatsoever, including, but not limited to,
function, suitability, safety, accuracy, or completeness of information.
Revision
1
2
Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block
Sliding Focus Block
Copyright © 2017, 2018 Carl Hunsinger
Description of Changes
*** Initial Release ***
Added removal procedure for the bottom dust guard and made minor revisions.
(Revision 2)
Revision History
Date
September 4, 2017
April 13, 2018
Revision 2
Page 1 of 23
Advertisement
Table of Contents
Related Manuals for Olympus BH-2 Series
Summary of Contents for Olympus BH-2 Series
- Page 1 Revision History Revision Description of Changes Date 1 *** Initial Release *** September 4, 2017 2 Added removal procedure for the bottom dust guard and made minor revisions. April 13, 2018 Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 1 of 23...
-
Page 2: Table Of Contents
Remove the Guide Rails from the Arm Casting ........................ 10 Remove and Reinstall the Bottom Dust Cover ........................ 11 Remove the Guide Rails from the Focus Block ......................... 11 Remove the Guide Rails from the Guide Block ......................... 12 Clean the Cylindrical Rollers .............................. 12 Reassemble the Sliding Focus Block ............................ 12 Reinstall the Guide Rails into the Arm Casting ......................... 12 Reinstall the Guide Rails into the Focus Block ........................ 13 Reinstall the Guide Rails into the Guide Block ........................ 13 Apply Grease to the Guide Rails (Optional) ........................ 14 Place the Guide Block into Position on the Focus Block .................... 14 Place Cylindrical Rollers onto Lower Guide Rails of Arm .................... 14 Place Focus Block Assembly onto Cylindrical Rollers ...................... 15 Place Cylindrical Rollers onto the Upper Guide Rails ...................... 15 Mount the Guide Block into Position .......................... 16 Adjust for No Lateral Play in the Sliding Focus Block ...................... 16 Secure the Guide Block in Position ........................... 17 Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 2 of 23... - Page 3 Test the Focus Block for Freedom of Motion ........................ 17 Reinstall the Trim Cover .............................. 17 Reinstall the Arm onto the Base ............................ 18 Reinstall the Electrical Base .............................. 18 Continue with the Coaxial Focus Overhaul ........................... 19 Original Olympus Documentation ............................ 19 How to Contact the Author .............................. 19 Appendix 1 – How to Install Guide Rails in the Sliding Focus Block Mechanism .............. 20 Placement of Guide Rails in the Side Grooves ........................ 20 Holding the Guide Rails in Place for Reassembly ...................... 20 Reinstalling Guide Rails into the Guide Block ........................ 20 Clean the Old Grease from the Slide Parts ........................ 20 Apply Heavy Grease to Both Ends of the Guide Block ...................... 20 Set the Guide Rails into the Greased Guide ........................ 21 Clean Grease after Reinstalling the Guide Rails ........................ 21 The Prepared Guide Block is Ready to be Reinstalled ...................... 22 Appendix 2 – Sources for Replacement Tools and Supplies Referenced In this Document .......... 23 Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 3 of 23...
- Page 4 Figure 27 – Soak the rollers in solvent to remove grease ..................... 12 Figure 28 – Reinstall the long guide rails into the arm ...................... 12 Figure 29 – Scrub grease from guide rails and arm ...................... 12 Figure 30 – Guide rails installed into the arm casting ...................... 13 Figure 31 – Reinstall short guide rails into the focus block .................... 13 Figure 32 – Scrub grease from guide rails and focus block .................... 13 Figure 33 – Guide rails installed into the focus block ...................... 13 Figure 34 – Reinstall short guide rails into the guide block .................... 13 Figure 35 – Scrub grease from guide rails and guide block .................... 13 Figure 36 – Guide rails installed into the guide block ...................... 14 Figure 37 – Reinstall the brass shims onto the focus block .................... 14 Figure 38 – Clean exposed grease from the focus block ...................... 14 Figure 39 – Reinstall guide block onto the focus block ...................... 14 Figure 40 – Loosely engage screws with the wedge nuts ..................... 14 Figure 41 – Place rollers and rod onto bottom guide rails .................... 15 Figure 42 – Place focus block assembly onto rollers ...................... 15 Figure 43 – Withdraw the guide block about halfway ...................... 15 Figure 44 – Place four rollers on the upper guide rails ...................... 15 Figure 45 – Push cylindrical rollers into guide‐rail channel .................... 15 Figure 46 – Push the spacer rod into guide‐rail channel ...................... 16 Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 4 of 23...
- Page 5 Figure 53 – Reposition trim cover onto the arm casting ...................... 17 Figure 54 – Reinstall screws to secure the trim cover ...................... 17 Figure 55 – Place the arm flat on the work surface ...................... 18 Figure 56 – Align holes in the base with holes in the arm .................... 18 Figure 57 – Attach the base onto the arm of the stand ...................... 18 Figure 58 – Secure the arm onto the base of the stand ....................... 18 Figure 59 – Reinstall screws to secure the electrical base .................... 18 Figure 60 – The Olympus BH2 (BHS) repair manual ...................... 19 Figure 61 – Correct orientation of the guide rails ......................... 20 Figure 62 – Thoroughly clean the guide rails ........................ 20 Figure 63 – Thoroughly clean the guide block ........................ 20 Figure 64 – Apply grease to both ends of the guide block .................... 21 Figure 65 – Place first guide rail into the guide block ...................... 21 Figure 66 – Set the first guide rail into the grease ........................ 21 Figure 67 – Place second guide rail into the guide block ...................... 21 Figure 68 – Set the second guide rail into the grease ...................... 21 Figure 69 – Scrub any visible grease from the guide rails ..................... 21 Figure 70 – Prepared guide block ready for reinstallation .................... 22 Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 5 of 23...
-
Page 6: Introduction

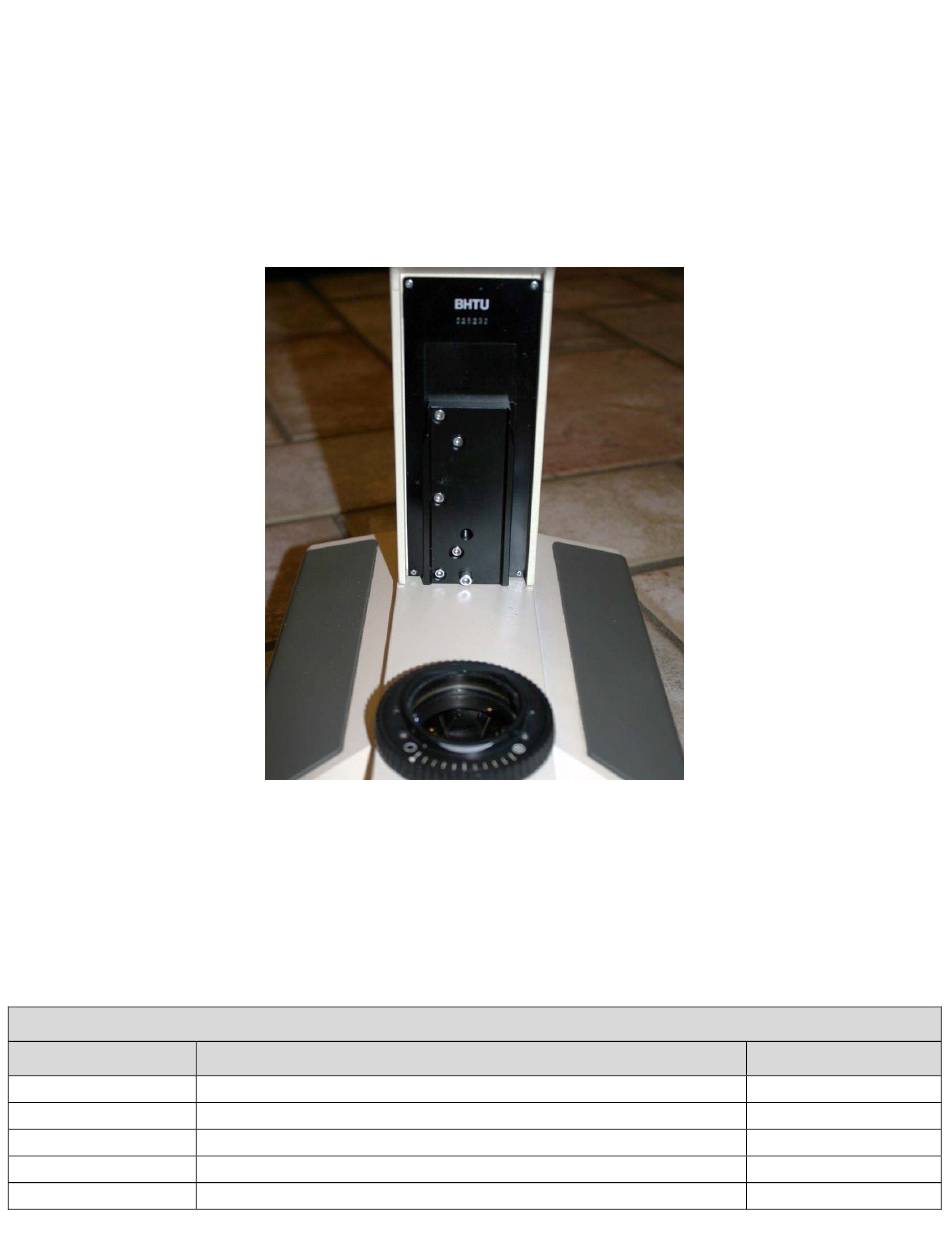

Scope of this Document This document describes the complete teardown, cleaning, and reassembly of the sliding focus block mechanism in an Olympus BHTU stand. Since the various BH‐2 stands use the same sliding focus block as the BHTU, this document should allow a hobbyist with reasonable mechanical abilities to service the sliding ... -
Page 7: Solvent Compatibility With Parts And Finishes
Appendix 2) are recommended if lubrication is desired in the slide. Regardless of whether or not lubrication is used in the slide, a heavy grease such as Dow Molykote® 111 (item 6 of Appendix 2) should be used to hold the guide rails in place during reassembly, and any excess grease remaining after the guide rails have been installed should be thoroughly Figure 2 – Protect the top of the arm from dust Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 7 of 23... -
Page 8: Separate The Arm From The Base
Carefully turn the stand upside down. Use a 4mm (or 5/32”) Allen wrench or driver to remove the four M5x12 hex, socket‐head cap screws and the associated washers from the bottom of the stand (see Figure 4). Figure 6 – Remove screws securing the arm to the base Figure 4 – Bottom view of the BHT/BHTU electrical base Hold the electrical base in place and set the stand in its normal upright position on a flat surface, being careful not to let the electrical base shift as you do so. Lift the stand from the electrical base by grasping the arm and Figure 7 – Separate the arm from the base lifting straight up until the bottom of the stand well clears the electrical base. If the stand contains a light‐ Or unplug the two electrical connectors from the printed circuit board. Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 8 of 23... -
Page 9: Disassemble The Sliding Focus Block
Figure 9 – Remove the loose trim cover from the arm Loosen the Screws Tensioning the Slide Mechanism Use a 2.5mm Allen wrench or driver to loosen (but do not remove) the three M3x12 hex, socket‐head cap screws securing the guide block into position on the Figure 12 – Withdraw focus block assembly from the arm back side of the focus block (see Figure 10). Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 9 of 23... -
Page 10: Clean The Various Slide Components
Disassemble and clean the various components of the Figure 14 – Remove the guide block from the focus block sliding focus block mechanism per the following The components of the focus block assembly are shown procedure. in Figure 15. Remove the Guide Rails from the Arm Casting Remove the four long guide rails from the two side grooves in the arm casting (see Figure 18). Figure 15 – The components of the focus block assembly Remove the two brass shims from the guide block (see Figure 18 – Remove four guide rails from the arm casting Figure 16). Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 10 of 23... -
Page 11: Remove And Reinstall The Bottom Dust Cover
21). Lift and remove the dust Use a suitable solvent (e.g., acetone) to remove any cover (see Figure 22) and clean any dust and debris grease from two short guide rails (see Figure 19) and from the cover and from the associated area of the arm from the side groove in the focus block (see Figure 24). casting. Reposition the dust cover in place and secure it to the arm casting with the two M2x4 screws. Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 11 of 23... -
Page 12: Remove The Guide Rails From The Guide Block
(see Figure 19) and from the side groove in the guide block (see Figure 26). Figure 28 – Reinstall the long guide rails into the arm Figure 26 – Clean grease from side groove in guide block Clean the Cylindrical Rollers Soak the cylindrical rollers in a suitable solvent (e.g., acetone) to remove all grease from the rollers (see Figure 27). Figure 29 – Scrub grease from guide rails and arm Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 12 of 23... -
Page 13: Reinstall The Guide Rails Into The Focus Block
(see Figure 32 and Figure 33). into the side groove in the guide block (see Figure 34) and remove any exposed grease from the two guide rails (see Figure 35 and Figure 36). Figure 31 – Reinstall short guide rails into the focus block Figure 34 – Reinstall short guide rails into the guide block Figure 32 – Scrub grease from guide rails and focus block Figure 35 – Scrub grease from guide rails and guide block Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 13 of 23... -
Page 14: Apply Grease To The Guide Rails (Optional)
(see Figure 41, shown without grease for clarity). Note the alternating orientation of the rollers. IF GREASE IS NOT TO BE USED IN THE SLIDING FOCUS BLOCK: Place eight of the cylindrical rollers and the one of the plastic spacer rods onto the guide rails in the bottom channel of the arm casting (see Figure 41). Note the alternating orientation of the rollers. Figure 38 – Clean exposed grease from the focus block Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 14 of 23... -
Page 15: Place Focus Block Assembly Onto Cylindrical Rollers
Figure 45 – Push cylindrical rollers into guide‐rail channel Figure 43 – Withdraw the guide block about halfway Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 15 of 23... -
Page 16: Mount The Guide Block Into Position
Use a 2.5mm Allen wrench or driver to snug the two guide rails as they are pushed into the channel. Align M3x16 hex, socket‐head cap screws to tighten the wedge nuts (and thereby move the guide block) such Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 16 of 23... -
Page 17: Secure The Guide Block In Position
(see Figure 52). If necessary, loosen the three M3x12 hex, socket‐head cap screws securing the guide block to the focus block, and the two M3x16 hex, socket‐head cap screws that tension the guide block, and readjust per the above procedure until the resulting motion of the sliding focus block is smooth, unrestricted, and without lateral play. Figure 54 – Reinstall screws to secure the trim cover Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 17 of 23... -
Page 18: Reinstall The Arm Onto The Base
Use a 5mm Allen wrench or driver to loosely reinstall washers to secure the electrical base to the stand (see four M6x25 hex, socket‐head cap screws to attach the Figure 59). Return the assembled stand to its normal arm to the base of the stand (see Figure 57). upright position. Figure 59 – Reinstall screws to secure the electrical base Figure 57 – Attach the base onto the arm of the stand Or reconnect the two electrical connectors to the printed circuit board. Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 18 of 23... -
Page 19: Continue With The Coaxial Focus Overhaul
Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Coaxial Focus Mechanism document. Original Olympus Documentation An early version of the Olympus BH2 (BHS) repair manual (see Figure 60) was referenced during the preparation of this document. A scanned PDF version of this manual is available for download at various ... -
Page 20: Appendix 1 - How To Install Guide Rails In The Sliding Focus Block Mechanism
Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 20 of 23... -
Page 21: Set The Guide Rails Into The Greased Guide
Figure 66 – Set the first guide rail into the grease Figure 69 – Scrub any visible grease from the guide rails Place the second guide rail into the other inside corner The fresh grease should come off easily with dry cotton of the side groove of the guide block (see Figure 67) and swabs. Do not use any solvent here, as the solvent may press the guide rail down firmly at the ends to run under the guide rails and foul the grease holding thoroughly embed it into the grease (see Figure 68). them in place. Carefully work from the inside out when Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 21 of 23... -
Page 22: The Prepared Guide Block Is Ready To Be Reinstalled
The Prepared Guide Block is Ready to be Reinstalled The prepared guide block, with the guide rails installed into the side groove and held in place by the heavy grease, is now ready to be reinstalled into the sliding focus‐block mechanism (see Figure 70). Figure 70 – Prepared guide block ready for reinstallation Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 22 of 23... -
Page 23: Appendix 2 - Sources For Replacement Tools And Supplies Referenced In This Document
Molykote® 44 Amazon ‐‐‐ $6.95 6 Molykote® 111 heavy grease, 1oz Dow Corning Molykote® 111 Amazon ‐‐‐ $7.95 7 Mobil electric motor grease, 13.7oz. Mobil Polyrex EM Amazon ‐‐‐ $9.69 Table 2 – Supplies referenced in this document Table 3 lists the contact information for the vendors referenced in Table 1 and Table 2. Vendor URL Local Phone Toll Free Fax email Amazon www.amazon.com ‐‐‐ ‐‐‐ ‐‐‐ ‐‐‐ Table 3 – Vendor Listing Complete Teardown, Cleaning, and Reassembly of the Olympus BH‐2 Sliding Focus Block Revision 2 Page 23 of 23...
