For clear identification of parts and the number required please carefully refer to the earlier pages of component drawings
and parts lists.

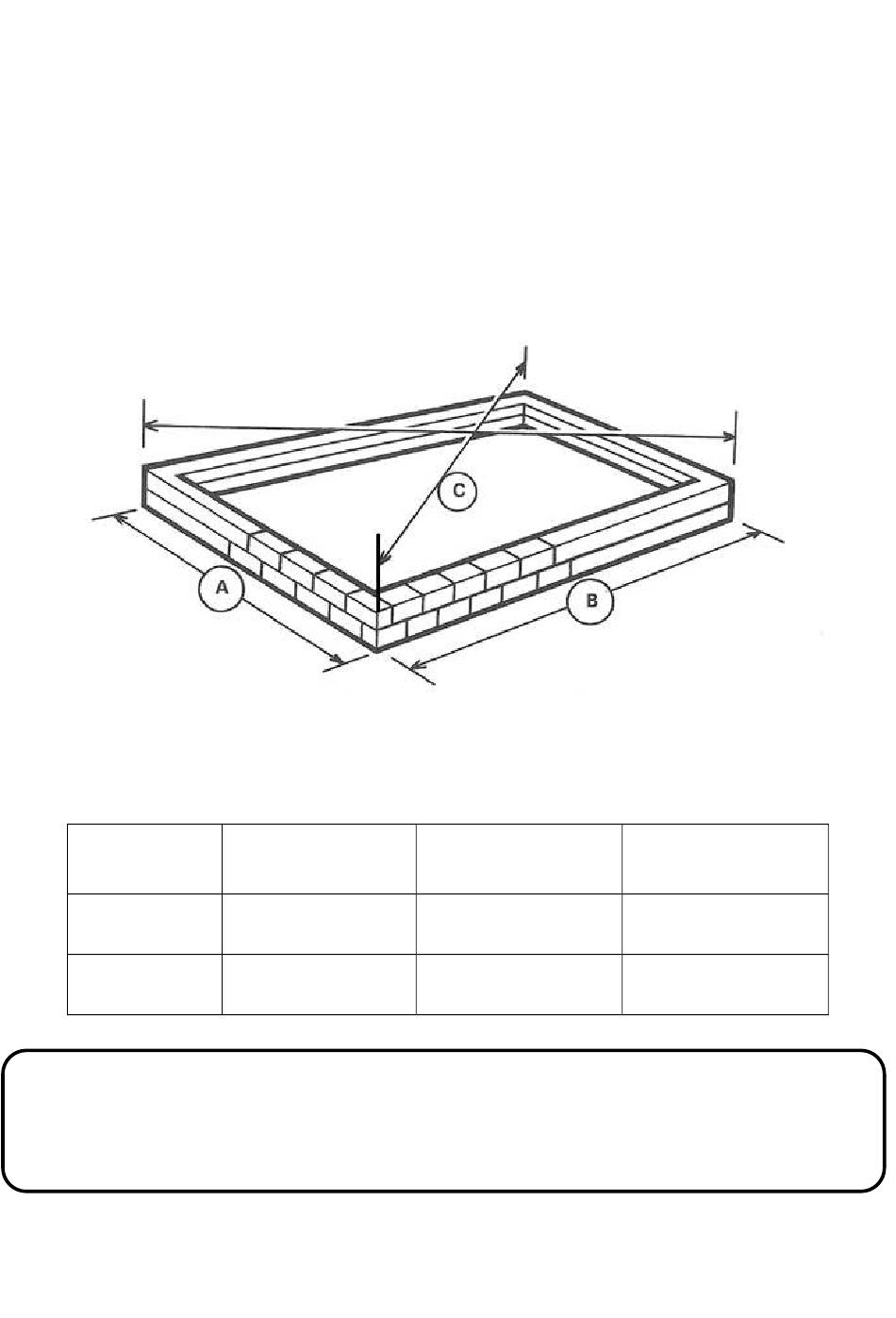

The dimensions given below may be used to locate the position for your Greenhouse or to lay corner footings if they are
needed.
If a brick, concrete or timber base is to be laid, construct it as shown ensuring that dimensions A & B are not exceeded as these
are precise outside measurements enabling the cill to overhang the edges.
ENSURE that the base is square by measuring across the corners, only when equal is it square.
Check the level using a builder's spirit level.
MODEL
2.56m length
3.2m length
Note: Please check with your local council whether a building permit is required for
REDPATH POLYCARBHOUSE BASE DIMENSIONS
For Brick, Block, Concrete or Timber
A (actual base size
width)
1.912m
1.912m
your Polycarbhouse before construction commences
B (actual base size
length)
2.564m
3.182m
C (actual base size
Diagonal)
3.198m
3.712m
6
