Redpath Urban Series Instructions & Illustrations page 10

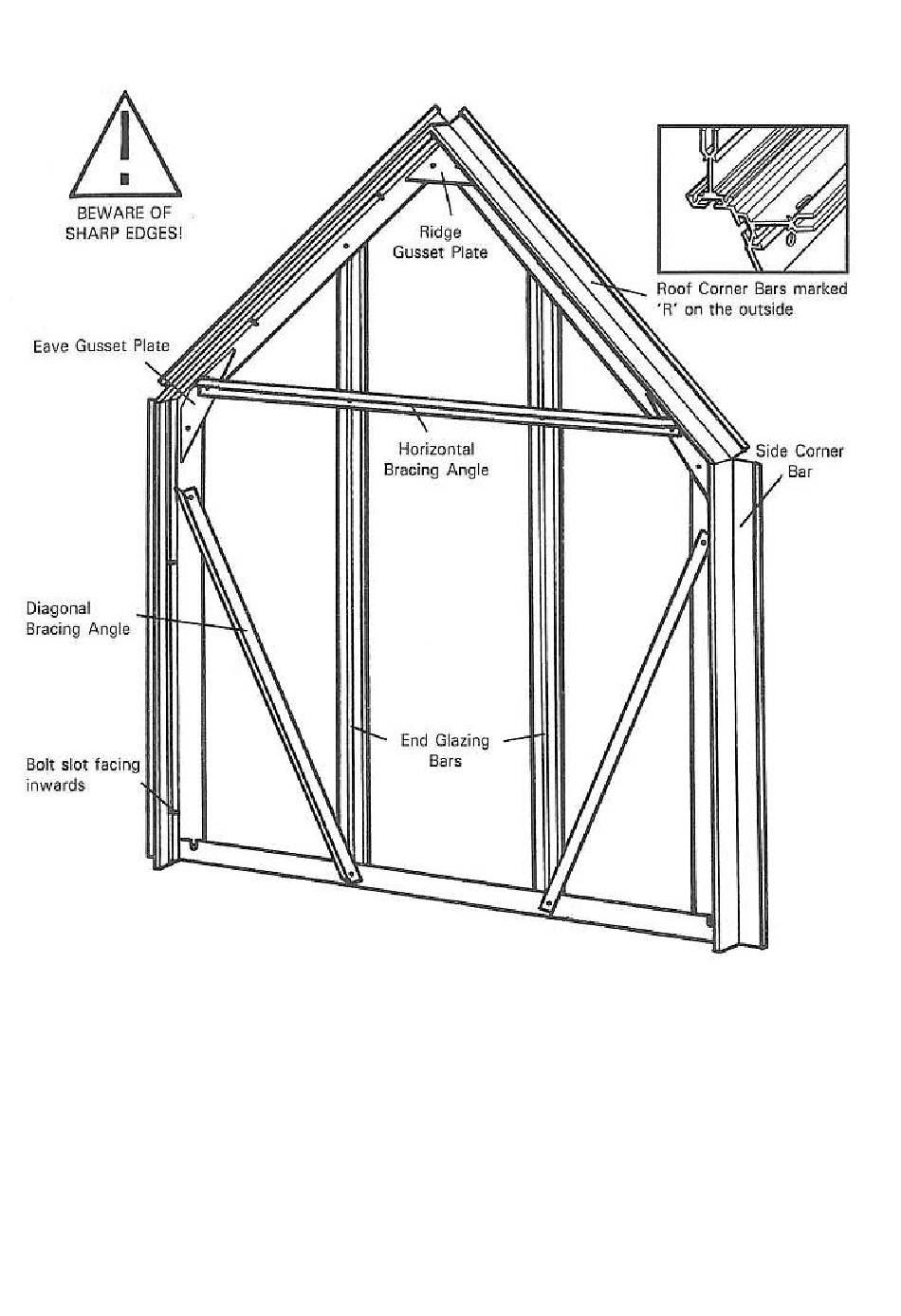

REAR END ASSEMBLY
Viewed from inside.
N.B. The roof corner bars are marked "R" on the outside, which indicates that they meet at the ridge. They are also mitred at
both ends.
If you have a painted greenhouse there is no letter "R" on the corner bar. You must ensure that the "middle" hole is nearer to
the ridge plate than the eaves plate. (Key Point).
10
