Kohler LOURE 98964A Installation Instructions

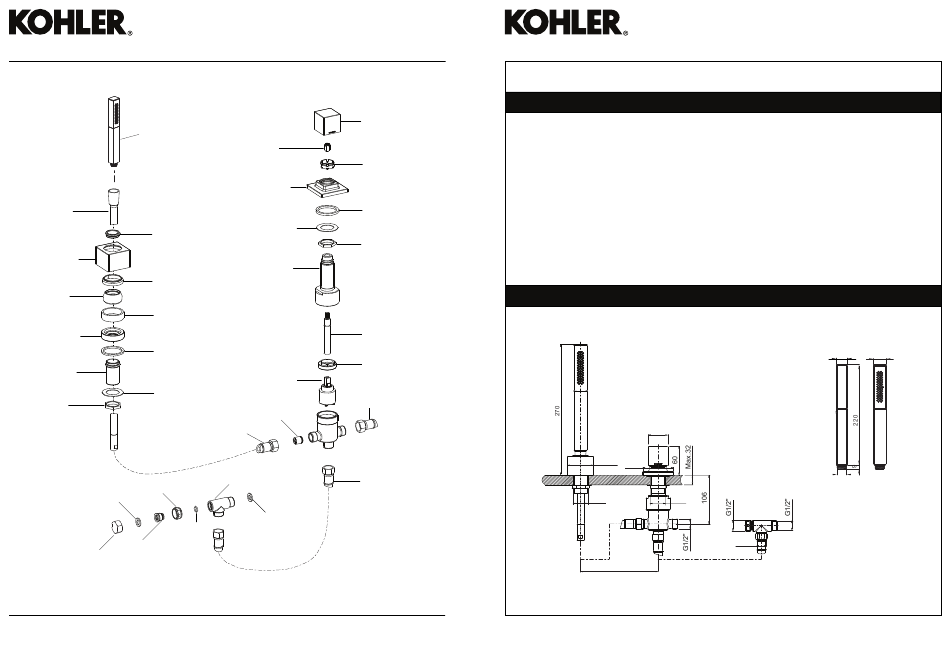

SPARE PARTS
1158335**
Handshower
1245195**
Hose
1172476
Guide
1129983**
Bonnet
1109499
Split Ring
1109498**
Ball
1109500
Seal
1109501
Adapter
870205
Washer
864909
Shank
830915
Steel Washer
864342
Nut
864149**
Nut
831289
Washer
871527
O-Ring
3002771
Seat
864718
Plug
**Color code must be specified when ordering
1216028-AN2-A 08/08/2016
SHOWER TAPWARE
LOURE

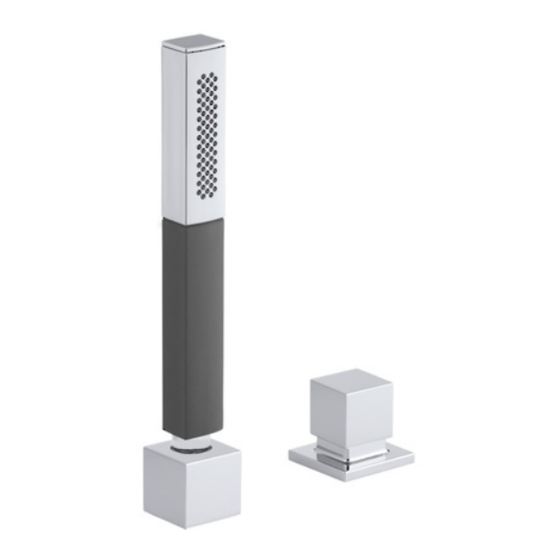

Hand Shower with Diverter - Deck Mount
Handshower with diverter: 98964A
1211617**
Handle
871132
Adapter
870916
Rachet Ring
1211522**
Escutcheon
870205
Washer
830915
Steel Washer
864342
Nut
3002772
Fixing Bush
3004794
Valve Extension
834792
Nut
3004795
Valve
1260687
Hose
831752
Check Valve
1054593
Hose
3002770 1260687
Hose
Tee
831289
Washer
4
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co.
reserves the right to make changes in product characteristics, packaging, or availability at any time without
notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove any debris.
2. An in line water filter must be used with this product.
3. Inspect the supply pipes for damage. Replace as necessary.
4. Observe local plumbing codes.
5. Check for leaks before covering the pipes, repair as needed.
6. Recommended working pressure: 100 to 500kPa.
7. Maximum working pressure: 800kPa.
8. All installations should comply with the relevant requirements of AS/NZS 3500 and AS/NZS 6400.
ROUGH-IN DIMENSIONS
40x40
53x53 64x64
Ø35
Ø35
100~200
1216028-AN2-A 08/08/2016
SHOWER TAPWARE
LOURE
Hand Shower with Diverter - Deck Mount
Handshower with diverter: 98964A
24 28
G1/2"
G1/2"
1
