Crystal nVision Reference Recorder Operation Manual page 9

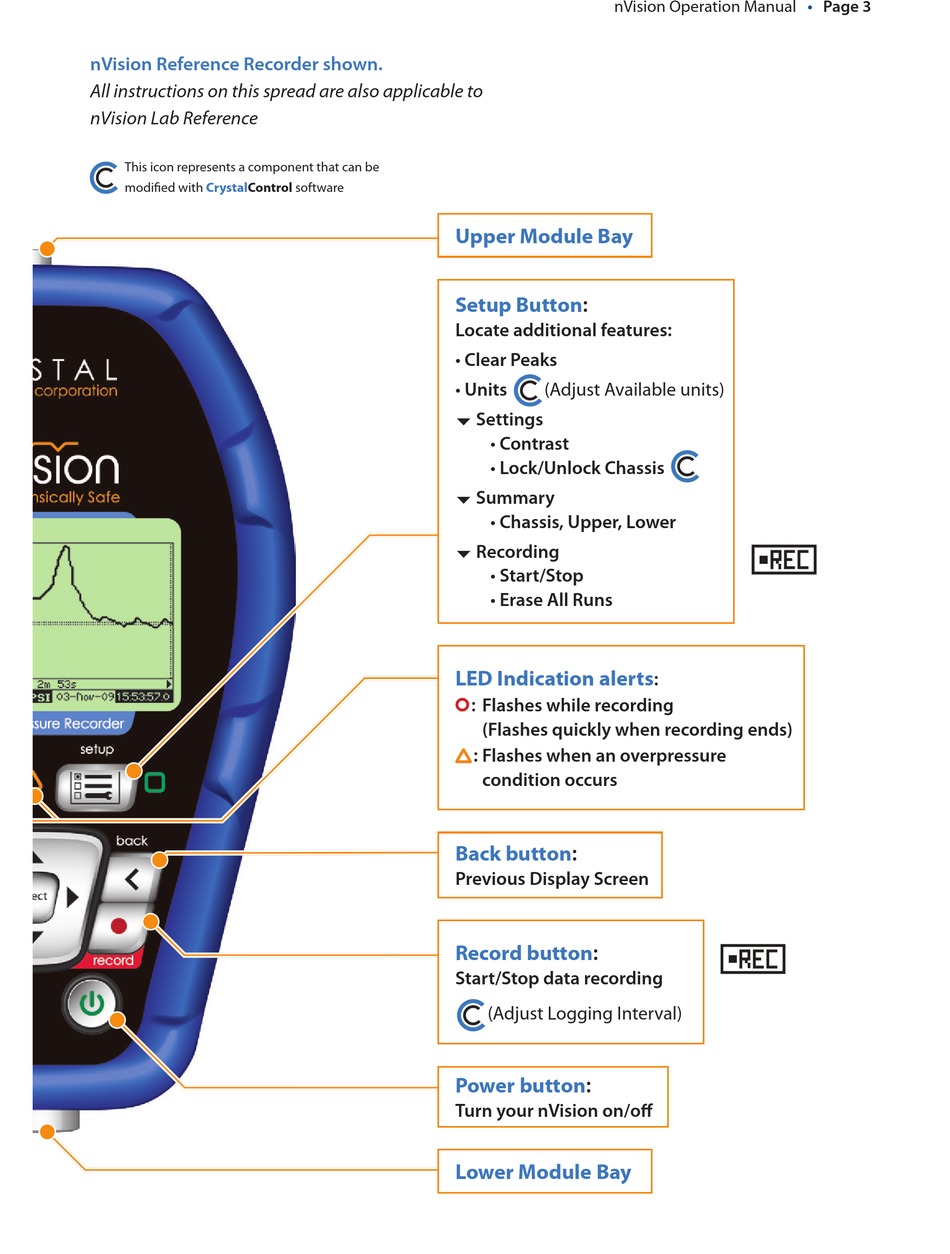

nVision Reference Recorder shown.
All instructions on this spread are also applicable to
nVision Lab Reference
This icon represents a component that can be
modified with CrystalControl software
nVision Operation Manual
Upper Module Bay
Setup Button:
Locate additional features:
• Clear Peaks
• Units
(Adjust Available units)
 Settings
• Contrast
• Lock/Unlock Chassis
 Summary
• Chassis, Upper, Lower
 Recording
• Start/Stop
• Erase All Runs
LED Indication alerts
: Flashes while recording
(Flashes quickly when recording ends)
: Flashes when an overpressure
condition occurs
Back button:
Previous Display Screen
Record button:
Start/Stop data recording
(Adjust Logging Interval)
Power button:
Turn your nVision on/off
Lower Module Bay
• Page 3
:
