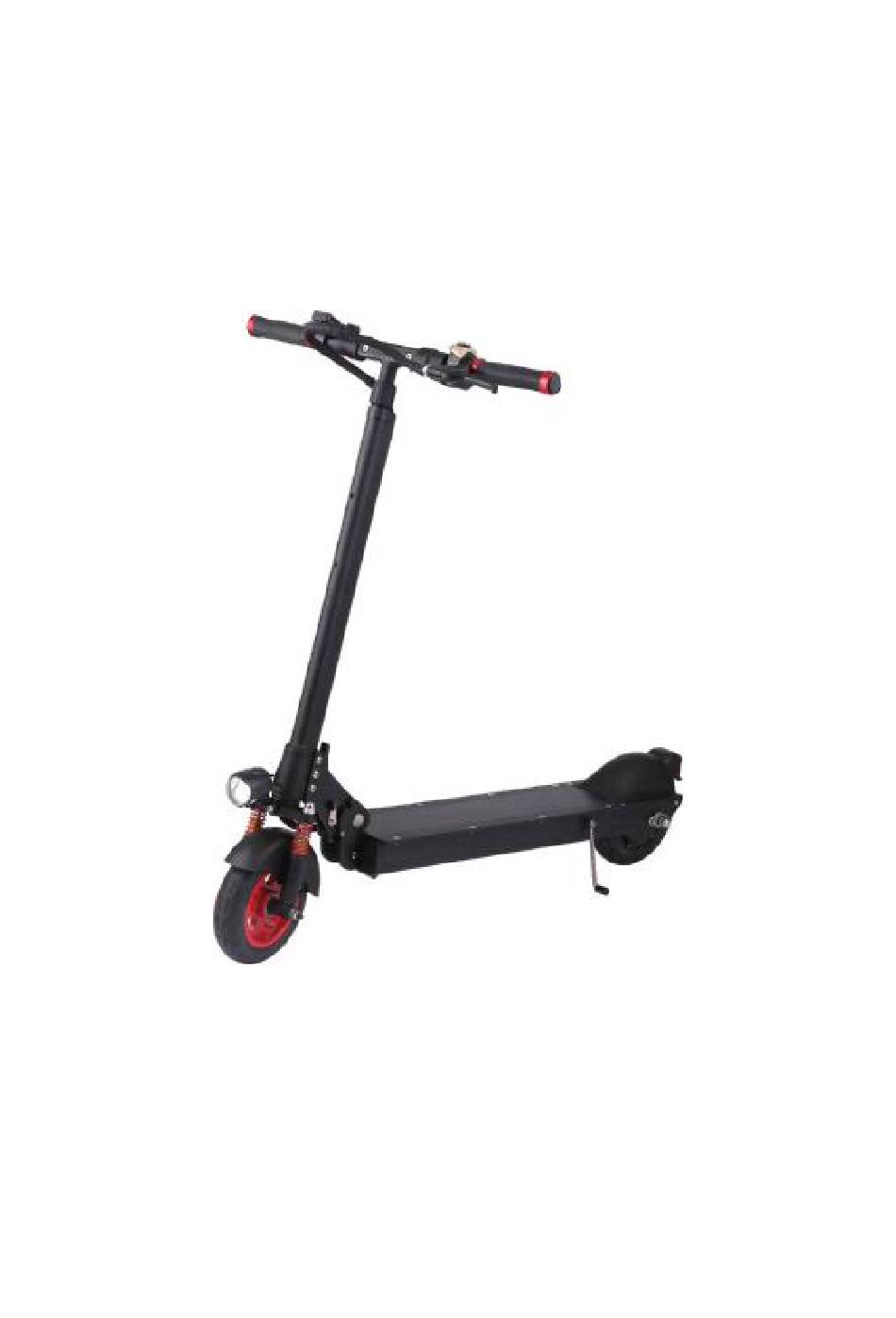

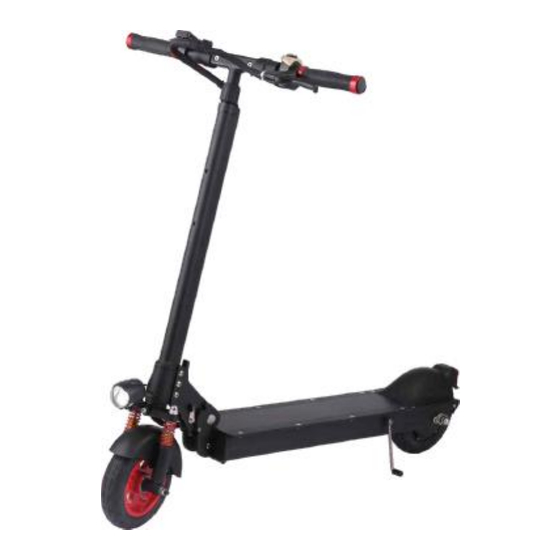

- Page 1 BOHLT EKICK 8 PRO E-SCOOTER User’s manual...
-
Page 2: Table Of Contents
Content 1. Technical information and parameters 2. E-scooter diagram 3. Operating the e-scooter 4. How to use the battery and recharge 5. Care and maintenance 6. General trouble shooting 7. Warranty 1. Technical information and parameters 8” foldable battery operated e-scooter Dimensions open L x W x H 100 x 12 x 54 cm Dimensions folded... - Page 3 Over current protection (A) 11 ± 1.5A Power source Li-ion battery Climbing capacity ≤ 15° 2. E-scooter diagram 1. Foldable grips T-tube locknut 2. Handlebar 10. Folding Lock 3. T-tube 11. Folding lever 4. Lower T- tube 12. Front light 5.
-
Page 4: Operating The E-Scooter
8. Horn button 16. Front suspension fork 3. Operating the E-scooter A. Opened B. Fully Folded Unfolding the e-scooter 1. Push the folding lock (10), you will 2. Push up the folding lever to the hear a clicking sound. Completely upright position open the T-tube and wheel... - Page 5 3. Pull up the grips 4. Loosen the t-tube locknut (9) 5. Pull out the t-tube to the desired 6. Tighten the locknut (9) height, it will be locked by means of the position buttons (5) in the lower t- tube (4) Folding the e-scooter 1.
- Page 6 7. Press down the folding lock, you will hear a clicking sound. Then fold the t-tube and front wheel Starting the e-scooter Depending on the model, press the Power button for 3 seconds. The display will be activated and the e-power will be turned on. Speed You can control the speed of your e-scooter by means of the finger or thumb throttle, depending on the model.
- Page 7 Power display On the display the battery icon indicates the remaining power capacity of the battery. Distance The distance of the current trip is indicated on the display. Braking system The hand brake lever on the left side of the grip activates the brake. Squeezing the hand brake lever will activate the servo-brake situated in the rear wheel.
- Page 8 Turn on the e-scooter by pressing the Power button. Your e-scooter is equipped with a zero start e-motor system and brake switch-off device. When you want to ride, put one foot on the deck while pushing off with the other foot. Now gently push the throttle. The e- scooter will now move.
-
Page 9: How To Use The Battery And Recharge
13.Keep the device free from dust, lint, etc. 14.Do not use this device for anything other than its intended use or purpose. Doing so may damage the device or lead to property damage, injury or death. 15.This product is not a toy. Keep out of reach of children. 16.Do not expose batteries, battery pack, or batteries installed to excessive heat, such as direct sunlight, or open flame. -
Page 10: Care And Maintenance
6. Do not use other types of battery other than the ones provided by the manufacturer. 7. Charging of the battery: First plug the connector of the charger into the battery socket of the e-scooter. Then plug the connector of the charger into the wall socket. -
Page 11: General Troubleshooting
Lubrication We advise you to put lubrication oil into the folding points every 6 months for maintenance. Wheel This e-scooter is equipped with solid foam rubber wheels. When the wheels need to be replaced, because of wear and tear or when they are broken, please contact your service center.
