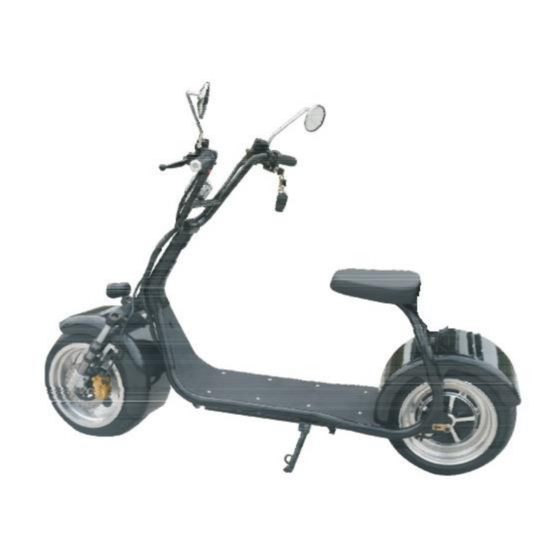

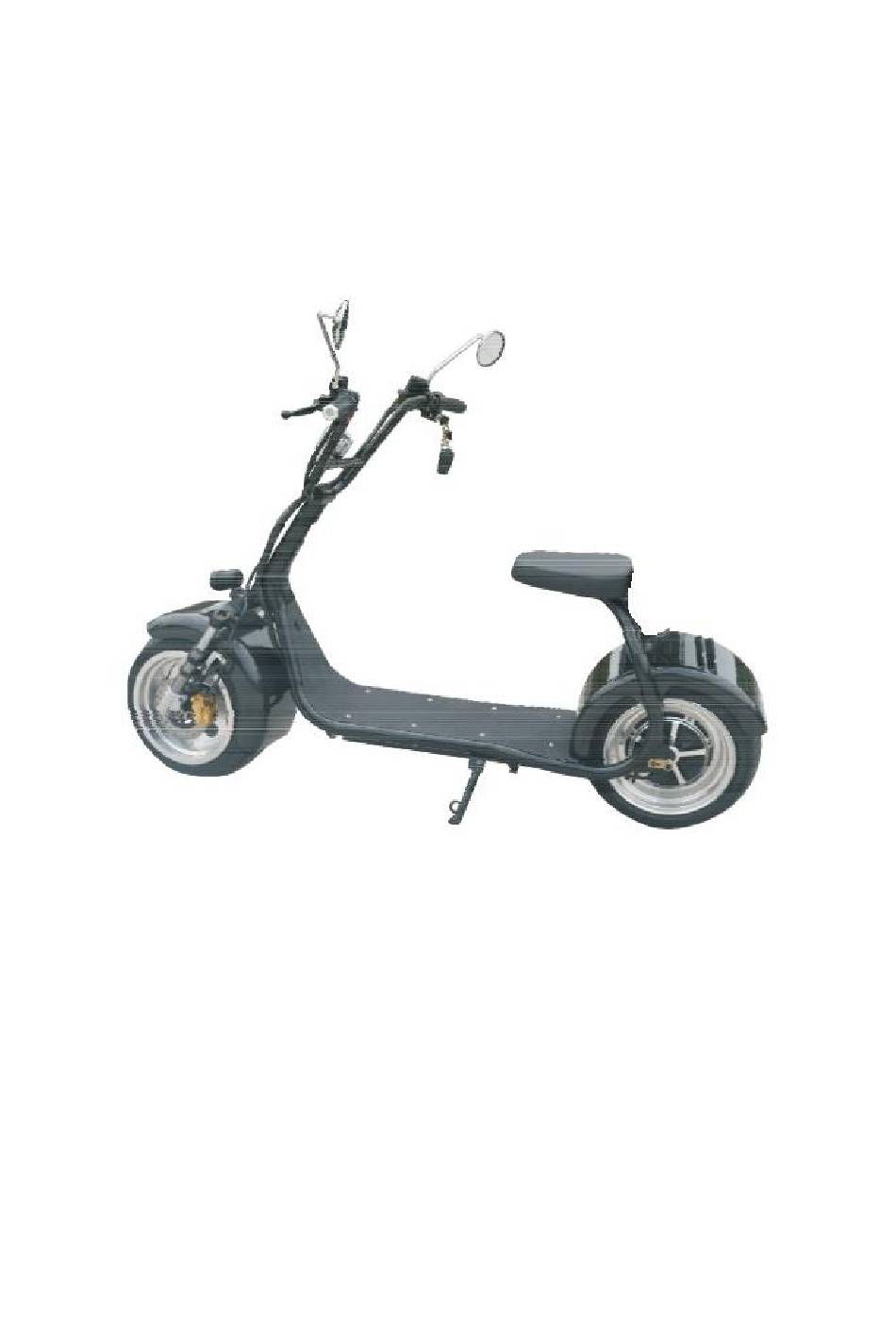

- Page 1 BOHLT BASTARD PRO USER’S MANUAL...
- Page 2 INDEX Index Chapter 1 General instructions 1.1 Key features 1.2 Safety instructions Chapter 2 Product introduction Chapter 3 Scooter structure and parts Chapter 4 Technical specifications Chapter 5 Assembling the scooter Chapter 6 User’s guidelines 6.1 Safety driving precautions 6.2 How to use the scooter 6.3 Care and maintenance 6.4 General trouble shooting Chapter 7 FCC Statement...
-
Page 3: Chapter 1 General Introduction
Chapter 1 GENERAL INTRODUCTION PLEASE READ THIS USER’S MANUAL THOROUGHLY BEFORE USING THE SCOOTER. Failure to follow the basic instructions and safety precautions listed in the user’s manual could lead to damage to your device, other property damage, serious bodily injuries and even death. -
Page 4: Chapter 4 Technical Specifications
Bastard PRO, made of 135°C heat resistant magnetic and silicon steel sheet, with high precision. The motor is very powerful and has a low energy consumption and is very durable at the same time. - Page 5 Therefore you need to assemble the Bastard PRO before you are able to use it. In the following overview you can see, step by step, how to assemble the Bastard PRO. 5.1 The following items are included in the package: ...
- Page 6 Tool kit 5.2 Open the toolkit and you will find: a handlebar locker, a hex key, four inner hex head screws (picture 3) Picture 3 Picture 4 5.3 Put the four hex head screws into the handlebar locker (Picture 4) 5.4 Put the handlebar on the handlebar stand (Picture 5) and lock the handlebar slightly with the handlebar locker, place the four hex head screws into the corresponding holes (Picture Picture 5...
-
Page 7: Chapter 6 User Guideline
Chapter 6 User Guideline 6.1 safety driving precautions 6.1.1 When riding the Bastard PRO always use protective gear, like a SPSC or CE certified helmet, protective clothing (with long sleeves and long trousers) and appropriate footwear (sneakers and make sure the laces cannot get caught in the wheels, motor or other moving components). - Page 8 6.1.8 check the braking sensitivity before every ride. If you experience any problems with your brakes, don’t drive and repair the problem or contact the service center. 6.1.9 don’t overload the Bastard PRO, this can be very dangerous and could cause damage or personal injury. The maximum load is 200kg.
- Page 9 A. When you park your Bastard PRO, always be aware of other vehicles and pedestrians. Park on a level surface and not on a slope. B. When the Bastard PRO is parked turn around the key and take it out. Lock your Bastard PRO securely.
- Page 10 B. Do not let a new brake become wet in order to avoid the brake pads to become dirty. C. An hydraulic disc brake has a strong braking force, before using the Bastard PRO we advise you to practice a few times in a quiet surrounding to get used to the brakes.
- Page 11 100% it will take 8 hours. C. During charging, do not connect the positive or negative pole with metal. D. The battery capacity of a new Bastard PRO is 80%, before using it, it will take 3-10 hours to be completely charged.
- Page 12 You don’t need a key to start the Bastard PRO. C. Unlock key: Press the unlock key twice to stop the anti theft status. Under the remote control status, press the unlock key once, the Bastard PRO will stop and cut off the electricity.
- Page 13 Information for the user : The Bastard PRO has been tested and complies to the limit values for digital devices class B, as meant in part 15 of the FCC agreement. This implies...
-
Page 14: Chapter 8 Warranty Information
Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Furthermore, extra parts which are installed are not covered by the warranty, no rights can be derived from these extra installed parts. - Page 15 1) The warranty does not cover over-charging, or damages due to improperly maintaining lithium-ion battery installed in unit. The warranty does not cover tires and other parts, which are considered consumables, parts that break easily such as glass or plastic or defects based on normal wear and tear. There is no warranty obligation in the event of marginal differences compared to the target appearance and workmanship provided these have a negligible effect on the product’s fitness for use, in the event of damage caused by chemical or...
- Page 16 enclose any accessories with the product (cables, chargers, manuals, etc.) unless our Service Center specifies otherwise. 2) Mark the RMA number on the outside of the package in such a way that it is visible and clearly legible. 3) You must enclose a copy of the sales slip as proof of purchase. 4) As soon as the product has been received by our service center, the supplier, after examination, will decide whether the reparation will be performed under warranty, or if the reparation costs will be charged to the owner, in that case the owner will...
- Page 17 8.5 Warranty card...
