Place labels
Instruction video
Place labels
ALTEC industrial identification B.V.
Nieuwland Parc 90 • 3351LJ •
T +3178 - 615 20 33 • info@altec.nl

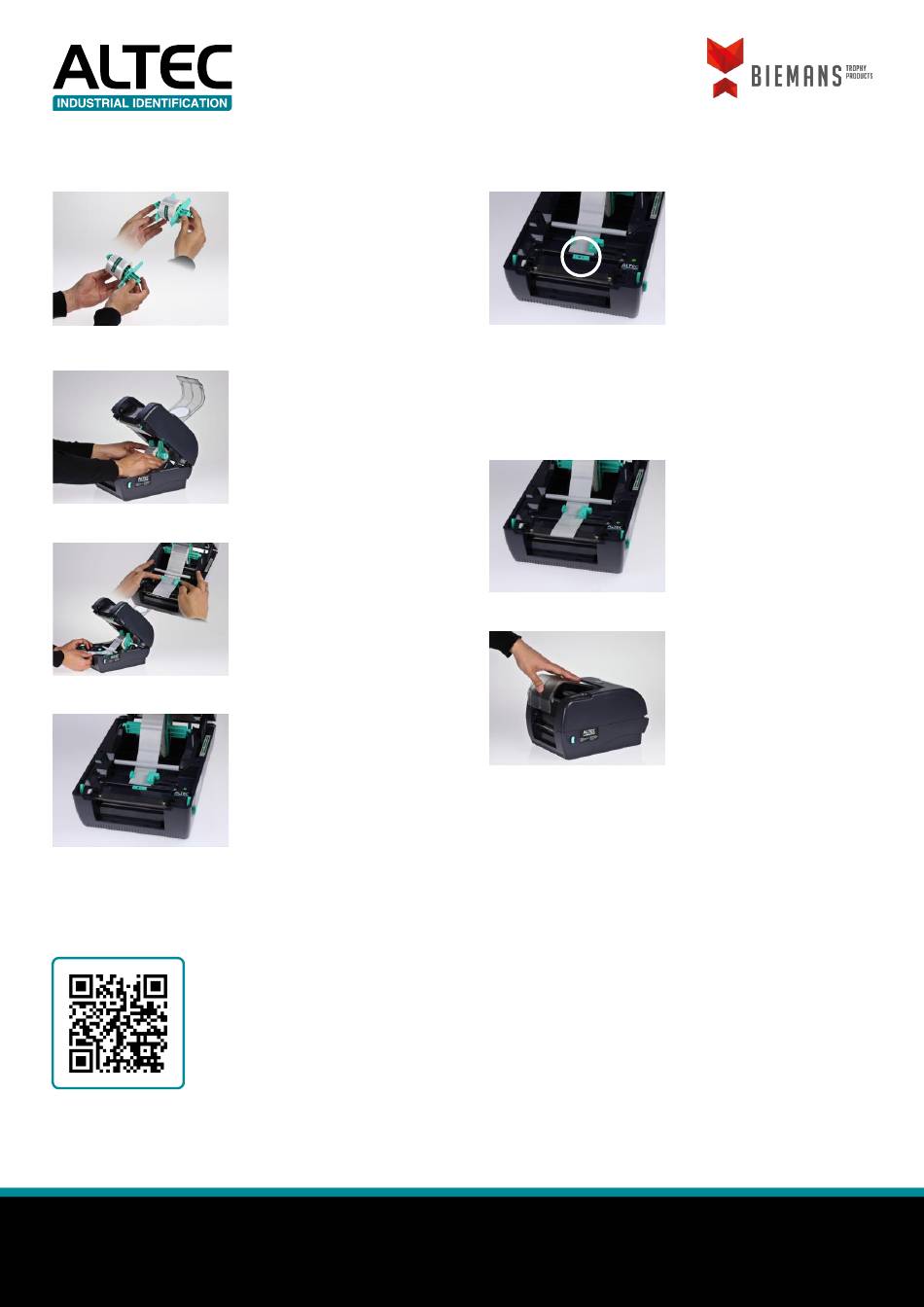

I. Place your roll of labels on
the green label spindle and
position it to the center using
the green wings.
Note: If possible place the
label roll on the thickening of
the green wings.
J. Place the label spindle
with the labels in the
notches at the back of the
label printer.
K. Pull the labels under the
white bar and slide the green
guides to the center using
both hands. The guide in the
right side is the 'Gap sensor'.
L. Make sure there is
movement possible between
the label roll and the guides.
Zorg ervoor dat er geen
speling meer is tussen de
labels en de geleiders.
Note: Also make sure the
guides are not placed too
tight.
Papendrecht • The Netherlands
• www.altec.nl
M. If your label roll has no
notch or detection hole, the
black mark sensor must be
used (the green guide at the
bottom of your label printer).
Make sure the sensor eyes
(black rectangle) are
positioned directly under the
nodige.
Note: You can move the
black mark sensor from left
to right.
N. Feed the label roll until
it reaches the metal edge
at the front of the printer.
Now close the printer by
lifting it out of its lock and
pushing it down gently until
it clicks.
O. Close the transparent
cover.
