Structure

OptiSelect Pro GM04-CF
Rev. 00 03/20

Overall view

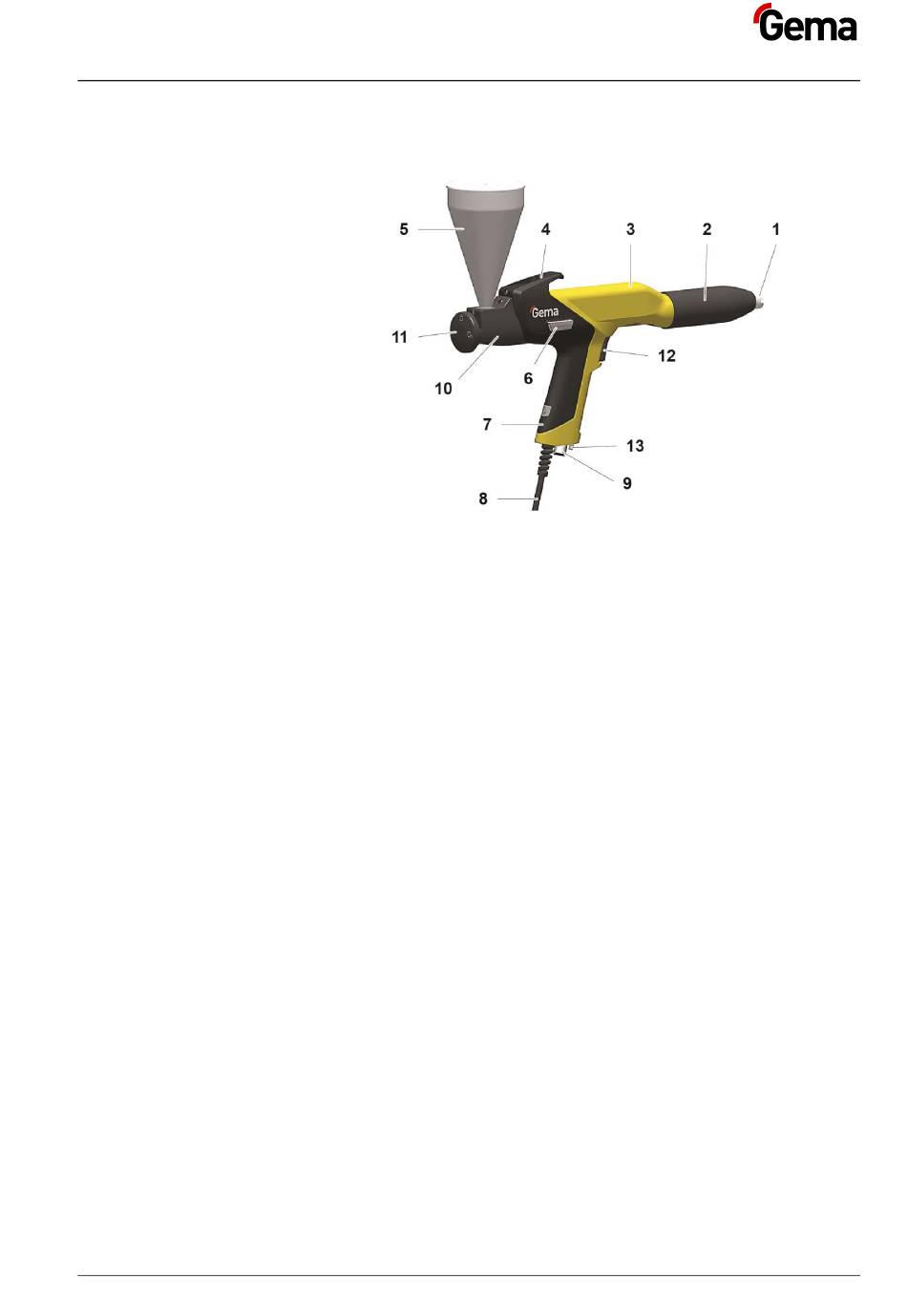

fig. 2:
1 Spray nozzle system
2 Threaded sleeve
3 Shaft
4 Rear part with hook
5 Funnel cup
6 SuperCorona connection
7 Gun handle
8 Gun cable
9 Supplementary air
connection
10 Injector
11 Rotary knob
12 Trigger
13 Conveying air connection
