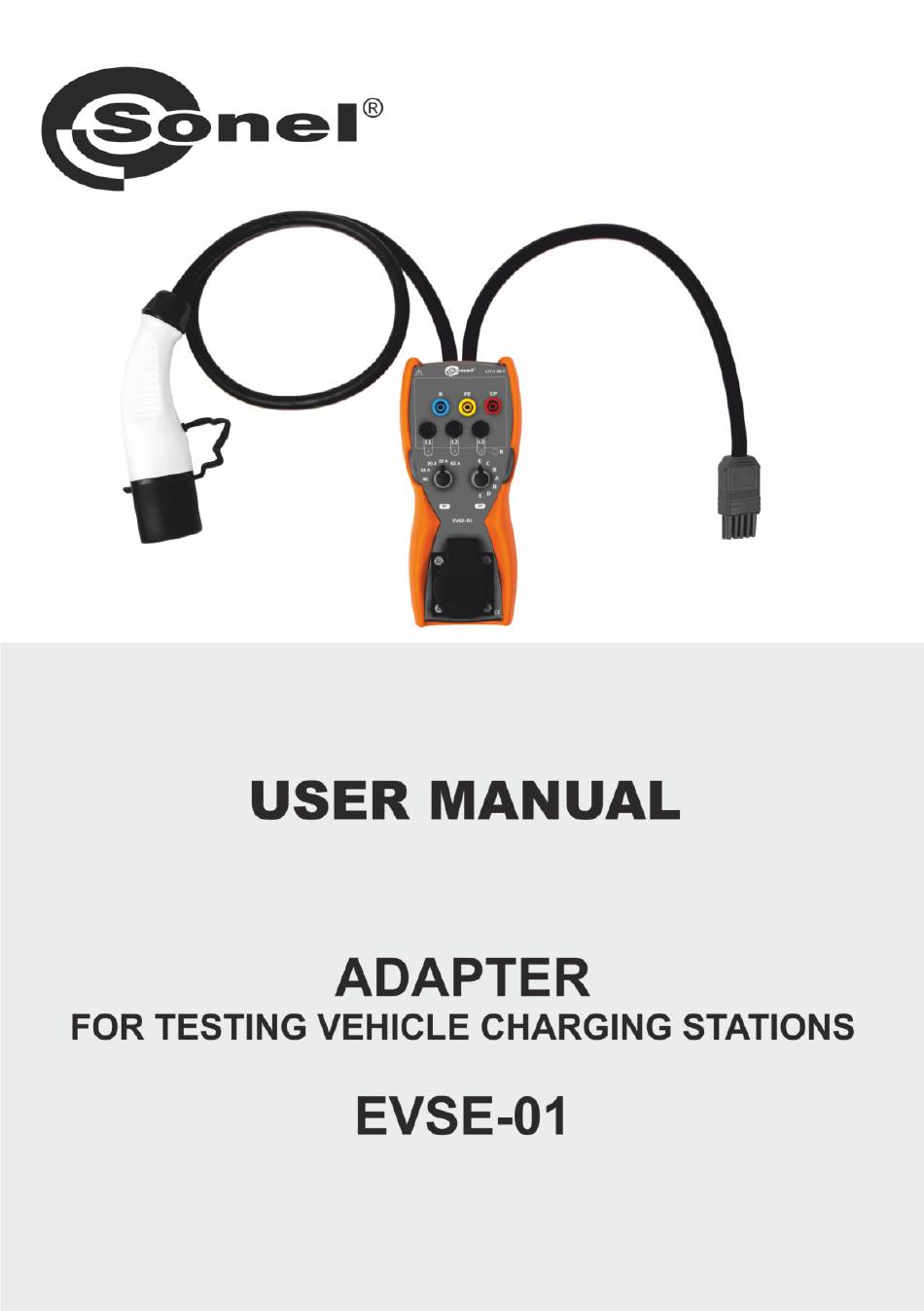

- Page 3 USER MANUAL ADAPTER FOR TESTING VEHICLE CHARGING STATIONS EVSE-01 FOR MPI METERS SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland Version 1.03 10.07.2020...
-
Page 4: Table Of Contents
6 Cleaning and maintenance ................11 7 Storage ......................11 8 Dismantling and utilisation ................11 9 Technical data....................11 9.1 Basic data ....................... 11 9.2 Other technical data ....................12 9.3 Standards ....................... 12 10 Manufacturer ....................12 EVSE-01 – USER MANUAL... -
Page 5: Safety

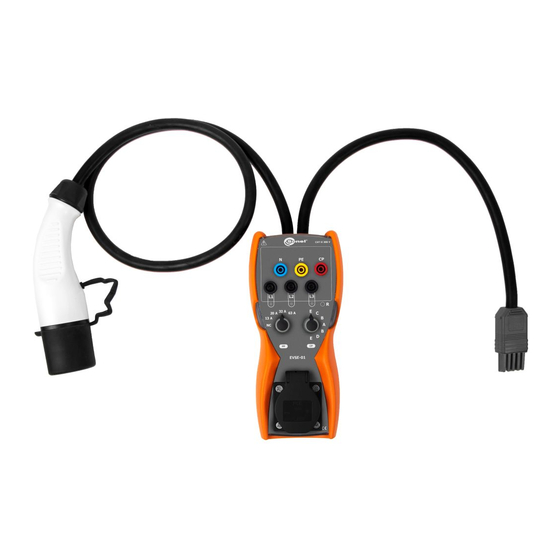

Safety EVSE-01 adapter is designed for measurements on charging stations for electric vehicles. It is designed to test the operational safety and the accuracy of the charging stations used for charging in mode 3 according to EN-61851-1 with sockets compliant to IEC 62196 Type 2. -
Page 6: Quick Start
CP = E – this setting is used to simulate an error. To disconnect the adapter from the live charger, set CP = A, and - if necessary - PP = NC. EVSE-01 – USER MANUAL... -
Page 7: Settings
- if the cable is connected the indicates its rated current. CP line sends information about the current state of the receiver: connected, charging etc. EVSE-01 provides a simulation of situations when the charged object: is connected to the charging source via a ca- ble with a pre-set maximum current PP ... -
Page 8: Measurements
phases taken into account in the test. For R tests: test voltage, measurement time, bottom limit. Save the settings using icon Description of function icons collapsing setting fields expanding setting fields EVSE-01 – USER MANUAL... - Page 9 Set the adapter at: PP = 63 A, CP = A. Connect EVSE-01 to the charger and supply it with power. ► Press START. The automatic measure- ment sequence will start. Observe the messages on the screen and follow the prompts.
-
Page 10: Manual Measurements
If you use the WS adapter for testing a 3-phase charger, you will be able to measure only L1 phase. Set the adapter at: PP = 63A, CP = A. Connect EVSE-01 to the charger and supply it with power. EVSE-01 – USER MANUAL... - Page 11 If you test R , you need to measure: L1-PE, L2-PE, L3-PE, N-PE or L1+L2+L3+N-PE. Enter settings to EVSE-01 and start the measurement. ► Before and during R measurement, it is rec- ommended to press and hold the 'R' button. It eliminates the effect of voltage controls on the result.
-
Page 12: Control Signal Cp
If the ground wire of the oscilloscope is not isolated from its casing, then before connecting the oscilloscope, make sure that the PE line of the charging station is free from dangerous voltage! EVSE-01 – USER MANUAL... -
Page 13: Cleaning And Maintenance
-13% m.v. … +│ as in the meter │ L-PE[RCD] Manual 0.51 Ω...1999 Ω As in the meter 1…2 GΩ Unspecified (1.2 m test leads) Abbreviation "m.v." used in the specification of basic uncertainty means standard measured value EVSE-01 – USER MANUAL... -
Page 14: Other Technical Data
The manufacturer of the device and provider of guarantee and post-guarantee service: SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland tel. +48 74 858 38 60 fax +48 74 858 38 09 E-mail: export@sonel.pl Web page: www.sonel.pl NOTE! Service repairs must be performed only by the manufacturer. EVSE-01 – USER MANUAL... - Page 15 FUNCTIONAL COMPARISON OF MPI METERS MPI-530-IT MPI-540 MPI-530 Meter MPI-502 MPI-535 MPI-525 MPI-520 Auto measurements √ – – Automatic three- phase measurement √ – – via multiplug Visual inspection √ – – Fault loop Z L-PE parameters measure- √ √ √...
- Page 16 EVSE-01 – USER MANUAL...
