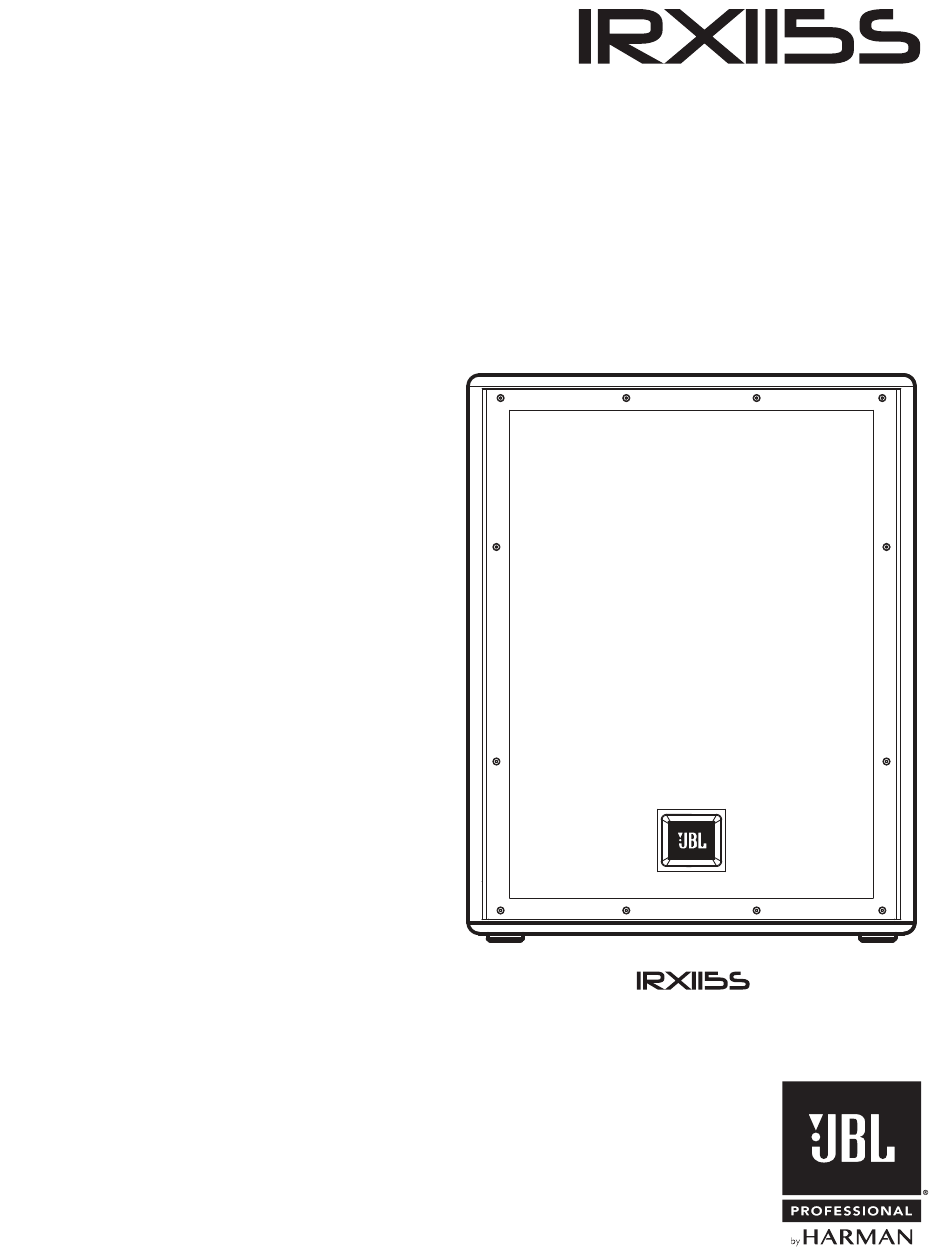

  • Page 1 User’s Guide...

  • Page 2: Table Of Contents

    CONTENTS Safety Instructions ..........................3 Quick Setup Guide ..........................7 Back Panel ............................... 8 Overview - IRX115s ..........................10 IRX115s - Block Diagram........................11 IRX115s Specifications .......................... 12 Applications / Features .......................... 13 Loudspeaker Placement and Suspension ....................14 Cables & Connectors ..........................15 Application Examples ..........................

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS The IRX115s covered by this manual is not intended for use in high moisture environments. Moisture can damage the speaker cone and surround and cause corrosion of electrical contacts and metal parts. Avoid exposing the speakers to direct moisture. Keep speakers out of extended or intense direct sunlight.
  • Page 4 SAFETY INSTRUCTIONS 1. READ these instructions. 2. KEEP these instructions. 3. HEED all warnings. 4. FOLLOW all instructions. 5. DO NOT use this apparatus near water. 6. CLEAN ONLY with dry cloth. 7. DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.
  • Page 5 SAFETY INSTRUCTIONS WARNING: This product is intended to be operated ONLY from the voltages listed on the back panel. Operation from other voltages other than those indicated may cause irreversible damage to the product and void the products warranty. The use of AC Plug Adapters is cautioned because it can allow the product to be plugged into voltages in which the product was not designed to operate.
  • Page 6 EU COMPLIANCE INFORMATION: IRX115s Hereby, HARMAN Professional, Inc., declares that the equipment type is in compliance to the following: European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EU; European Union WEEE (recast) Directive 2012/19/EU;...

  • Page 7: Quick Setup Guide

    QUICK SETUP GUIDE Congratulations on your purchase of JBL Professional IRX115s loudspeakers! We know you are anxious to get up and running as fast as possible, which is why you are reading this section. The following will help you get set up as soon as possible. Packaging Contents Your IRX115s system should include the following: 1 x IRX115s speaker...

  • Page 8: Back Panel

    BACK PANEL Power Button Master Volume Crossover Frequency Polarity Button XLR- 1/4” Combo Inputs XLR Male Loop Thru Power Receptacle POWER ON THE UNIT PLUG IN THE INPUTS Turn the Master Volume (D) all the way to the left before connecting any inputs.
  • Page 9 BACK PANEL A. Power Button Press the Power Button to engage power. B. Crossover Frequency Select the frequency you wish by pressing the Crossover Frequency Button (B). Choose crossover frequency EQ from one type to another type (cycling) by repeatedly pressing the Crossover Frequency Button (B). C.

  • Page 10: Overview - Irx115S

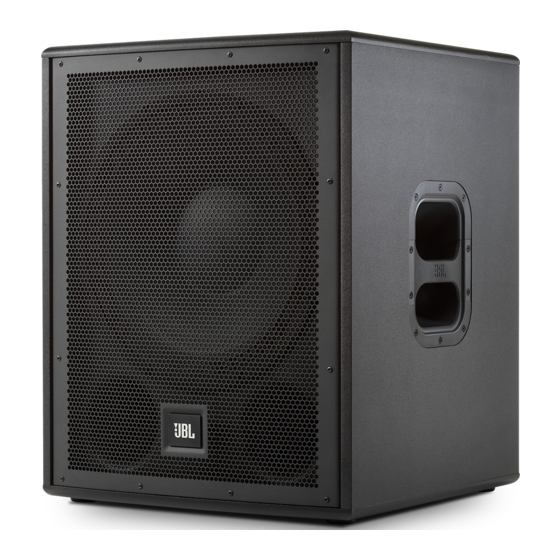

    • 128dB Thank you for purchase of the JBL IRX115S Powered Subwoofer The IRX115S is the perfect pairing for the IRX108BT or IRX112BT powered loud speakers. The IRX115S draws from JBL’s top professional touring technologies to deliver superior sound without the guesswork, thanks to custom driver and amplifier designs, a tuned, ported enclosure and built-in crossover and polarity settings.

  • Page 11: Irx115S - Block Diagram

    IRX115S - BLOCK DIAGRAM...

  • Page 12: Irx115S Specifications

    IRX115S SPECIFICATIONS TECHNICAL SPECIFICATIONS Freq Response (-3db) 45Hz - 103Hz req Response (-10db) 35Hz - 147Hz Wattage 1300W Woofer Size 15” Crossover Freq 80, 100, 120 Published (SPL) 128db 2 XLR combo, 2 XLR out Cabinet Weight 34.5 kg / 76lbs Pole Mount Top View Front View...

  • Page 13: Applications / Features

    APPLICATIONS / FEATURES MUSICIANS/PERFORMERS Musicians and performers looking for a great-sounding, easy-to-use sound reinforcement speaker in a portable, affordable package. HOSPITALITY/GOVERNMENT INSTALLATIONS Hospitality/government installations requiring professional sound quality with ease of use and minimal setup time. FEATURES • Powerful 15” woofer with 3” voicecoil generates smooth, detailed, deep LF response •...

  • Page 14: Loudspeaker Placement And Suspension

    LOUDSPEAKER PLACEMENT AND SUSPENSION Floor Standing Subwoofer Mounted The following guidelines will help you achieve optimum sound wherever you use your IRX115s loudspeaker: ® Raise the speakers as high as possible. For best results try to get the high frequency horn at least 2 to 4 feet above the heads of the audience. If the speakers are too low, the people in the back of the audience will not receive the best quality sound.

  • Page 15: Cables & Connectors

    CABLES & CONNECTORS The standard cable for interconnection of microphone and XLR/F to XLR/M Microphone Cable line level signal in professional audio systems. • Microphone to mixer For connecting balanced devices with 1/4 inch phone and TRS (balanced) 1/4 inch phone jack to XLR/M maybe used interchangeably.

  • Page 16: Application Examples

    APPLICATION EXAMPLES SMALL PA USING XLR AND BLUETOOTH INPUTS AND THRU FUNCTION CH1 XLR-1/4” Combo and wirelss Bluetooth input to XLR-1/4” Thru...
  • Page 17 APPLICATION EXAMPLES SMALL PA USING TWO SYSTEMS AS MONITORS WITH SHARED THRU FUNCTION PA1 and PA2 CH1 XLR-1/4” Combo inputs pass Thru to Sub...
  • Page 18 APPLICATION EXAMPLES SMALL PA USING TWO SYSTEMS AS MONITORS USING THRU FUNCTIONS PA1 and PA2 CH1 XLR-1/4” Combo inputs pass Thru to individual Subs...

  • Page 19: Trouble Shooting

    TROUBLE SHOOTING Symptom Likely Cause What to do Speaker not connected Verify that speaker is connected and that the circuit is on to active AC power No sound Power not switched on Switch on power and verify that power LED is on Speaker in bypass mode Twist any knob or press the bypass button to wake the speaker.

  • Page 20: Warranty Information

    WARRANTY INFORMATION The JBL Limited Warranty on professional loudspeaker products (except for enclosures) remains in effect for five years from the date of the first consumer purchase. JBL amplifiers are warranted for three years from thedate of original purchase. Enclosures and all other JBL products are warranted for two years from the date of original purchase.

  • Page 21: Contact Information

    CONTACT INFORMATION Mailing Address: JBL Professional 8500 Balboa Blvd. Northridge, CA 91329 Shipping Address: JBL Professional 8500 Balboa Blvd., Dock 15 Northridge, CA 91329 (Do not return product to this address without first obtaining prior authorization from JBL) Customer Service: Monday through Friday 8:00am -5:00pm Pacific Coast Time in the U.S.A.
  • Page 22 09/20 8500 Balboa Boulevard Northridge, CA 91329 USA www.jblpro.com...
