Assembly - Hanging the Fan (continued)
7

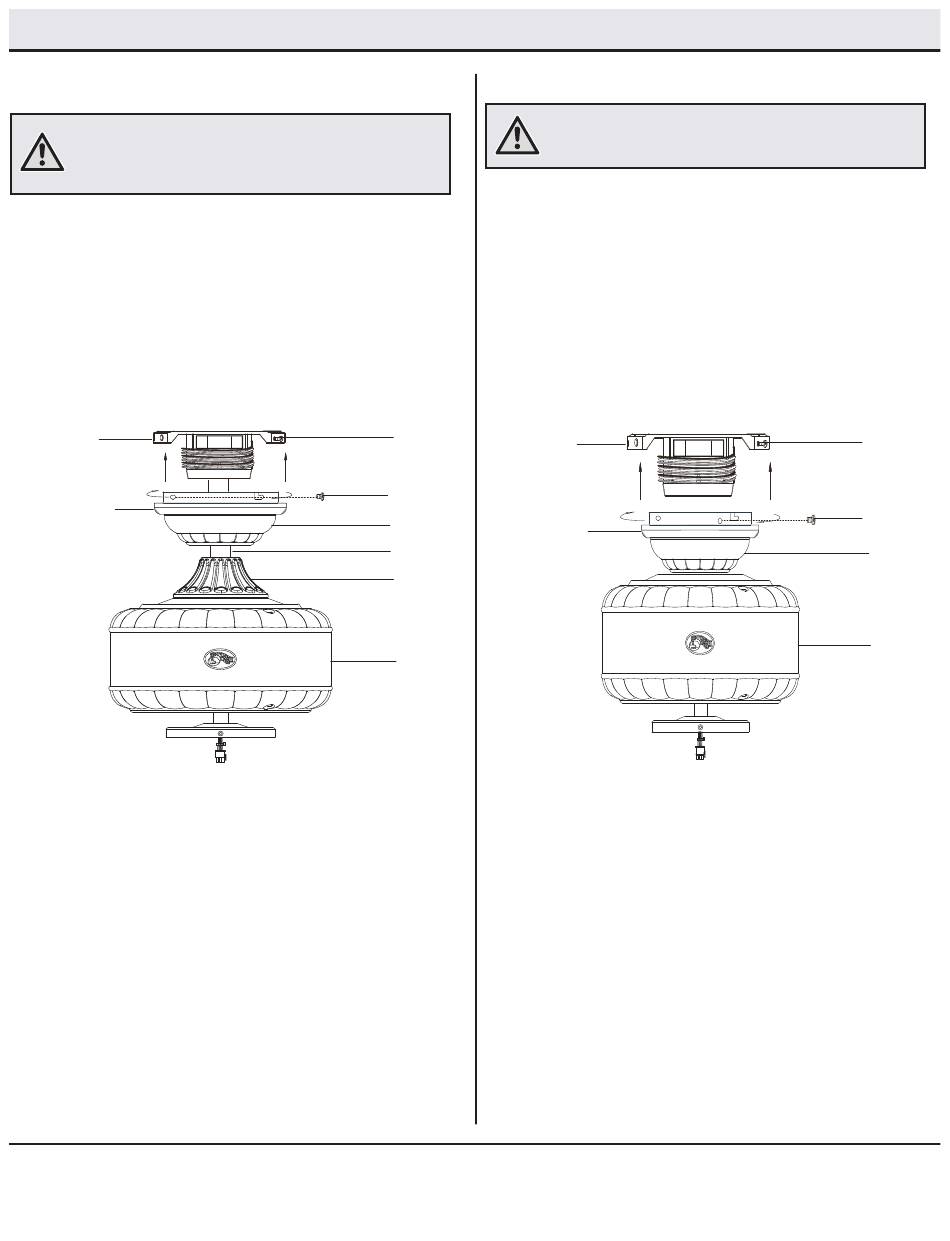

Mounting the fan - standard
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the mounting bracket must rest in
the groove of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
□
Align the locking slots of the ceiling canopy (C) with the two
screws (II) in the mounting bracket (A). Push up to engage the
slots, and turn clockwise to lock the canopy (C) in place.
□
Firmly tighten the two mounting screws (II).
□
Install the remaining two mounting screws (JJ) into the holes
in the canopy (C) and tighten firmly.
□
Install the decorative canopy ring (KK) by aligning the ring's
slots with the screws in the canopy (C). Rotate the canopy
ring (KK) clockwise to lock it in place.
A
KK
Mounting the fan close-to-ceiling
WARNING: The locking slots of the ceiling canopy are provided only
as an aid to mounting. Do not leave the fan assembly unattended
until all four canopy screws are engaged and firmly tightened.
□
Carefully unhook the fan from the mounting bracket (A) and
align the locking slots of the ceiling canopy (C) with the two
screws (II) in the mounting bracket (A). Push up to engage
the slots and turn clockwise to lock the canopy (C) in place.
Immediately tighten the two mounting screws (II) firmly.
□
Install the remaining two mounting screws (JJ) into the holes
in the canopy (C) and tighten firmly.
□
Install the decorative canopy ring (KK) by aligning the ring's
slots with the screws in the canopy (C). Rotate the canopy
ring (KK) clockwise to lock it in place.
II
A
JJ
C
KK
B
D
E
11
