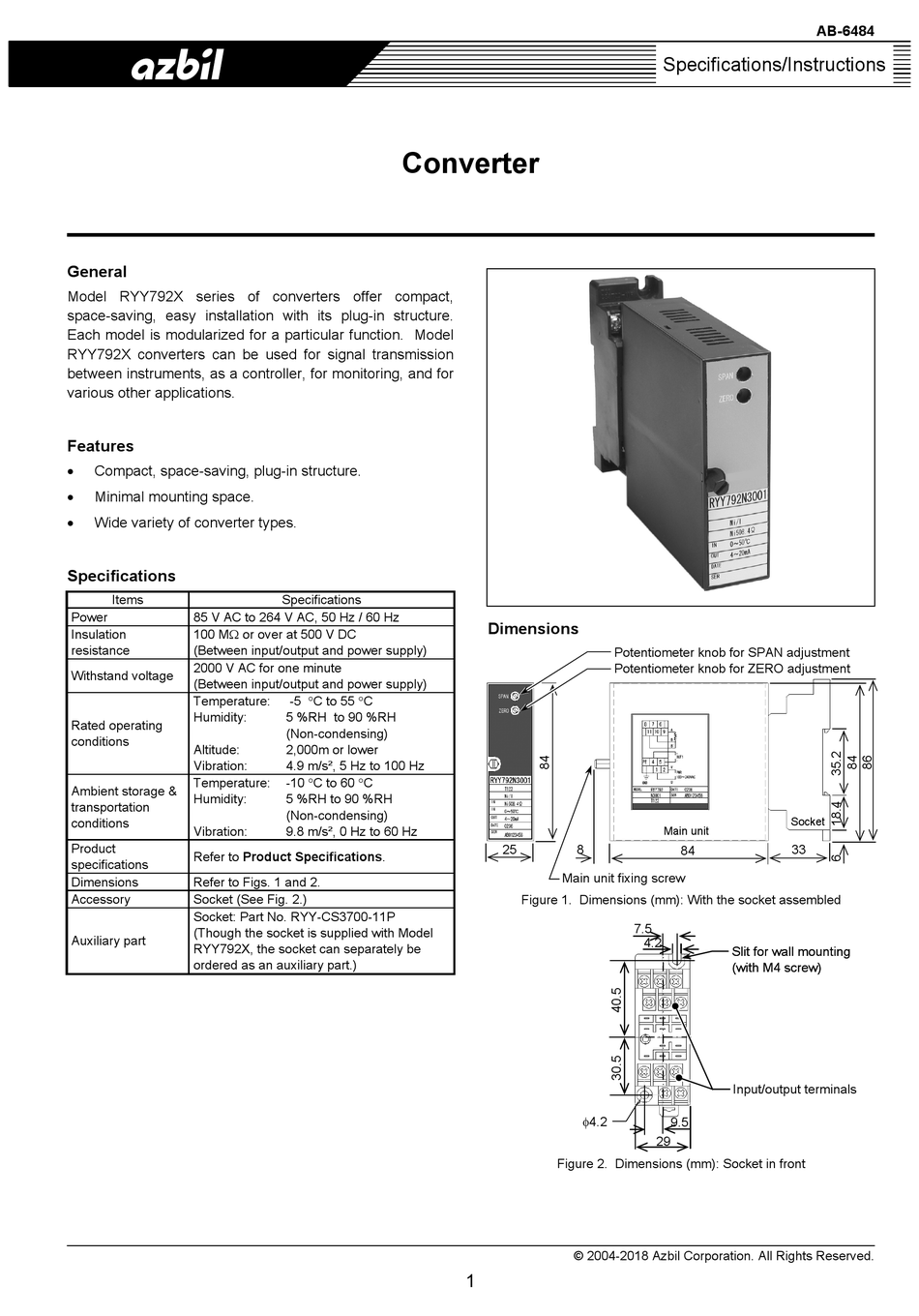

Azbil RYY792 Series Specifications And Instructions

General

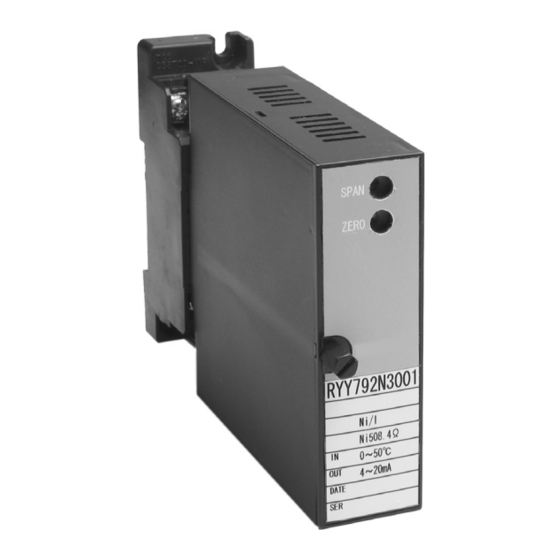

Model RYY792X series of converters offer compact,
space-saving, easy installation with its plug-in structure.
Each model is modularized for a particular function. Model
RYY792X converters can be used for signal transmission
between instruments, as a controller, for monitoring, and for
various other applications.
Features

Compact, space-saving, plug-in structure.

Minimal mounting space.

Wide variety of converter types.
Specifications
Items
Power 85 V AC to 264 V AC, 50 Hz / 60 Hz
Insulation 100 M or over at 500 V DC
resistance (Between input/output and power supply)
2000 V AC for one minute
Withstand voltage
(Between input/output and power supply)
Temperature:
Humidity:
Rated operating
conditions
Altitude:
Vibration:
Temperature:
Ambient storage &
Humidity:
transportation
conditions
Vibration:
Product
Refer to Product Specifications.
specifications
Dimensions Refer to Figs. 1 and 2.
Accessory Socket (See Fig. 2.)
Socket: Part No. RYY-CS3700-11P
(Though the socket is supplied with Model
Auxiliary part
RYY792X, the socket can separately be
ordered as an auxiliary part.)
Converter
Specifications
-5 C to 55 C
5 %RH to 90 %RH
(Non-condensing)
2,000m or lower
4.9 m/s², 5 Hz to 100 Hz
-10 C to 60 C
5 %RH to 90 %RH
(Non-condensing)
9.8 m/s², 0 Hz to 60 Hz
Dimensions
Potentiometer knob for SPAN adjustment
Potentiometer knob for ZERO adjustment
25 8
Main unit fixing screw
Figure 1. Dimensions (mm): With the socket assembled
7.5
4.2
Figure 2. Dimensions (mm): Socket in front
© 2004-2018 Azbil Corporation. All Rights Reserved.
1
AB-6484
Specifications/Instructions
Socket
Main unit
33
84
4.2
Slit for wall mounting Slit for wall mounting
(with M4 screw) (with M4 screw)
Input/output terminals
9.5
29
