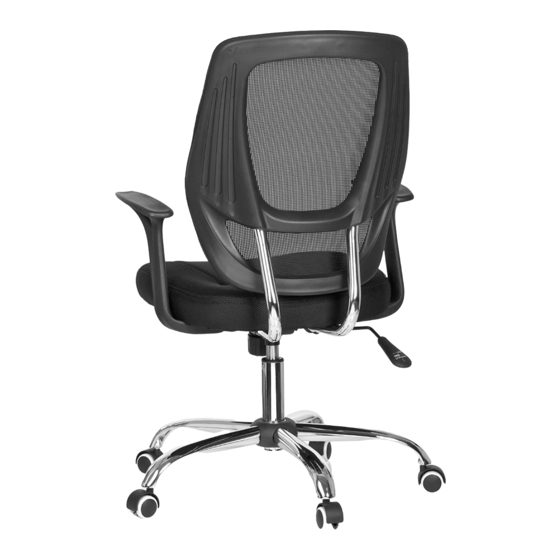

HJH office AVIDO NET Assembly Instructions

HJH office AVIDO NET Assembly Instructions

Advertisement

Aufbau
1 Befestigen Sie die Armlehnen am Sitzteil.
2 Befestigen Sie die Mechanik am Sitzteil.
3 Montieren Sie die Rückenlehne am Sitz.
4 Drücken Sie je eine Stuhlrolle in die fünf
Öffnungen des Fußkreuzes. Stecken Sie die
Gasfeder mittig in das Fußkreuz.
Entfernen Sie (falls vorhanden) vor dem
Einbau die Schutzkappe vom Auslösepin der
Gasfeder. Diese lässt sich leicht entfernen.
5 Stecken Sie das Sitzteil auf die Gasdruckfe-
der und setzen Sie sich nun mehrmals auf
den Stuhl, damit die Verbindung zwischen
Sitz, Gasfeder und Fuß gefestigt wird. An-
schließend können Sie die Gasfeder bedie-
nen und die Stuhlhöhe individuell einstellen.
6 Befestigen Sie die Kopfstütze an der Rücken-
lehne.
A
Schraube 6x18mm
B
Schraube 6x40mm
C
Schraube 6x45mm
D
Beilagscheibe
E
Fußkreuz
F
Rolle
G
Gasdruckfeder
H
Mechanik
I
Sitzteil
J
Armlehne
K
Rückenlehne
M
Inbusschlüssel

Assembly

1 Mount the armrests onto the seat.
2 Mount the mechanism onto the seat.
3 Fix the backrest onto the seat.
4 Insert the five castors into designated holes
at the bottom of the 5-star base. Insert the
gaslift into the center of the base.
If present, remove the plastic protective cap
from the gas lift.
5 Place the seat onto the gaslift and repeated-
ly sit onto the chair, so that the connections
between the seat, gaslift and foot tighten.
Now you can adjust the chair to your indivi-
dual needs.
6 Fix the headrest to the backrest.
screw 6x18mm
6x
screw 6x40mm
6x
screw 6x45mm
4x
washer
6x
base
1x
castor
5x
gaslift
1x
mechanism
1x
seat
1x
armrest
2x
backrest
1x
allen wrench
1x
AVIDO NET
Aufbauanleitung
Assembly instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVIDO NET and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HJH office AVIDO NET

  • Page 1 If present, remove the plastic protective cap Einbau die Schutzkappe vom Auslösepin der from the gas lift. AVIDO NET Gasfeder. Diese lässt sich leicht entfernen. 5 Place the seat onto the gaslift and repeated- 5 Stecken Sie das Sitzteil auf die Gasdruckfe-...
  • Page 2 Hinweis / Remark Packen Sie zunächst alle Teile der Lieferung aus und prüfen Sie diese auf eventuelle Transportschäden. Um einen leichten Aufbau zu ge- währleisten, empfehlen wir alle Schrauben nur leicht anzuziehen. Erst nachdem alle Schrauben in das jeweilige Gewinde eingeführt wurden sollten diese fest angezogen werden.
