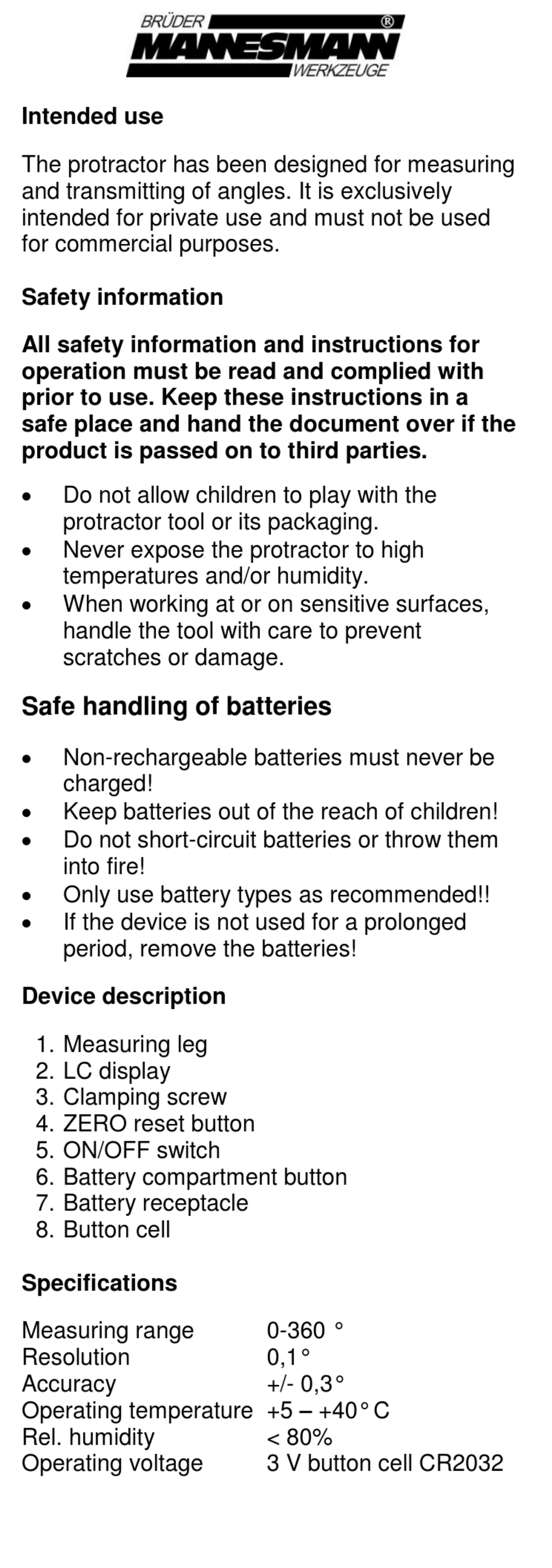

Mannesmann M81220 Manual

Intended use
The protractor has been designed for measuring
and transmitting of angles. It is exclusively
intended for private use and must not be used
for commercial purposes.
Safety information
All safety information and instructions for
operation must be read and complied with
prior to use. Keep these instructions in a
safe place and hand the document over if the
product is passed on to third parties.

Do not allow children to play with the
protractor tool or its packaging.

Never expose the protractor to high
temperatures and/or humidity.

When working at or on sensitive surfaces,
handle the tool with care to prevent
scratches or damage.
Safe handling of batteries

Non-rechargeable batteries must never be
charged!

Keep batteries out of the reach of children!

Do not short-circuit batteries or throw them
into fire!

Only use battery types as recommended!!

If the device is not used for a prolonged
period, remove the batteries!

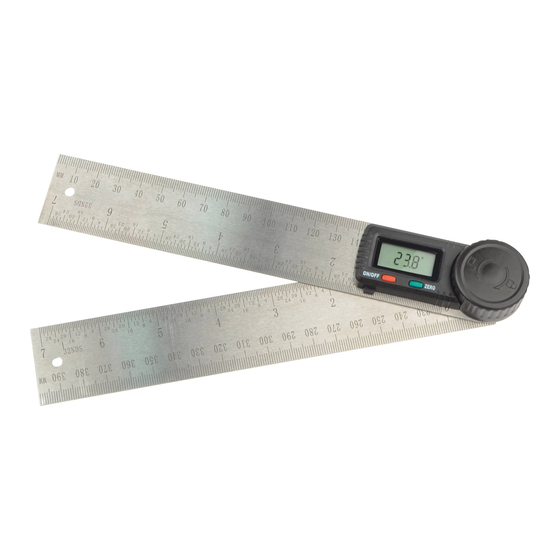

Device description
1. Measuring leg
2. LC display
3. Clamping screw
4. ZERO reset button
5. ON/OFF switch
6. Battery compartment button
7. Battery receptacle
8. Button cell
Specifications
Measuring range
Resolution
Accuracy
Operating temperature +5 – +40° C
Rel. humidity
Operating voltage
0-360 °
0,1°
+/- 0,3°
< 80%
3 V button cell CR2032
