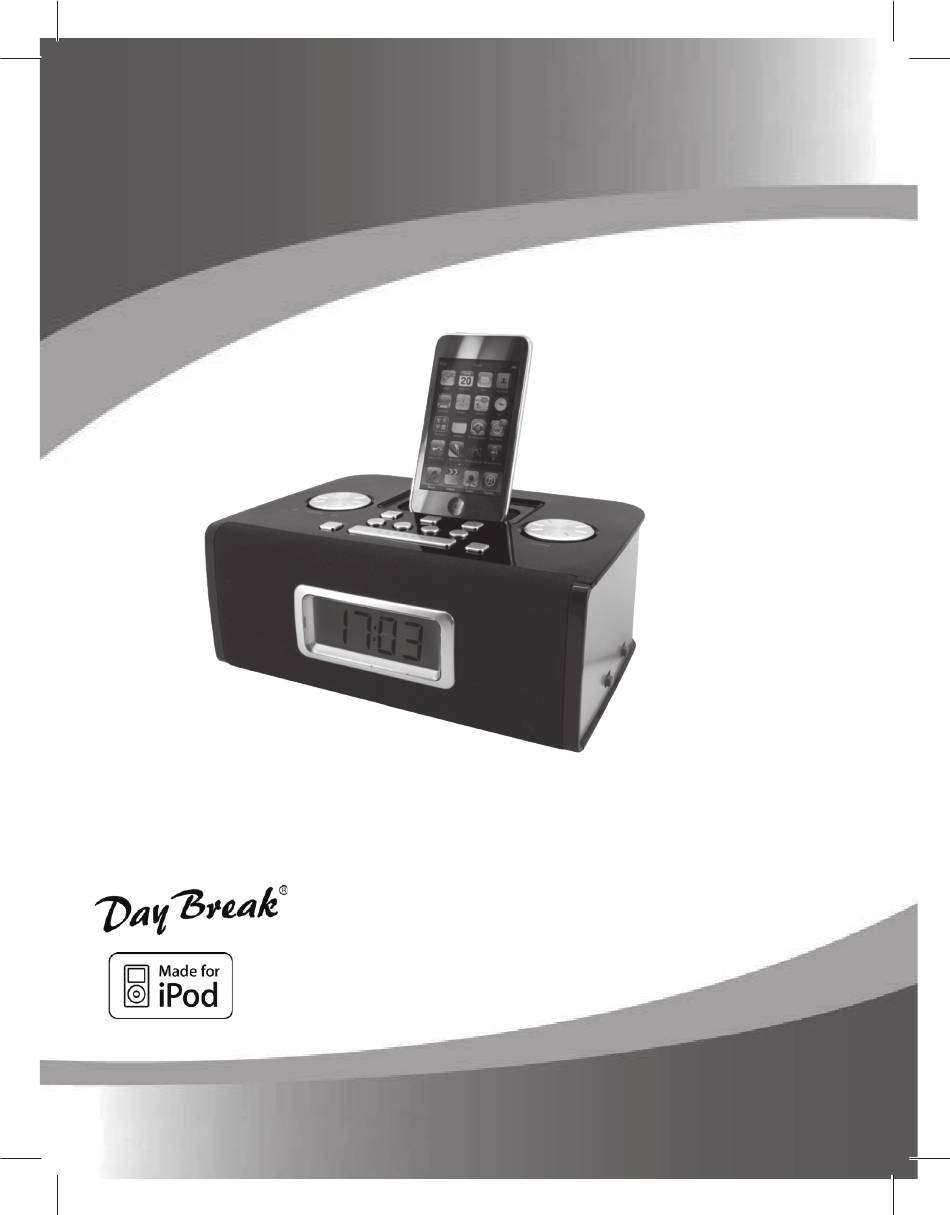

- Page 1 Abgebildeter iPod nicht inkl. iPod not included DEUTSCH NEDERLANDS ENGLISH ESPAÑOL FRANÇAIS iP 1040...
-
Page 2: Location Of Controls
ENGLISH LOCATION OF CONTROLS 1. Minute / button 12. On/Off button 2. Time set button 13. Sleep button 3. iPod compartment 14. Tuning knob 15. FM antenna wire 4. Play/ Pause button 5. Alarm set button 16. Line in jack 6. -
Page 3: Preparation For Use
PREPARATION FOR USE ® This unit is designed specifically to work with your iPod . Please read this instruction book carefully before operating the unit. POWER CONNECTION Plug the AC power cord to a household mains outlet source. This unit is equipped with a battery back up system, it requires a “AAA”... - Page 4 LOCATION OF REMOTE CONTROLS 1. On/Off button 2. Function button 3. Skip back button 4. iPod play/pause button 5. Repeat button 6. Skip forward button Repeat function: ipod touch - no support ipod classic - no support...
- Page 5 Setting the correct time 1. With the Radio Off, press and hold the TIME SET button (2). 2. Press the Hour button (6) to advance hour, press MINUTE button (1) until the correct time is displayed. 3. Release the TIME SET button. Setting the wake up time 1.
- Page 6 Listening to the radio 1. Press the ON/OFF button (12) to turn the radio ON. 2. Press the Function button (9) to the radio position. 3. Set the Band switch (21) to the desired band (FM or AM). 4. Turn the TUNING knob (14) until the desired station is heard. 5.
- Page 7 Sleep function 1. This function enables you to go to sleep listening to the Radio. 2. Set the Radio ON/OFF button (12) to OFF. 3. Press the SLEEP button (13), the clock display will show 90 minutes. The radio turns on and will turn off automatically after 90 minutes. 4.
-
Page 8: Troubleshooting
TROUBLESHOOTING Symptom Possible Problem Solution No Power Power cord disconnected Connect power cord into a wall outlet. ® ® iPod does not Using no or wrong iPod insert Make sure the dock insert fit ® dock properly your iPod ® ®... - Page 9 SEPCIFICATIONS Frequency range : AM 531 – 1620 kHz FM 87.5 – 108 MHz Power Source : AC 230V ~ 50 Hz, 15W Battery back-up : 3V (2 x 1.5V UM4 AAA battery -not included) WARNING 1. No naked flame sources, such as lighted candles, should be placed on the apparatus.
- Page 10 CAUTION Danger of explosion if battery is incorrectly replaced Replace only with the same or equivatent type Line in The Line in jack can be used to playback alternate audio signal sources on the unit speakers. This line in jack requires a 3.5mm audio cable for input signal. Note : The 3.5mm audio cable is not included If the electric cable is damaged, it must be replaced by the manufacturer, or by the qualification persons, in order to avoid a danger.
- Page 11 Excessive sound pressure from earphones and headphones can cause hearing loss. The marking information is located at the bottom of apparatus. Disposal of old electrical appliances The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream.
