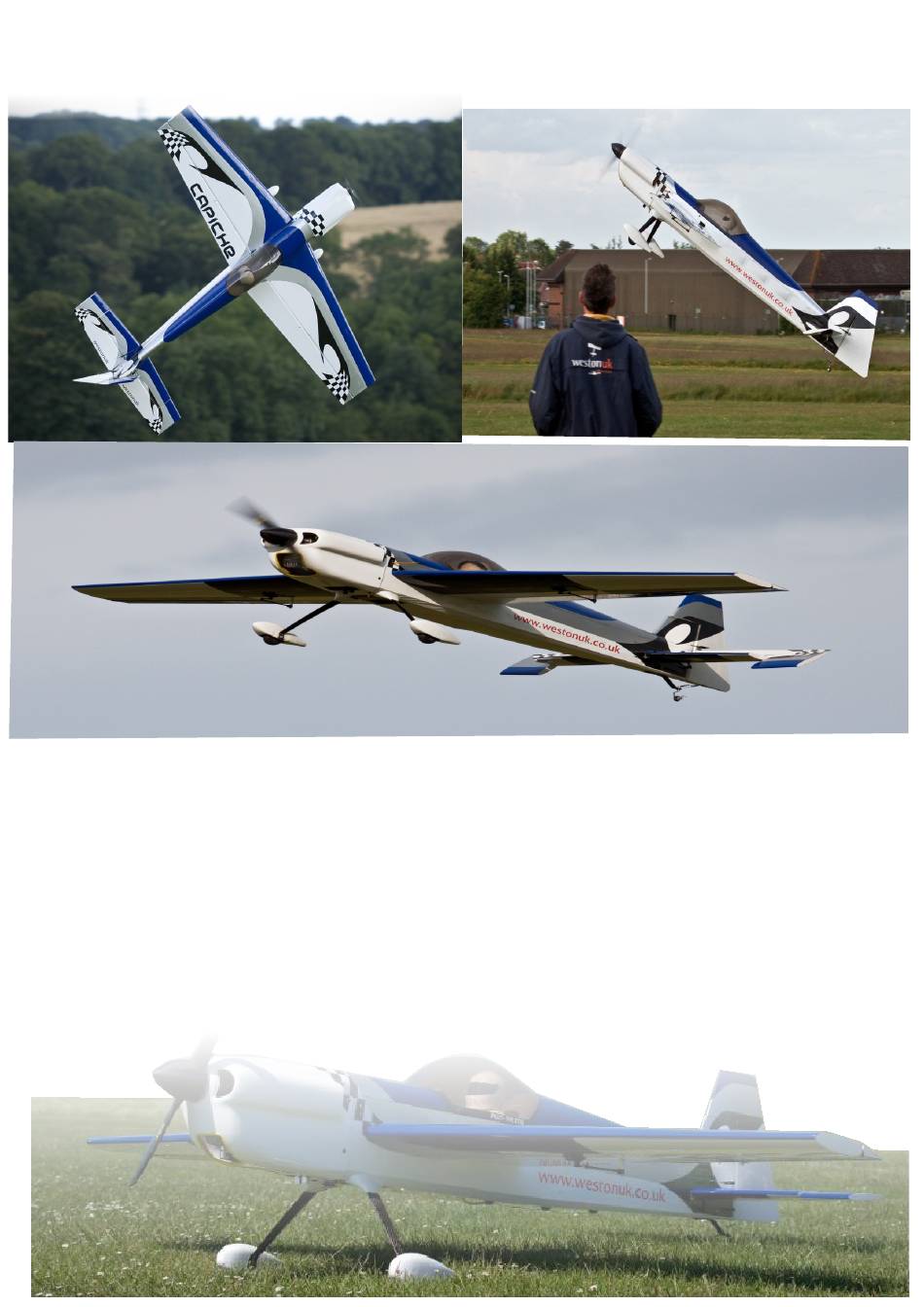

CAPICHE 50CC
The latest in Weston UK`s range of high performance ARTF kits
to provide the ultimate in freestyle and 3D performance.
READ THE INSTRUCTIONS FULLY BEFORE COMMENCING!
IF UNSURE ABOUT ANY STAGE OF ASSEMBLY PLEASE CONTACT
WESTON UK.
MATERIALS REQUIRED FOR COMPLETION:
MOTOR (DLE/DLA/DA 50CC)
CYANO
GOOD QUALITY TOOLS AND A VERY SHARP BLADE
WE RECOMMEND HITEC RADIO EQUIPMENT AS USED BY WESTON UK DISPLAY TEAM.
RECOMMENDED SERVOS:
THROTTLE:1X HS645MG
2X ELEVATOR HS-7955TG 2X AILERONS:HS-5625MG
1X RUDDER: HS-7955TG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAPICHE 50CC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weston UK CAPICHE 50CC

Summary of Contents for Weston UK CAPICHE 50CC

  • Page 1 MATERIALS REQUIRED FOR COMPLETION: MOTOR (DLE/DLA/DA 50CC) CYANO GOOD QUALITY TOOLS AND A VERY SHARP BLADE WE RECOMMEND HITEC RADIO EQUIPMENT AS USED BY WESTON UK DISPLAY TEAM. RECOMMENDED SERVOS: THROTTLE:1X HS645MG 2X ELEVATOR HS-7955TG 2X AILERONS:HS-5625MG 1X RUDDER: HS-7955TG...
  • Page 2 PARTS LIST 2 X AILERONS 1 X ENGINE COWL 1 X FUSELAGE 1 X CANOPY 2 X TAIL PLANE 2 X ELEVATORS BAG 11 1 X RUDDER 28X PIN HINGES 2 X WINGS 2 X WING RETAINER BOLTS(PLASTIC) 1 X CLEVIS 1 X SWING KEEPER BAG 1 TAIL WHEEL ASSEMBLY...
  • Page 3 Ensure once assembled there are no gaps and no binding. If any glue has set in the hinges this will cause excessive resistance for the servo. This can be removed with Cyano Wipe available from Weston uk. REPEAT PROCESS ON OTHER WING...
  • Page 4 Using the control horns as a guide mark out the hardwood points in the control surfaces and drill to accept the control horn bolts. Please ensure that the hole you drill has sufficient hard wood area is around it and not too close to the edge. Then with the supplied carbon tube of 4mm ID cut to length with a razor saw or cutting disk as per pic with angled ends to sit at the same angle as the control surface...
  • Page 5 insert the pin hinges into the rudder and repeat procedure as per the ailerons. Ensure when inserted there is no binding. ELEVATOR STABS Insert the pin hinges into the stab as per the ailerons and repeat procedure. Insert the rear spars into the fuselage and attach the stabs to the fuselage and bolt into position as per pictures using the 12.5mm bolts and small washers.

  • Page 6: Elevator Control Horn Installation

    Using the control horns as a guide mark out the hardwood points in the control surfaces and drill to accept the control horn studding ensuring that when they are assembled the pivot point is directly over the hinge line. Connection point over the hinge line ELEVATOR CONTROL HORN INSTALLATION Install the control rods as per the picture.

  • Page 7: Servo Installation

    TAIL WHEEL INSTALLATION Using the allen key self tappers install the tail wheel assembly so that the pivot point of the wheel is over the rudder hinge line. Then using the springs and aluminium ferrule terminate the steering springs to the wheel and the steering plate and then with even tension attach the steering plate to the rudder with the self tappers.

  • Page 8: Rudder Servo

    Install the servos with the output arms forward most. The lower elevator servo (stbd side) is for the port elevator control and the upper servo is for the stbd elevator. PORT AND STBD ELEVATOR SERVOS Pass the closed loop wire through the fuselage from the elevator outlet point to the servo arm.

  • Page 9: Throttle Servo

    The fuel tank is ready to install but is only supplied with a normal clunk and not a felt clunk which is more advisable and available from Weston UK( PT NO. 1121). Install the tank into the tank frame in the fuselage. When the tank has been installed secure into place with tie wraps and pack with foam to prevent vibration .
  • Page 10 SWITCH INSTALLATION Install your receiver switch in the pre-cut slot in the side of the fuselage. It`s always a good idea to install the switch so that the on position is to the rear. There is option for a large s/w harness or standard size. RECEIVER INSTALLATION The receiver should be installed with all leads and crystals secured into place by means of tape and foam to prevent any migration due to vibration.

  • Page 11: Applying The Decals

    Applying the decals Transparent film Using the transparent film remove the backing and lay over the letters. Slowly peel and remove the letters from the backing and place into position on the aircraft. Press in place and remove transparent film.
