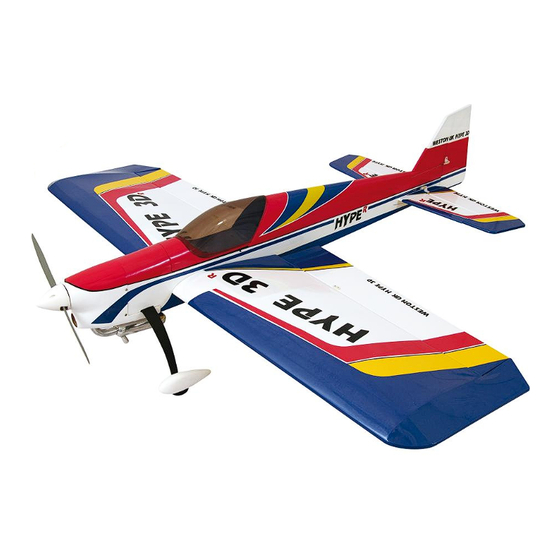

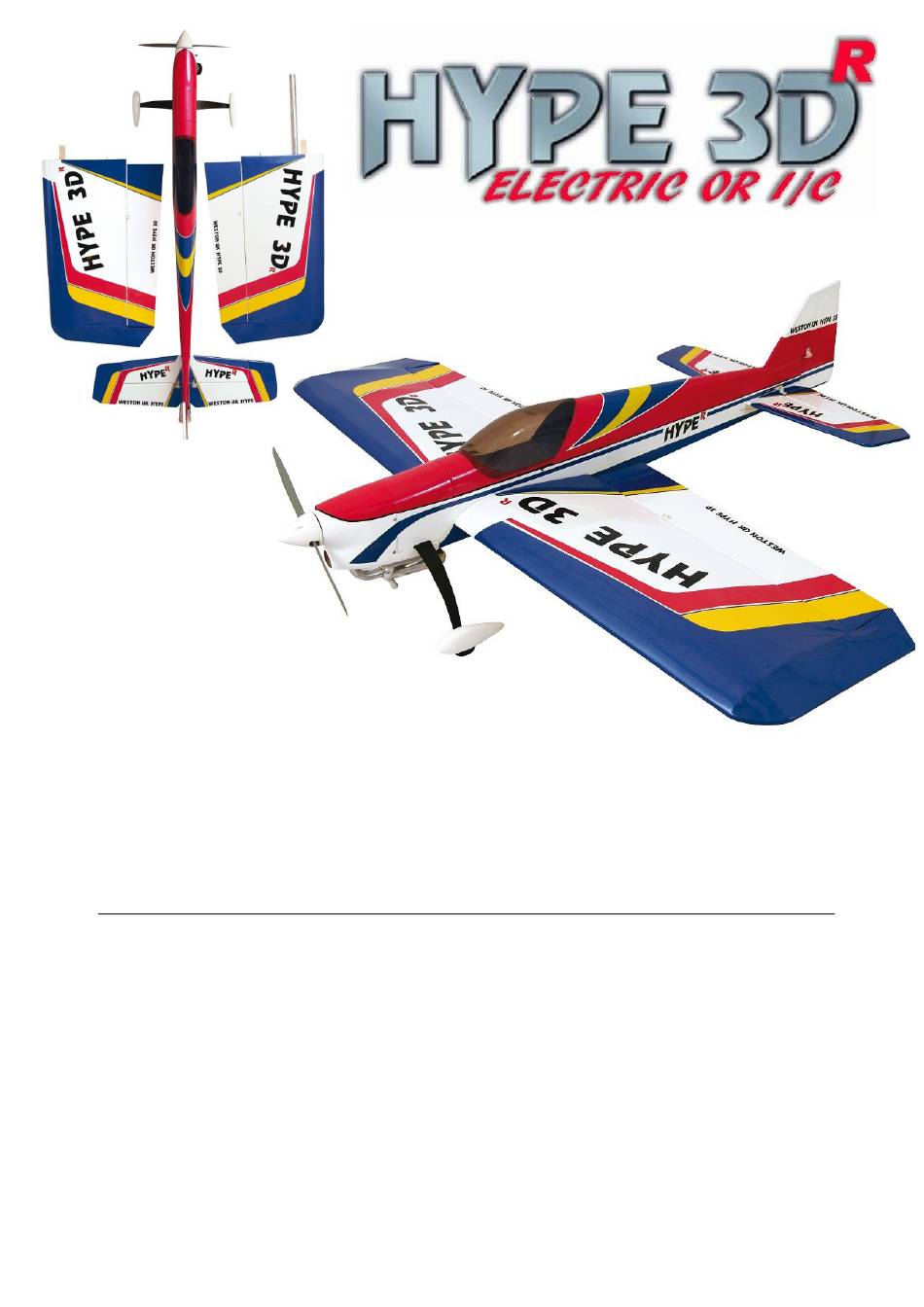

The latest in Weston UK's range of high performance ARTF kits to
provide the ultimate in freestyle and 3D performance.
READ THE INSTRUCTIONS FULLY BEFORE COMMENCING!
IF UNSURE ABOUT ANY STAGE OF ASSEMBLY PLEASE CONTACT WESTON UK.
MATERIALS REQUIRED FOR COMPLETION:
Motor (.52 size 2 stroke) recommended motor West Eurotech 52T1 + Genesis pipe
APC 13x4w / 12 1/4 x 3 3/4 Prop
4 stroke engine .80-90 (Tuned By West)
Electric West 590kv motor, West 85A bec control, APC 16x8E
4cell or 5 cell 3700/4700ma lipo
Weston UK thin, thick Cyano
Good quality tools and a very sharp blade.
WE RECOMMEND HITEC RADIO EQUIPMENT AS USED BY
THE WESTON UK DISPLAY TEAM.
Recommended servos:
Throttle HS 311
Elevator, Ailerons HS 5625MG
Rudder HS 5625MG
www.westonuk.co.uk
Advertisement
Related Manuals for Weston UK Hype 3D R
Summary of Contents for Weston UK Hype 3D R
- Page 1 The latest in Weston UK's range of high performance ARTF kits to provide the ultimate in freestyle and 3D performance. READ THE INSTRUCTIONS FULLY BEFORE COMMENCING! IF UNSURE ABOUT ANY STAGE OF ASSEMBLY PLEASE CONTACT WESTON UK. MATERIALS REQUIRED FOR COMPLETION: Motor (.52 size 2 stroke) recommended motor West Eurotech 52T1 + Genesis pipe...
-
Page 2: Kit Contents
KIT CONTENTS BAG 1 BAG 2 BAG 3 1 x MOTOR BOX 2 X ENGINE MOUNTS 2 X WHEELS 4 X WASHERS 4 X 3MM X 20MM BOLTS 4 X 4MM X 60MM BOLTS 8 X WASHERS 4 X 3MM NYLOCKS 4 X 3MM X 25MM BOLTS BAG 7 BAG 6... - Page 3 Repeat procedure on other aileron. Ensure once assembled there are no gaps and no binding If any glue has run down the wing or aileron this can be removed with Cyano Wipe available from Weston uk. ATTENTION!!!!!!! PLEASE RUN THIN CYANO INTO...
- Page 4 AILERON SERVOS Install a small draw wire through the wing section very carefully ensuring you do not catch any ribs and draw the servo cable through the wing section to the exit point in the centre of the wing. Install the servo so the output arm is to the leading edge of the wing and screw into position.
-
Page 5: Elevator Servo
UNDERCARRIAGE/SPATS Insert 4mm bolt through the recessed side of the wheel then screw nylock nut onto bolt so that the bolt begins to make the thread into the nylon section of the nut. Once this is achieved take the nut back off the axle and turn it round so the nylon part of the nut goes onto the axle first. - Page 6 IC MOTOR INSTALATION MOTOR Using the supplied bolts, nuts and washers attach the engine mount to the firewall via the capture nuts pre installed as per picture. Mount your chosen motor (West 52T1 recommended) to the supplied mount ensuring that when you fit the cowling the prop drive protrudes past the cowling.
- Page 7 THROTTLE SERVO AND PUSH ROD Slide the throttle guide tube through the firewall and down the side of the tank into the servo bay area. Allow about 10mm to protrude forward of the firewall. Once in position glue the outer guide tube to the firewall point and support. Install clevis on the threaded end of the throttle control rod and install into tube.
- Page 8 ELECTRIC MOTOR INSTALATION Before installing the electric motor box we recommend running medium or thick cyano around the inside of the motor box to ensure good security. The holes are pre-drilled for our west 590kv motor and mount so you may have to adjust if you are using something else.
- Page 9 We trust you will have many happy hours of flying this model!! Weston UK, 84-88 London Rd, Teynham, Sittingbourne, Kent Me9 9QH, England Tel: +44(0)1795 521030 Fax or Tel: +44(0)1795 522020, E- mail alan@westonuk...
